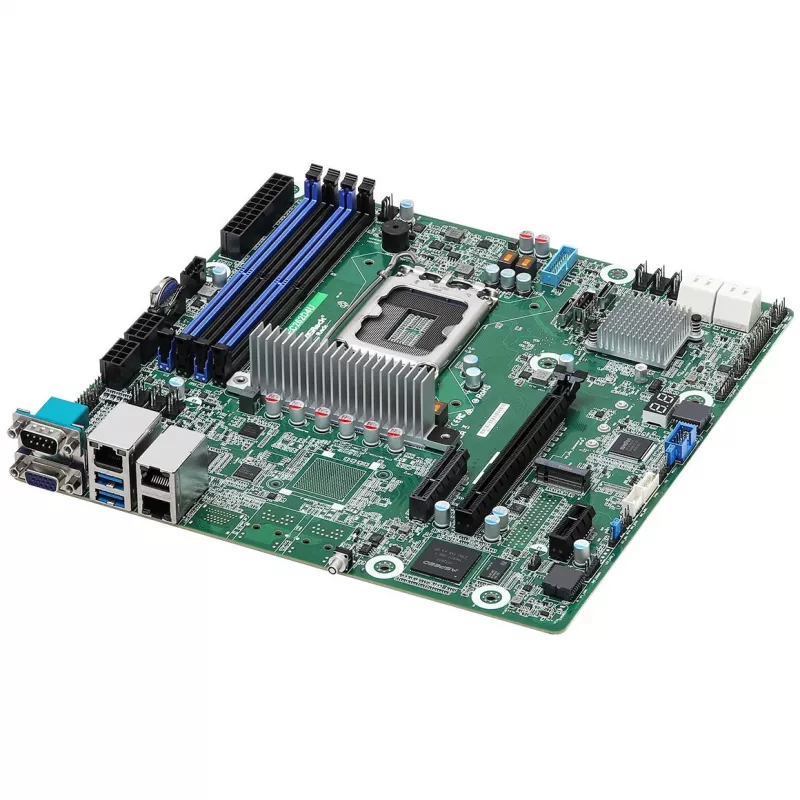

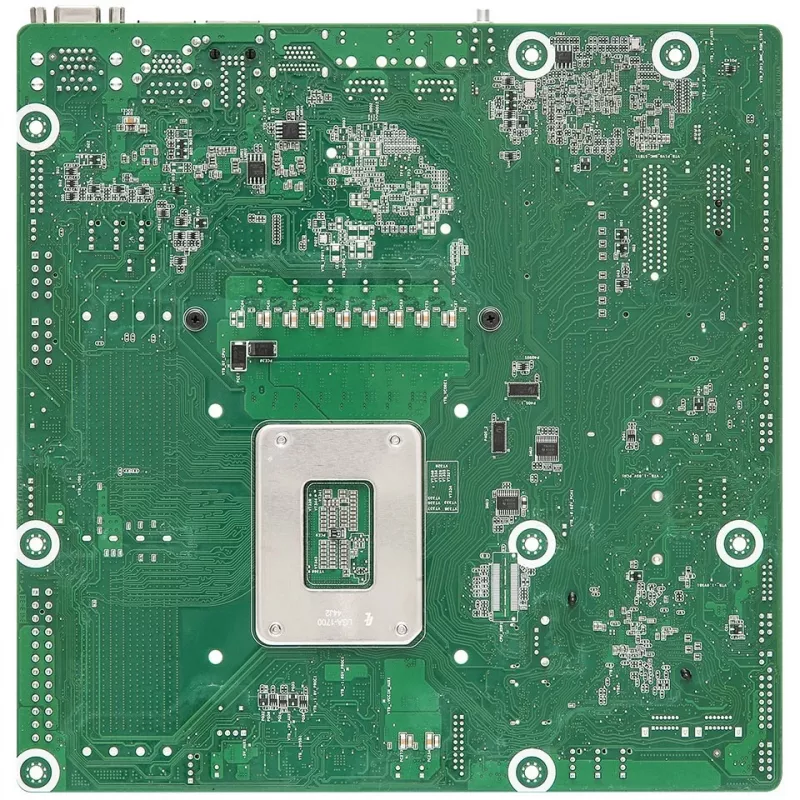

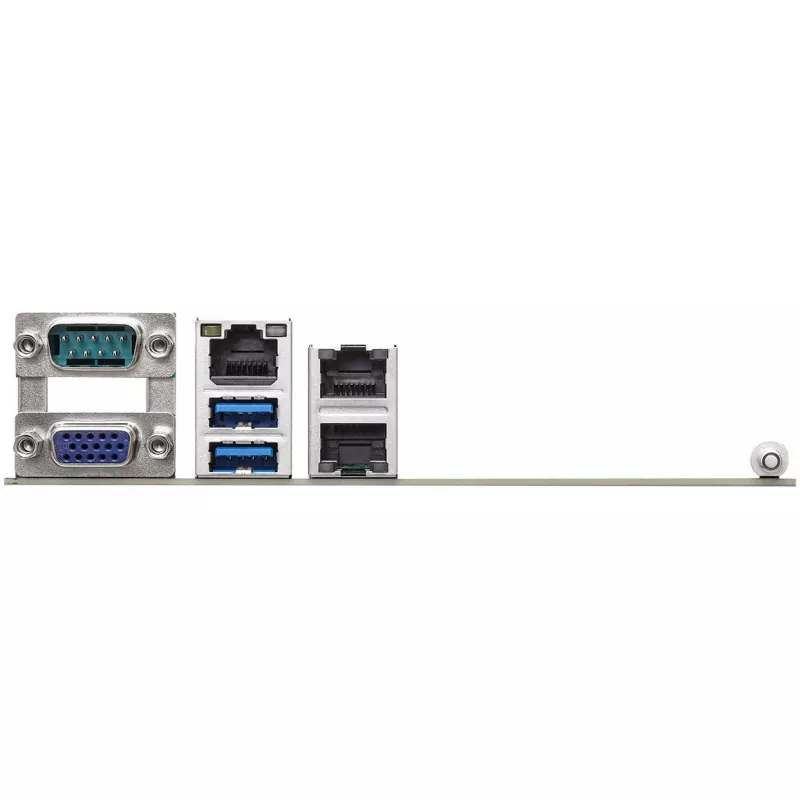

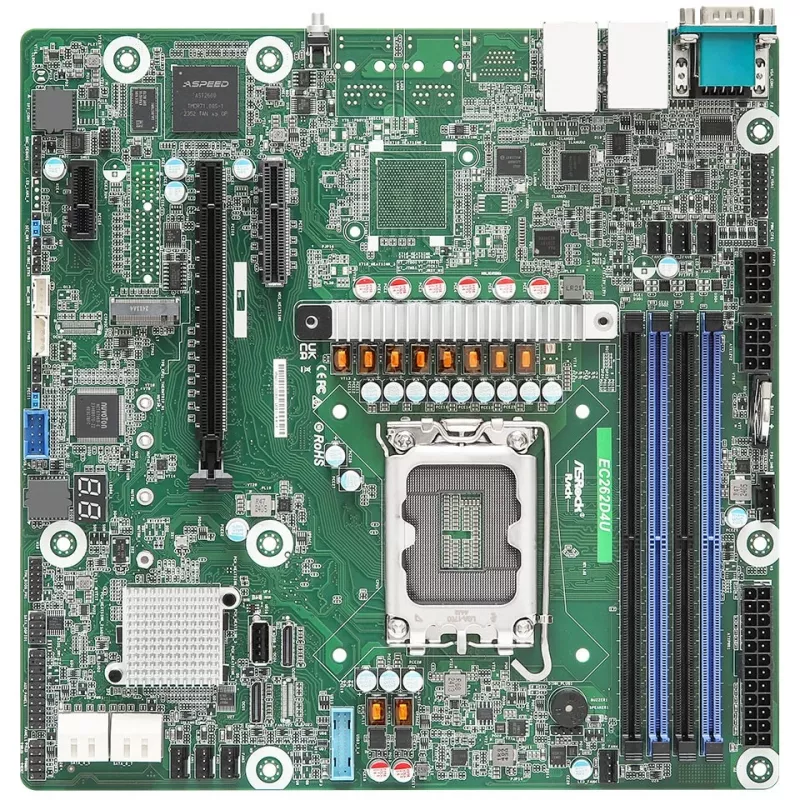

Scheda madre ASRock EC262D4U Intel C262 LGA 1700 micro ATX, 4× DDR5 DIMM, 8× SATA III, 2× LAN, 1× M.2

The Asrock EC262D4U Intel C262 LGA 1700 micro ATX motherboard is engineered for systems built around Intel LGA 1700 processors, including supported Intel Xeon series CPUs. This micro ATX board integrates the Intel C262 chipset and offers support for DDR5-SDRAM across four DIMM slots, M.2 storage interfaces, hardware RAID support for RAID 0, 1, 5 and 10, and an AMI BIOS with 256 Mbit memory for stable system configuration and firmware updates.

Advantages

The micro ATX form factor delivers a compact footprint while maintaining expandability for professional and workstation use. Native support for LGA 1700 processors and the Intel C262 chipset ensures compatibility with server-class CPUs and platform features. Four DDR5 memory slots enable higher memory bandwidth and capacity compared with previous generations. Integrated M.2 slots provide fast NVMe storage options, and built-in RAID support adds flexibility for data redundancy and performance configurations. The AMI BIOS with dedicated flash memory simplifies firmware management and system tuning.

Suitable for

• Small form-factor workstations and compact servers
• Data storage systems requiring RAID 0/1/5/10 configurations
• Professional applications that benefit from DDR5 memory bandwidth
• Systems where Intel Xeon compatibility and platform stability are required

Key specifications

• Form factor: Micro ATX
• Chipset: Intel C262
• Processor socket: LGA 1700 (supports compatible Intel processors including Intel Xeon series where applicable)
• Memory: DDR5-SDRAM support across 4 DIMM slots
• Memory voltage: 1.1 V typical operation for DDR5 modules
• Storage interfaces: M.2 slots for NVMe/PCIe storage
• RAID levels supported: 0, 1, 5, 10
• BIOS: AMI BIOS with 256 Mbit flash

How to use

Install the motherboard into a compatible micro ATX case, ensuring the correct placement of standoffs and secure mounting. Fit a supported LGA 1700 CPU following the socket manufacturer's instructions and apply an appropriate CPU cooler. Populate DDR5 DIMM slots in the recommended channel configuration for optimal dual- or quad-channel operation, and install M.2 NVMe storage modules into the provided M.2 sockets if required. Configure SATA and other storage devices, then power on and enter the AMI BIOS to verify hardware recognition, set boot order, and enable or configure RAID arrays if needed.

Recommendations

Use validated DDR5 memory modules from reputable manufacturers and follow the motherboard manual for slot population to achieve stable memory operation. When setting up RAID, back up important data before creating arrays and choose the RAID level that matches your balance of performance and redundancy needs. Ensure the case provides adequate airflow for server-class CPUs and high-speed NVMe drives, and keep BIOS firmware up to date for compatibility and security fixes.
