Scheda madre GIGABYTE H810M GAMING WIFI6, Intel Core Ultra, LGA 1851, Micro ATX

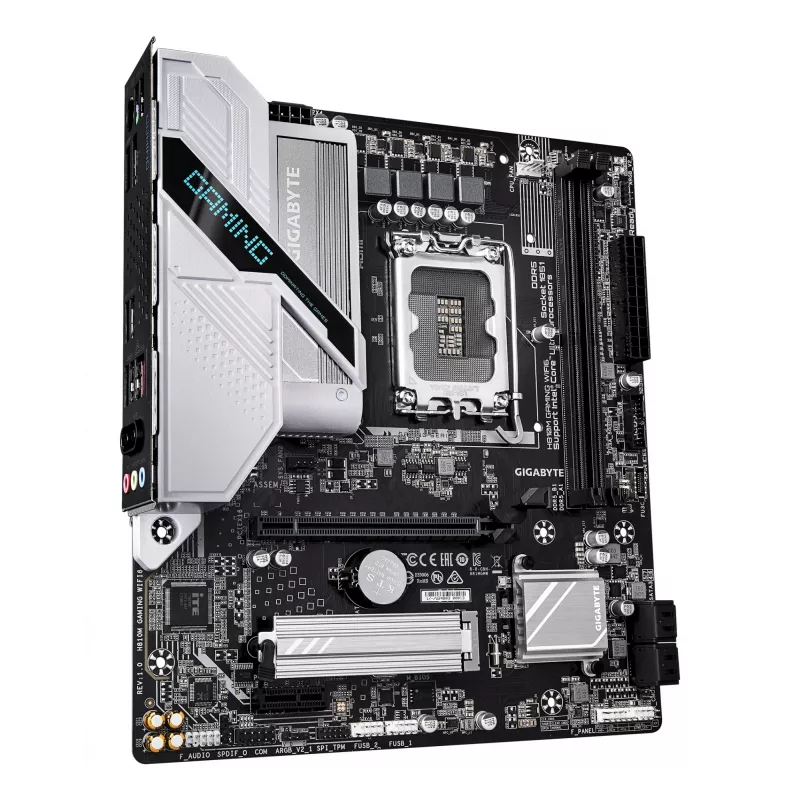

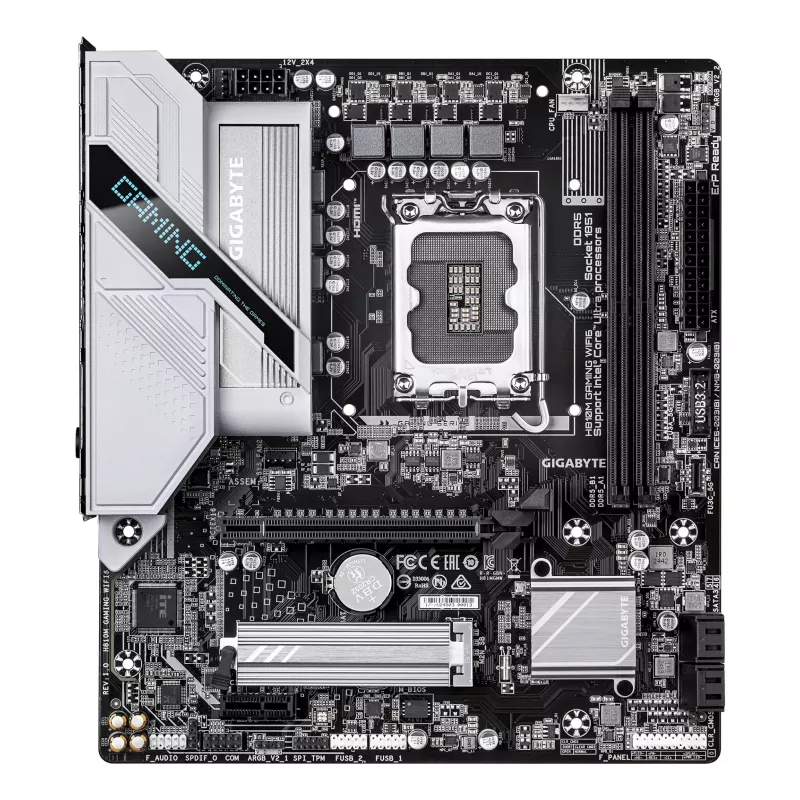

The GIGABYTE H810M GAMING WIFI6 is a Micro ATX motherboard designed for Intel Core Ultra (Series 2) processors with the LGA 1851 (Socket V1). It is built on the Intel H810 chipset and supports up to 128 GB of DDR5 memory across two slots, memory speeds up to 6400 MHz, a 4+1+2 phase VRM, one PCIe 4.0 M.2 slot, SATA III storage and RAID 0/1/5/10. Integrated networking includes 2.5GbE LAN and Wi‑Fi 6, while onboard graphics output supports up to 4096 x 2160 resolution, making the board suitable for gaming, content creation and general high-performance desktop use.

Advantages

The motherboard combines modern connectivity and fast memory support with a compact Micro ATX form factor. DDR5 compatibility and support for up to 128 GB of RAM enable demanding multitasking and productivity workflows. Onboard 2.5GbE and Wi‑Fi 6 provide high-speed network access, while the PCIe 4.0 M.2 slot and multiple SATA III ports allow flexible, high-performance storage configurations. The H810M GAMING WIFI6 provides a balance of features aimed at gamers, creators and professionals who need reliable, up-to-date platform capabilities.

Suitable for

• Gaming systems with an Intel Core Ultra (Series 2) CPU
• Content creation and video editing workstations
• Compact desktop builds using Micro ATX chassis
• Home or small-office PCs requiring fast wired and wireless networking

Key specifications

• Form factor: Micro ATX
• Chipset: Intel H810
• CPU socket: LGA 1851 (Socket V1) for Intel Core Ultra (Series 2)
• Memory: 2 × DDR5 slots, up to 128 GB, up to 6400 MHz
• Power delivery: 4+1+2 phase VRM
• Expansion: 1 × PCIe 4.0 M.2 slot; 1 × PCIe x1 (Gen3.x)
• Storage: SATA III ports; RAID 0/1/5/10 support

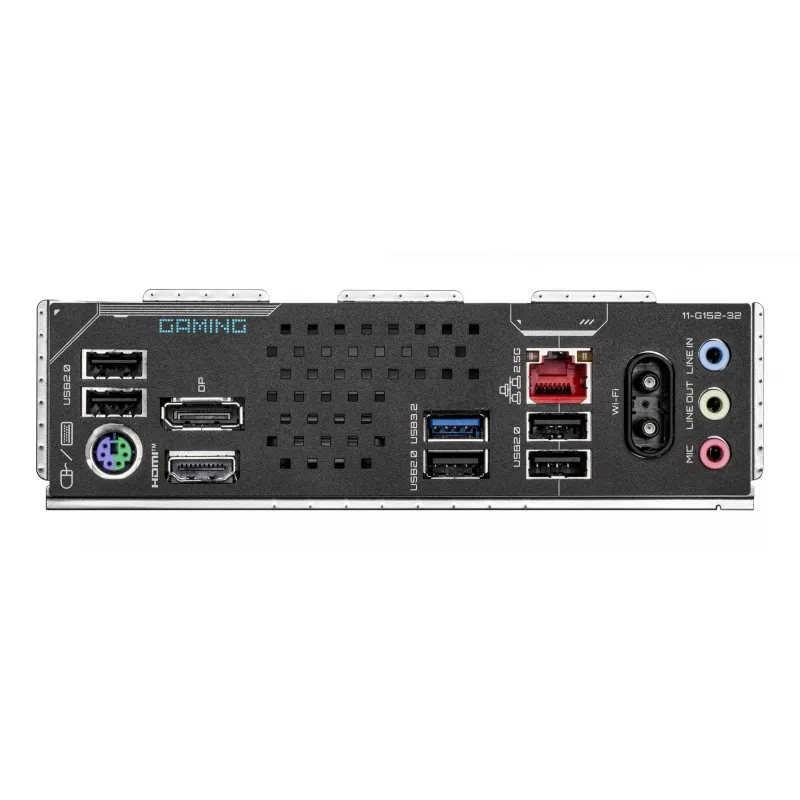

• Networking: 2.5GbE LAN and Wi‑Fi 6
• Maximum display resolution: 4096 × 2160
• Weight: 1.1 kg

How to use

Install an Intel Core Ultra (Series 2) CPU into the LGA 1851 socket following CPU and motherboard manufacturer instructions, apply appropriate cooling and populate DDR5 memory modules in the two DIMM slots to achieve desired capacity and dual‑channel operation. Connect storage devices to the M.2 slot or SATA III ports and configure RAID if required through the BIOS. Attach power connectors from a compatible PSU and connect front-panel, USB and audio headers to the case. Enable and configure networking in the operating system for wired 2.5GbE or Wi‑Fi 6 use.

Recommendations

For stable performance, use high-quality DDR5 modules rated for the board's supported speeds, a PSU that meets your CPU and GPU power requirements, and updated BIOS/firmware. Ensure adequate case airflow and an appropriate CPU cooler for Intel Core Ultra processors.
