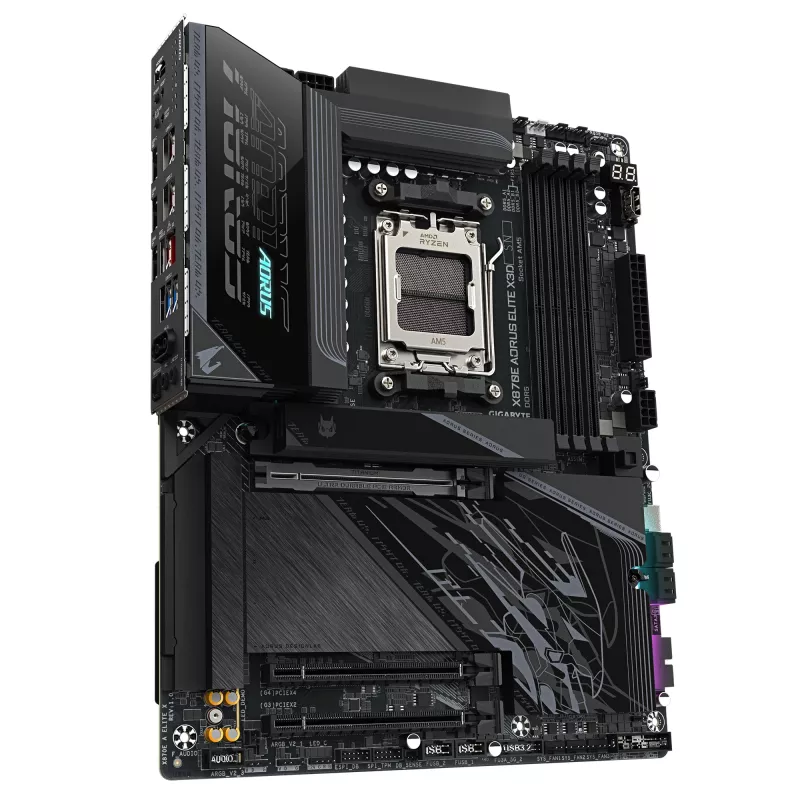

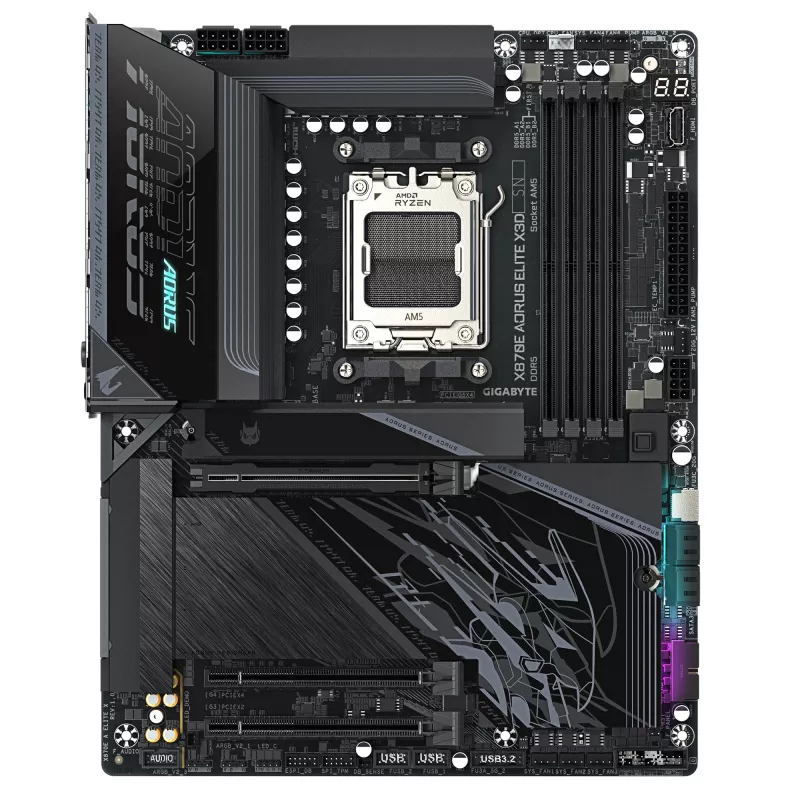

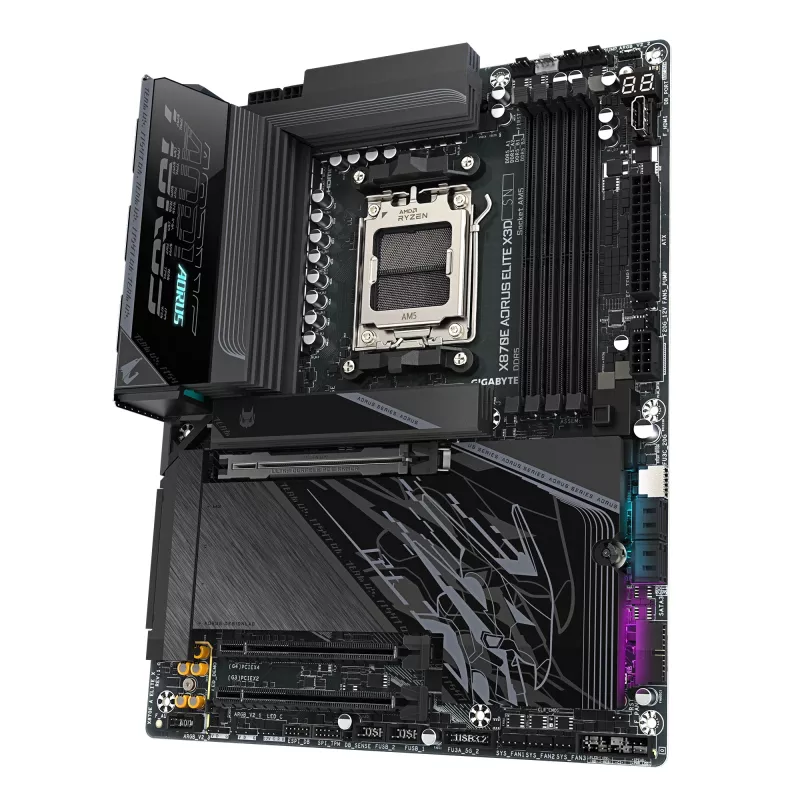

Scheda madre GIGABYTE X870E AORUS ELITE X3D, AMD AM5, ATX

The GIGABYTE X870E AORUS ELITE X3D is an ATX motherboard for Socket AM5 that supports AMD Ryzen 7000, 8000 and 9000 series processors. It features a digital twin 16+2+2 phase VRM, four DDR5 DIMM slots with support for AMD EXPO memory profiles (up to 256 GB), and multiple high-speed storage and I/O options including four M.2 slots (one with PCIe 5.0 x4), PCIe expansion, SATA III RAID support and dual USB4 Type-C with DP-Alt. Networking is provided by 2.5 GbE and 5 GbE LAN plus Wi‑Fi 7 with a directional high-gain antenna. The board is designed for high-performance gaming, content creation and professional PC builds that require advanced connectivity and robust power delivery.

Advantages

The motherboard combines a high-capacity DDR5 memory subsystem and an advanced 16+2+2 digital VRM for stable power delivery under heavy CPU loads. PCIe 5.0 M.2 support and four M.2 slots enable ultra-fast storage configurations, while integrated Wi‑Fi 7 and multi-gigabit Ethernet provide low-latency networking. Practical features such as M.2 EZ-Latch, M.2 EZ-Flex cooling, WIFI EZ-Plug and tool-less M.2 installation simplify assembly and maintenance. Dual USB4 Type-C ports with DisplayPort Alternate Mode and front QC-USB 65W expand connectivity for modern peripherals and fast charging.

Suitable for

• High-performance gaming systems with AMD Ryzen 7000/8000/9000 CPUs
• Content creation and video editing workstations requiring fast storage and memory
• Professional and enthusiast PC builds that need multi-GPU/PCIe expansion and robust networking

Key specifications

• Form factor: ATX
• Chipset: AMD X870E
• CPU socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 Series)
• Memory: 4 × DDR5 DIMM slots, maximum 256 GB, AMD EXPO support, DDR5 OC up to 9000 MT/s
• Power delivery: Digital twin 16+2+2 phases VRM
• Storage: 4 × M.2 slots (including PCIe 5.0 x4), SATA III, up to 8 storage drives supported, RAID support
• Expansion: PCI Express x16 slots (PCIe 5.0/4.0 compatible)
• Audio: Realtek ALC1220-VB 7.1-channel
• Networking: 2.5 GbE, 5 GbE LAN and Wi‑Fi 7 (802.11be), Bluetooth 5.4

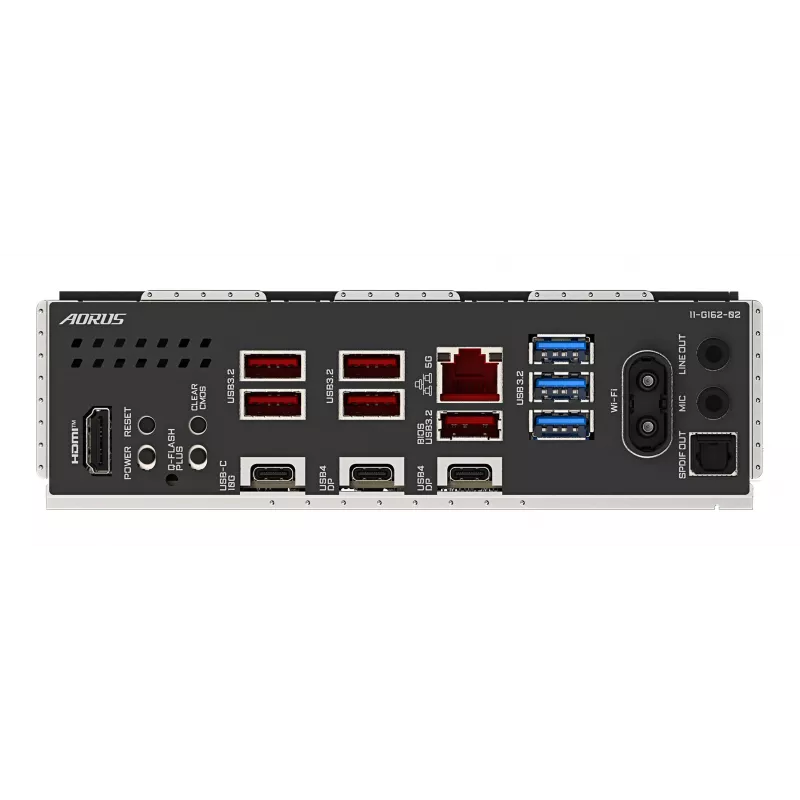

• Rear I/O: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W support
• BIOS: UEFI AMI 512 Mbit, ACPI 5.0, Clear CMOS jumper and button
• Weight: 2.98 kg

How to use

Install the GIGABYTE X870E AORUS ELITE X3D into an ATX-compatible case, mount an AM5-compatible AMD Ryzen CPU and apply appropriate cooling. Populate up to four DDR5 DIMMs following the motherboard manual to enable dual-channel operation and, if desired, AMD EXPO profiles. Install M.2 SSDs using the EZ-Latch and EZ-Flex mechanisms for screwless mounting and improved thermal dissipation. Connect power connectors, front panel headers and storage drives, then attach antennas for Wi‑Fi 7 if wireless networking is required. Boot into BIOS (UEFI) to configure memory profiles, storage modes (RAID if needed) and update firmware before installing an operating system.

Recommendations

For optimal performance, use high-quality DDR5 modules with AMD EXPO profiles and a compatible high-performance cooler for Ryzen X3D processors. Keep system firmware updated and ensure proper airflow to maintain stable temperatures for VRM and M.2 storage devices.
