Scheda opzionale HP PCA USB-C Gen 2

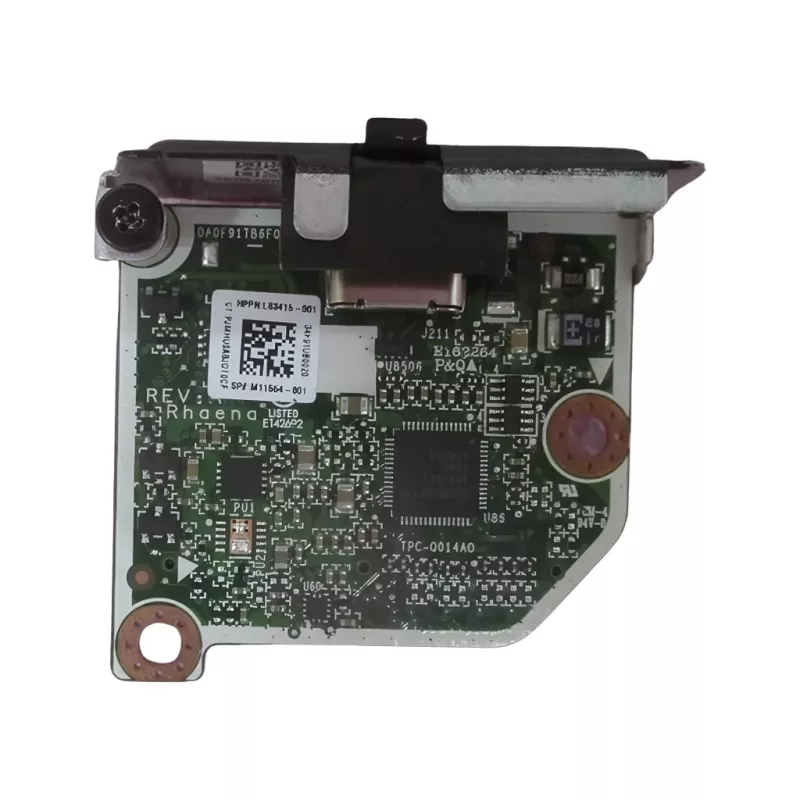

The HP PCA USB-C Gen 2 Option Board is an internal I/O expansion board designed to add a USB Type-C port with USB 3.1 Gen 2 (10 Gbps) connectivity to compatible HP workstations and desktop systems. This plug-and-play board enables high-speed data transfer and backward compatibility with USB 3.0 and USB 2.0 devices, making it an ideal upgrade for users needing modern USB-C connectivity on legacy systems.

Advantages

This option board provides a seamless way to integrate USB-C functionality into HP Z2, Z4, Z6, Z8 G4/G5 workstations and select EliteDesk/ProDesk G4/G5 series. It supports data transfer rates up to 10 Gbps, ensuring fast file transfers and efficient peripheral connectivity. The internal installation keeps the workspace clutter-free and maintains the system's form factor.

Suitable for

• HP Z2 Mini G4/G5 Workstations
• HP Z2 SFF G4/G5 Workstations
• HP Z4 G4/G5 Workstations
• HP Z6 G4/G5 Workstations
• HP Z8 G4/G5 Workstations
• HP EliteDesk G4/G5 series
• HP ProDesk G4/G5 series

Key specifications

• Product Type: I/O Expansion Board
• Host Interface: Proprietary HP Motherboard Connector
• External Ports: 1 x USB Type-C
• USB Standard: USB 3.1 Gen 2 (SuperSpeed USB 10Gbps)
• Data Transfer Rate: 10 Gbps
• Form Factor: Internal Option Board
• Backward Compatibility: USB 3.0, USB 2.0
• Power Output: Standard USB bus power
• Material: Printed Circuit Board (PCB) with electronic components

Recommendations

For optimal performance, ensure your HP system has an available proprietary motherboard connector. This board is designed for internal installation and does not require external power. Compatible with Windows and Linux operating systems.
