Scheda PCI Express x1 DeLOCK 89223

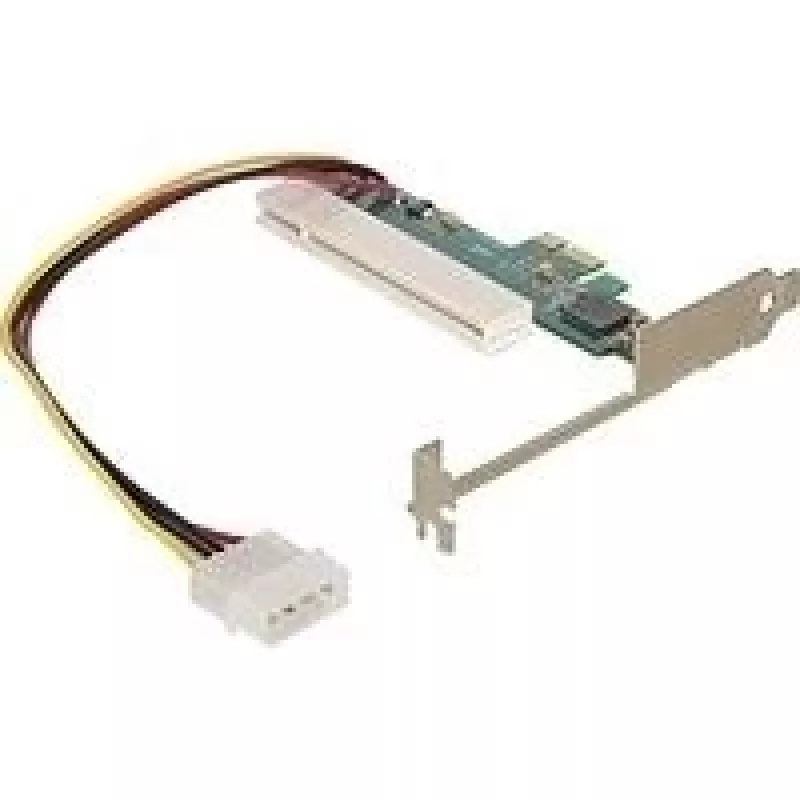

This PCI Express x1 card by DELOCK (model 89223) adds a single PCI interface to a desktop PC, allowing installation of standard or low profile PCI extension cards. The board features a 32-bit PCI interface and connects to the system via a PCIe x1 host slot. Power is supplied through the included 4‑pin Molex connector. The bracket includes an aperture to access the installed PCI card or to route connections inside the case.

Advantages

The card is compact and supports installation of both standard and low profile PCI cards, while drawing power directly from the PC power supply through a 4‑pin Molex connector. Its PCIe x1 host interface ensures compatibility with modern motherboards and the simple bracket aperture facilitates internal connections.

Suitable for

Key specifications

How to use

Power off the PC and unplug it from the mains. Insert the PCI Express x1 card into an available PCIe x1 slot on the motherboard and secure the bracket to the case. Connect the included 4‑pin Molex power connector to the system power supply. Install the desired PCI extension card into the adapter and route any required cables through the bracket aperture. Reconnect power and start the system to detect the installed hardware.

Recommendations

Ensure the connected PCI card is compatible with a 32‑bit PCI interface and confirm adequate power delivery from the PC power supply. For low profile installations, use appropriate bracket or mounting hardware if required.
