Scheda PCI Express x1 DeLOCK 89909

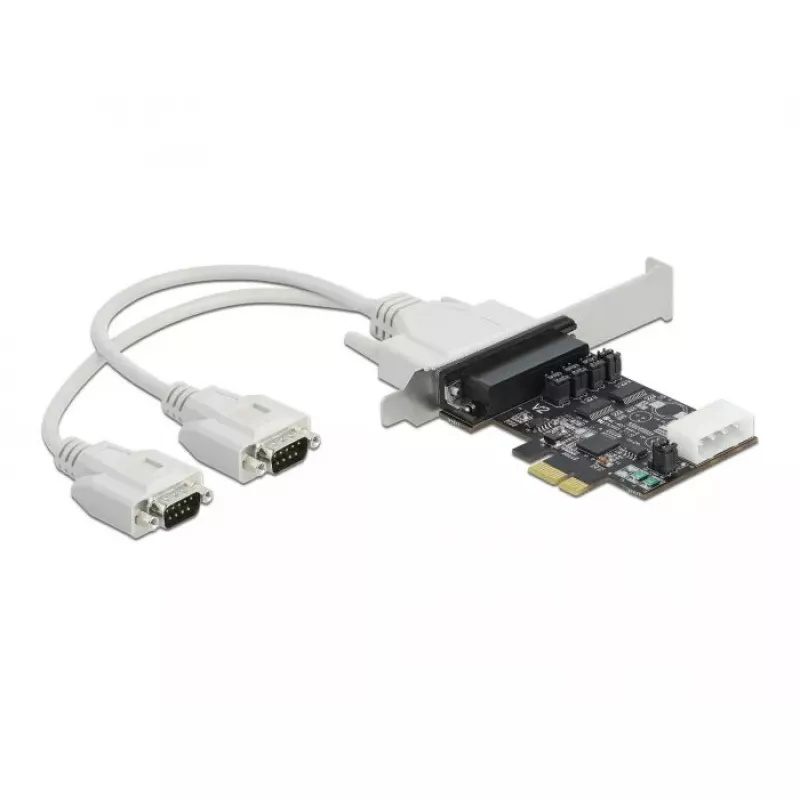

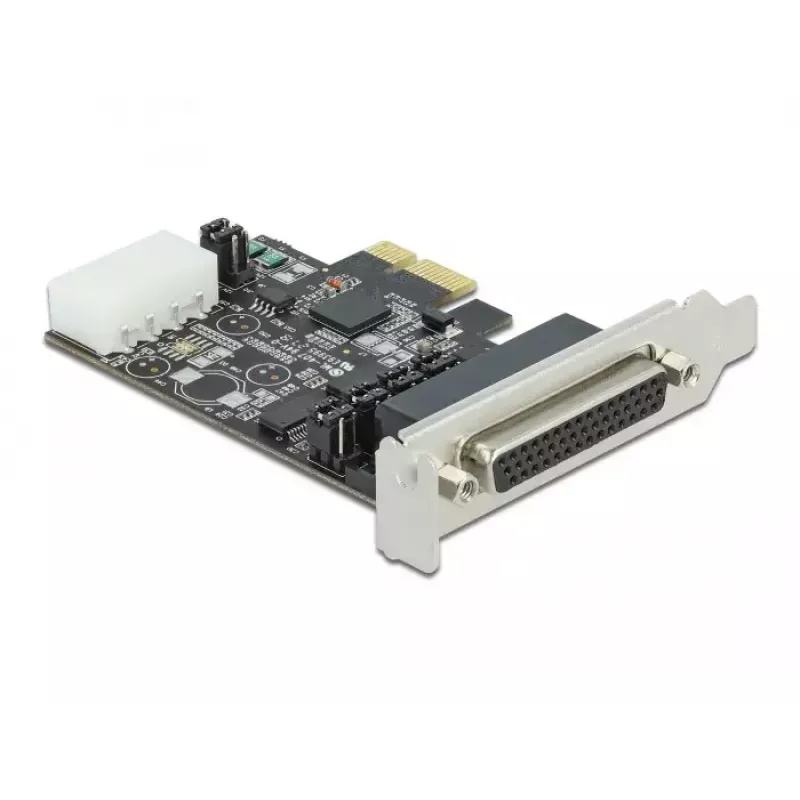

The PCI Express x1 Card DeLOCK 89909 adds two external RS-232 serial ports to a PC. The card supports optional voltage supply for connected devices (5 V or 12 V) via specific RS-232 signal pins and is supplied with a low profile bracket for installation in compact systems.

Advantages

The card provides two external serial RS-232 ports with selectable voltage supply on pins DCD, DTR, CTS and RI, a PCIe x1 host interface and a 256 B FIFO buffer supporting baud rates up to 230.4 Kbit/s. Its low profile form factor and included bracket allow installation in both standard and small form factor PCs. The device is internally mounted, finished in black, and designed for reliable serial connectivity.

Suitable for

Key specifications

How to use

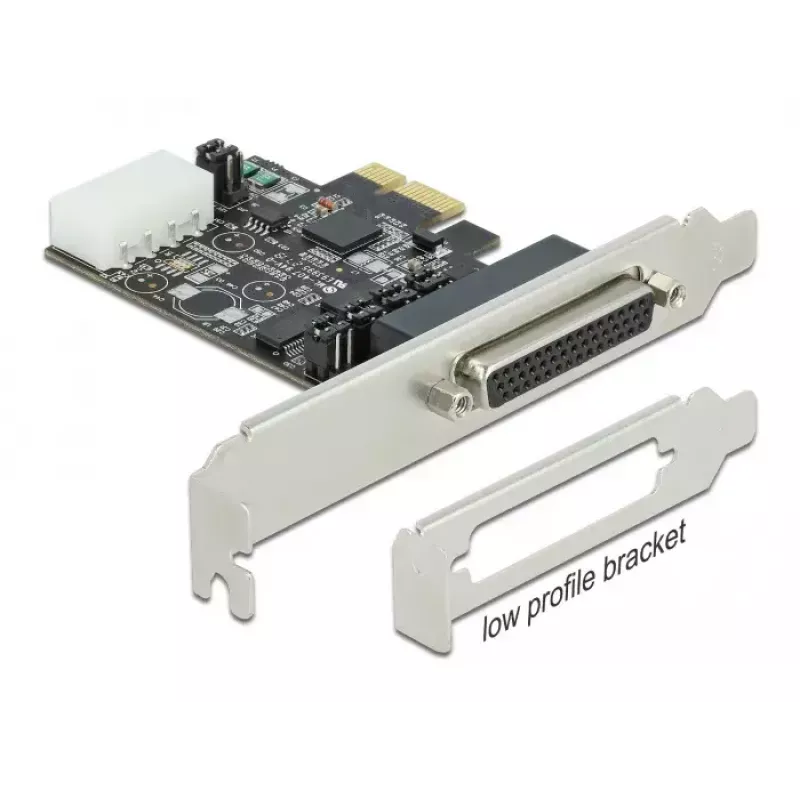

Install the PCI Express x1 Card into an available PCIe x1 slot on the host motherboard following standard anti-static procedures. Attach the included low profile bracket if installing into a Mini-PC or small form factor case. Connect external serial devices to the RS-232 ports using appropriate DB9 cables. Configure device settings and serial parameters (baud rate, parity, data bits, stop bits) in the operating system or application to match the connected devices.

Recommendations

Use correct cabling and confirm pinout compatibility before enabling the optional 5 V or 12 V supply on the RS-232 pins. Do not exceed the power ratings of connected devices and ensure proper driver installation for the host operating system.
