Scheda PCI Express x2 DeLOCK 90433 per 4 x SATA HDD SSD RAID

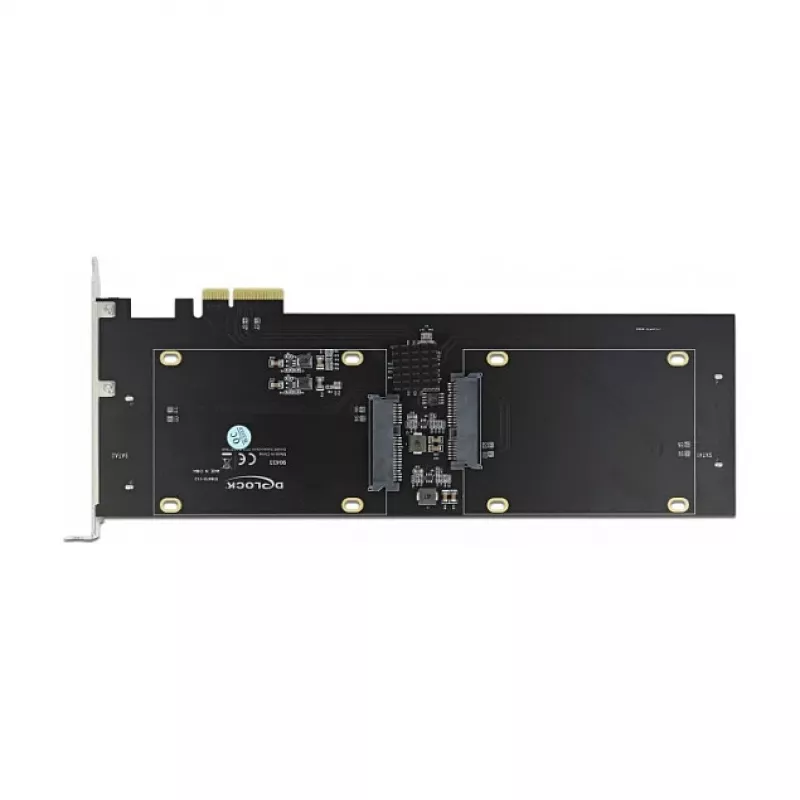

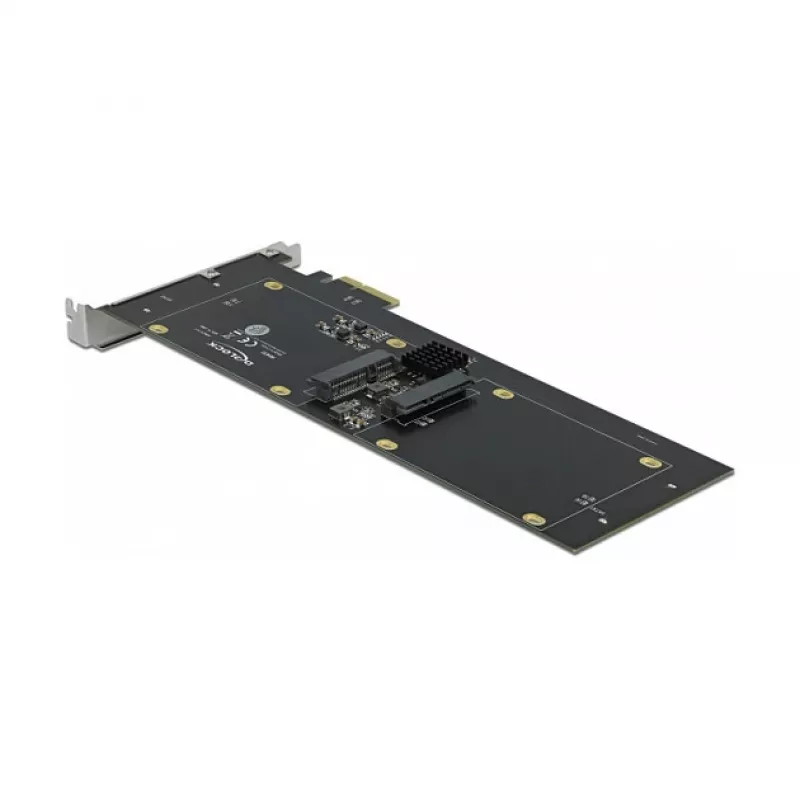

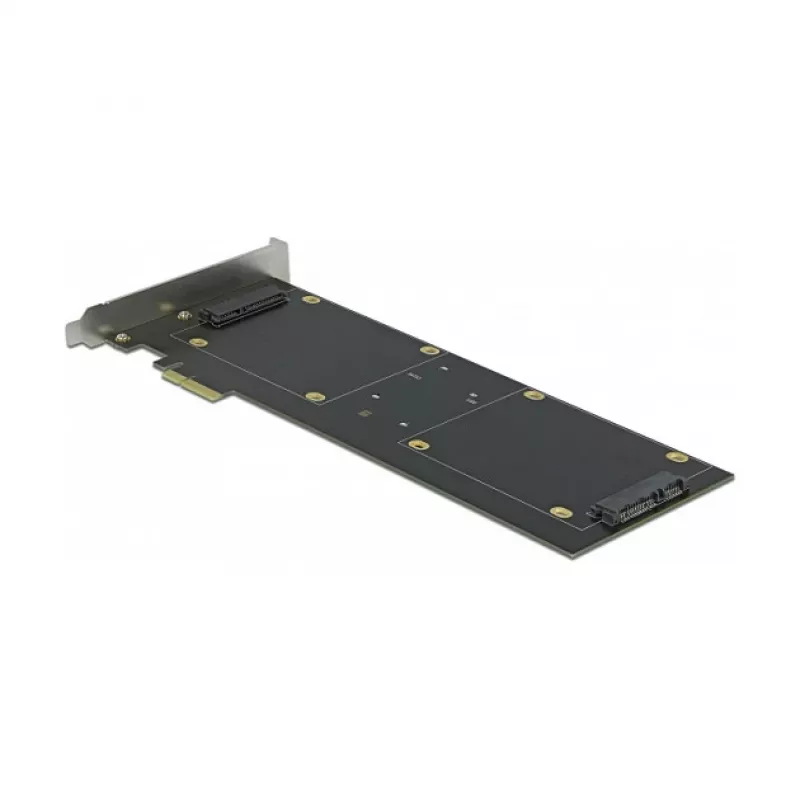

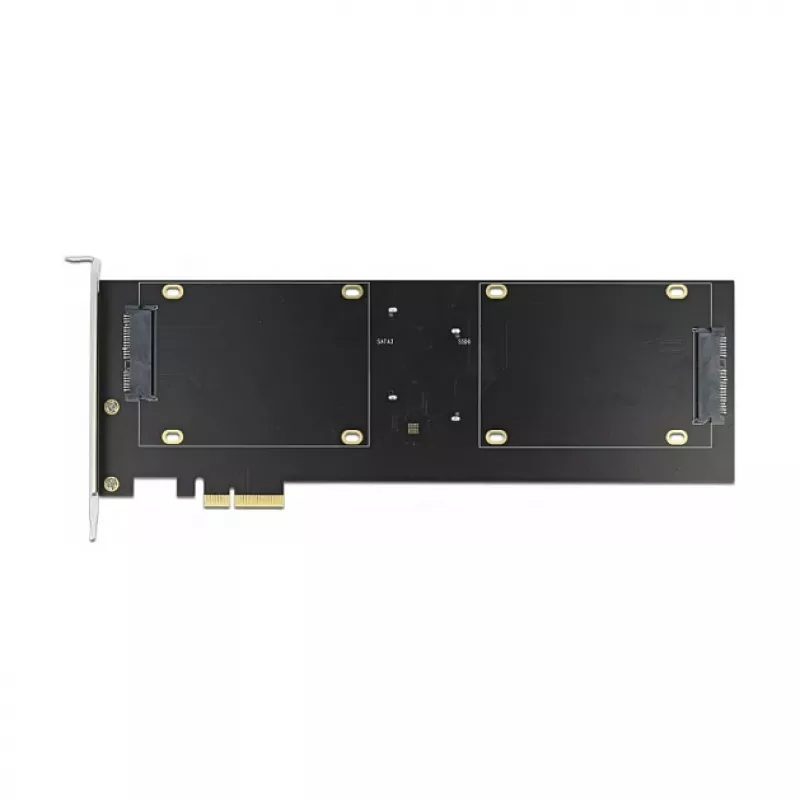

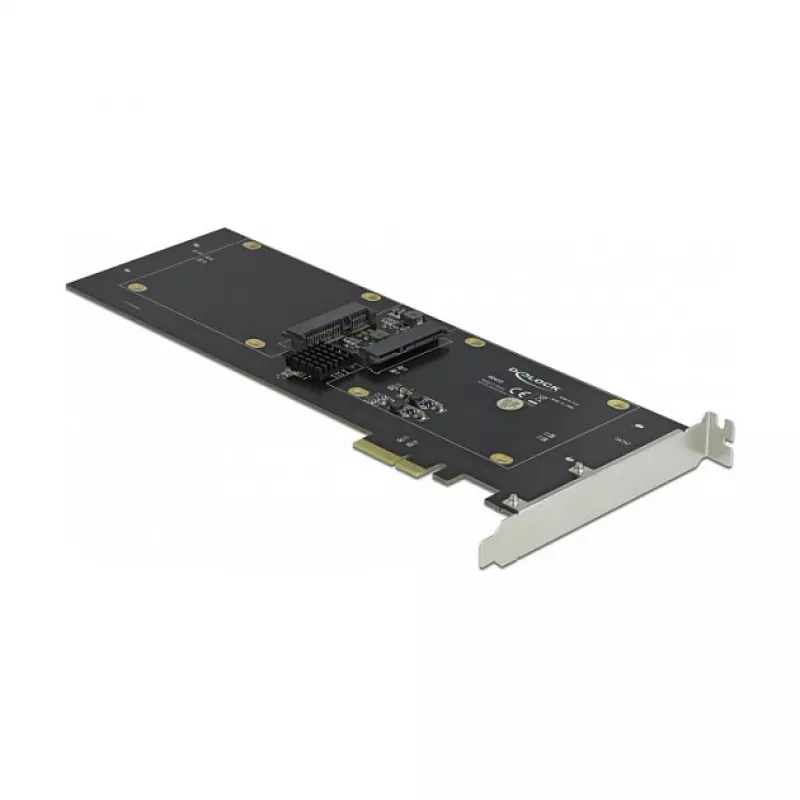

The DeLOCK PCI Express x2 Card 90433 expands a PC with four internal SATA 22‑pin ports, allowing connection of up to four 2.5" SSDs or HDDs. It uses a PCIe 2.0 x2 interface with a maximum transfer rate of 6 Gbit/s and supports multiple RAID configurations and HyperDuo operation for combined SSD/HDD setups. Compatible with Windows 10, 8.1 and 7 (32/64-bit).

Advantages

The card provides four internal SATA ports on a single PCIe x2 slot, supporting both SSD and HDD devices and enabling hardware RAID modes (RAID 0, 1, 10, JBOD). HyperDuo support lets you combine an SSD and an HDD to benefit from SSD performance and HDD capacity. The card supports simultaneous use of different RAID arrays when enough drives are installed and fits standard PCIe slots with a compact PCB size.

Suitable for

Key specifications

How to use

Install the PCIe card into an available PCI Express x2 (or x4/x8/x16) slot on the motherboard and secure it to the case. Connect power to the drives if required by your chassis or power cables. Attach up to four 2.5" SATA SSDs or HDDs to the card's SATA 22‑pin ports using appropriate SATA cables or direct connectors. Boot the system and configure RAID or HyperDuo settings in the provided driver/utility or operating system storage management according to the manual.

Recommendations

For stable RAID operation, use drives of the same capacity and similar performance characteristics. Keep firmware and drivers up to date and back up important data before creating or changing RAID arrays.
