Scheda PCIe DIGITUS USB-C + USB-A, fino a 10 Gbit/s

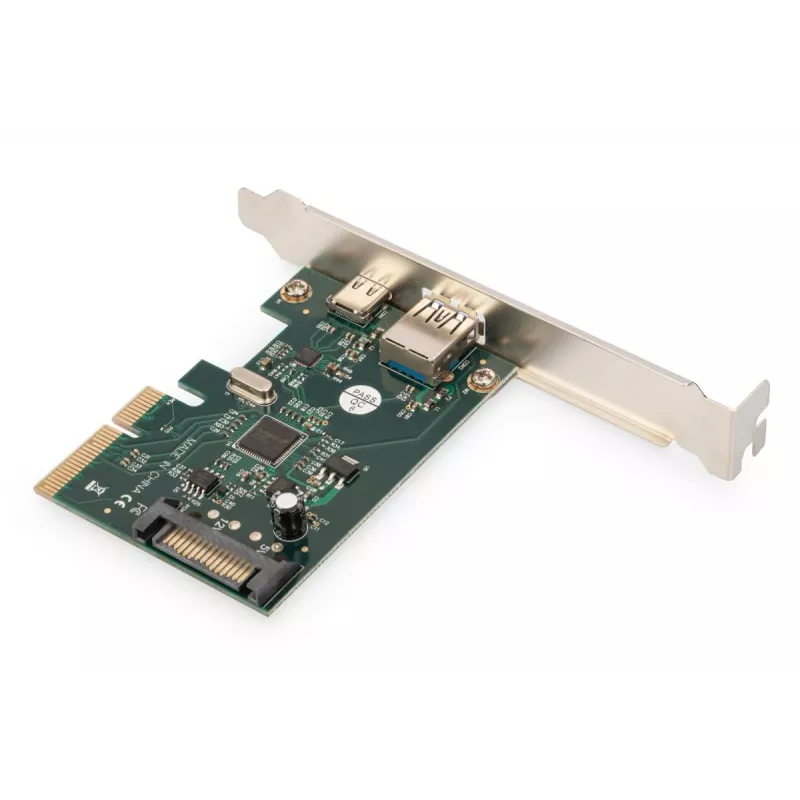

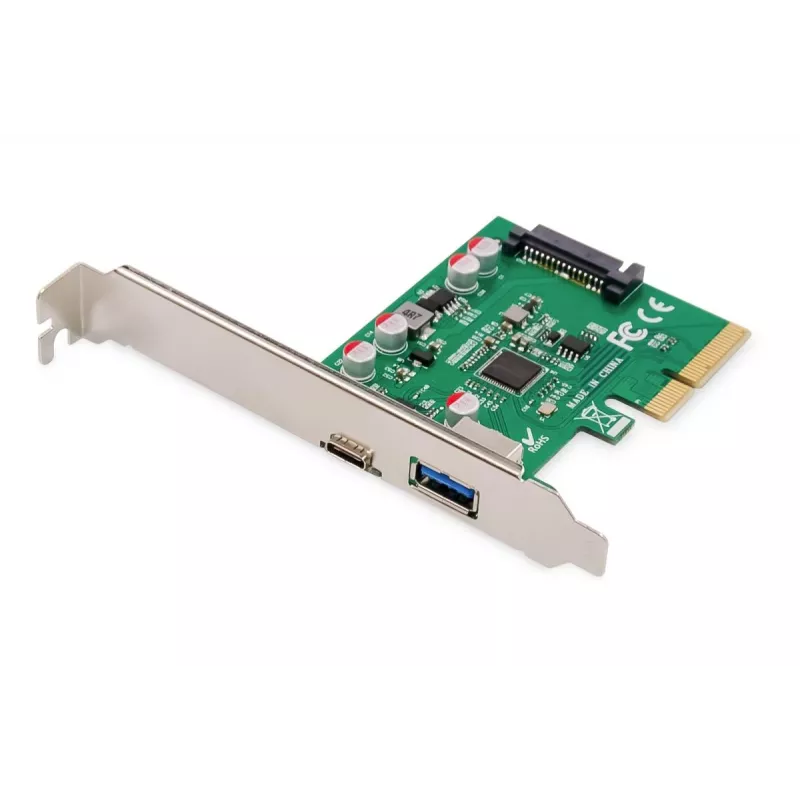

PCIe card Digitus DS-30225 USB Type-C™ + USB-A expands desktop PC connectivity with two external USB 3.1 (USB 3.2 Gen 2) ports: one USB-A and one USB Type-C™. The card supports SuperSpeed data transfer up to 10 Gbps, is available in full-height and low-profile form factors, and provides power output up to 5 V / 3 A for connected devices. It is suitable for connecting docking stations, card readers and external enclosures to systems with a PCIe slot and is compatible with common Windows versions.

Advantages

The Digitus DS-30225 delivers SuperSpeed USB 10 Gbps performance for fast file transfers and device communication, offers both USB-A and reversible USB Type-C™ connectors for broad device compatibility, and includes a low-profile bracket for installation in compact computer cases. Its PCIe host interface ensures a direct connection to the motherboard and the card supports multiple USB transfer speeds (10G / 5G / 480 / 12 / 1.5 Mbps).

Suitable for

• Connecting external storage enclosures and SSDs that benefit from high transfer speeds
• Using modern USB Type-C™ peripherals and legacy USB-A devices
• Adding ports to small-form-factor PCs using the included low-profile bracket
• Connecting docking stations, card readers and cameras

Key specifications

• Model: Digitus DS-30225
• Interface: PCIe host interface
• External ports: 1x USB Type-C™, 1x USB-A (USB 3.2 Gen 2 / USB 3.1 Gen 2)
• Maximum data rate: SuperSpeed up to 10 Gbps (supports 10G / 5G / 480 / 12 / 1.5 Mbps)
• Power output: up to 5 V / 3 A

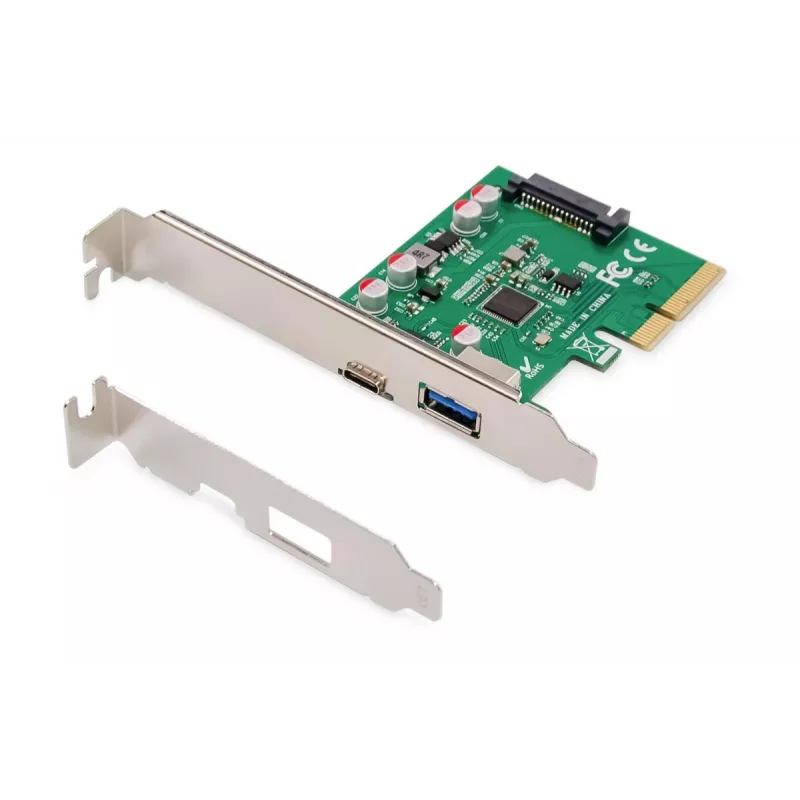

• Form factor: full-height with included low-profile bracket
• Compatibility: Windows 10, 8.1, 8, 7 (driver may be required)
• Product colour: Green
• Weight: 0.05 kg

How to use

Power down the PC and open the chassis. Insert the Digitus DS-30225 into an available PCIe slot on the motherboard and secure it with the slot screw. If installing into a small enclosure, replace the full-height bracket with the included low-profile bracket before securing. Close the chassis and boot the system; install any required drivers for your operating system. Connect devices to the USB-A or USB Type-C™ ports to begin transfers at supported SuperSpeed rates.

Recommendations

For best performance, connect high-speed storage devices to the USB Type-C™ port and ensure the host system has available PCIe bandwidth. Use the low-profile bracket when installing in compact cases, and verify driver installation on older Windows versions for full functionality.
