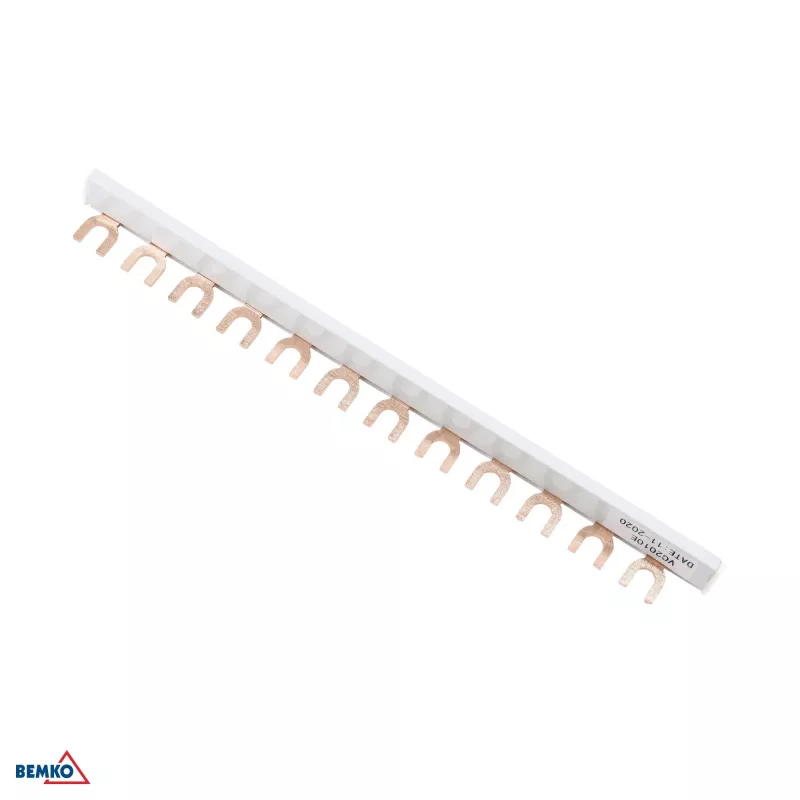

SCHELINGER A19-BB-1F sbarra collettrice monofase tipo U 10mm² 12 moduli 63A

In electrical distribution boards, connecting multiple modular devices such as miniature circuit breakers (MCBs), residual current devices (RCDs), and RCBOs often requires tedious individual wiring, increasing installation time and the risk of errors. The SCHELINGER A19-BB-1F U-type busbar solves this by providing a reliable, space-saving common power supply for up to 12 single-phase modules. With a 10 mm² cross-section and rated current of 63 A, it ensures safe and efficient power distribution in residential and commercial installations.

Who is it for

This busbar is ideal for electricians, panel builders, and maintenance professionals who need a quick and secure method to link multiple DIN rail-mounted devices on a single phase. It is equally suitable for new installations and retrofits in distribution boards, consumer units, and control panels.

Main features

• U-type (fork) design for easy insertion onto device terminals without removing screws.
• Single-phase configuration with 12 modules (pin pitch 18 mm), total length 216 mm.
• 10 mm² tinned copper conductor for high conductivity and corrosion resistance.
• Rated current 63 A, rated voltage 230/400 V AC.
• Blue self-extinguishing plastic insulation (PA6) for safety and durability.
• Compliant with IEC/EN 60947-7-1, degree of protection IP20 when installed.
• Operating temperature range -25°C to +70°C.

Specifications

• Brand: SCHELINGER
• Model: A19-BB-1F
• MPN: A19-BB-1F
• EAN: 5900280904096
• Busbar type: U-type (Fork)
• Phase configuration: Single-phase (1F)
• Cross-section area: 10 mm²
• Number of modules: 12
• Rated current (In): 63 A
• Rated voltage (Un): 230/400 V AC
• Conductor material: Tinned copper
• Insulation material: Self-extinguishing plastic (PA6)
• Insulation colour: Blue
• Pin pitch: 18 mm (1 module)
• Total length: 216 mm
• Mounting type: For devices mounted on DIN rail
• Operating temperature range: -25°C to +70°C
• Degree of protection: IP20 (when installed)
• Standard compliance: IEC/EN 60947-7-1
• Connection type: Fork terminal

Tips

Before installation, ensure the main power is disconnected. Align the busbar pins with the device terminals and press firmly until fully seated. For mixed device types, verify terminal compatibility with U-type busbars. Always respect the rated current and do not exceed the number of modules specified.
