SCHELINGER A80-RDN-IP40-NPE-08P Quadro di distribuzione da parete IP40 8N+8PE 1x8P

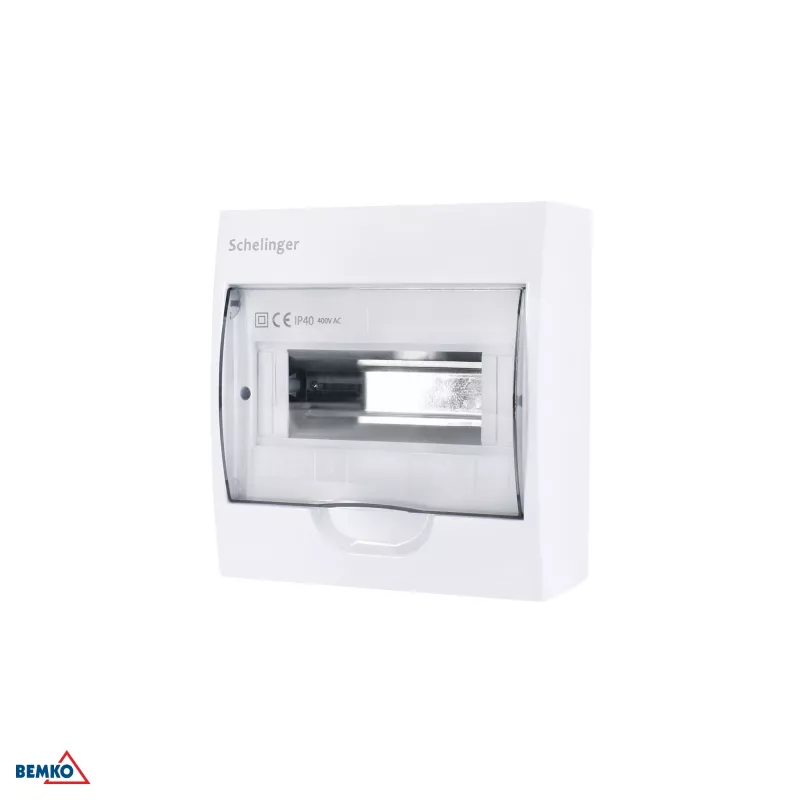

The SCHELINGER A80-RDN-IP40-NPE-08P is a high-quality surface-mounted distribution board designed for indoor electrical installations. With an IP40 protection rating, it offers reliable protection against solid objects larger than 1mm. This enclosure features 8 neutral (N) and 8 protective earth (PE) terminals, making it ideal for residential and commercial applications where multiple circuits need to be organized safely.

Advantages

Robust ABS plastic construction ensures durability and long service life. The transparent tinted door allows easy visual inspection of the internal components without opening the enclosure. Pre-punched knockouts simplify cable entry, and the included galvanized steel DIN rail provides secure mounting for modular devices. The 180° door opening angle facilitates easy access during installation and maintenance.

Suitable for

• Residential electrical distribution
• Commercial building wiring
• Industrial control panels (indoor use)
• Lighting and power distribution circuits

Key specifications

• Mounting Type: Surface-mounted
• IP Protection Rating: IP40
• Number of Modules (DIN): 8
• Number of Rows: 1
• Neutral (N) Terminals: 8
• Protective Earth (PE) Terminals: 8
• Enclosure Material: ABS Plastic
• Door Type: Transparent (tinted)
• Color: White (base), Transparent (door)
• Rated Insulation Voltage (Ui): 500V AC
• Rated Operational Voltage (Ue): 230/400V AC
• Rated Current (In): Up to 63A
• Impact Resistance: IK07
• Glow Wire Test: 650°C
• Operating Temperature: -5°C to +40°C
• Standards Compliance: EN 62208, EN 61439-3
• DIN Rail: Included (Galvanized steel)
• Cable Entry: Pre-punched knockouts
• Application Environment: Indoor
• Door Opening Angle: 180°

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connections are tightened to the manufacturer's specifications. Use appropriate cable glands for sealed cable entry.
