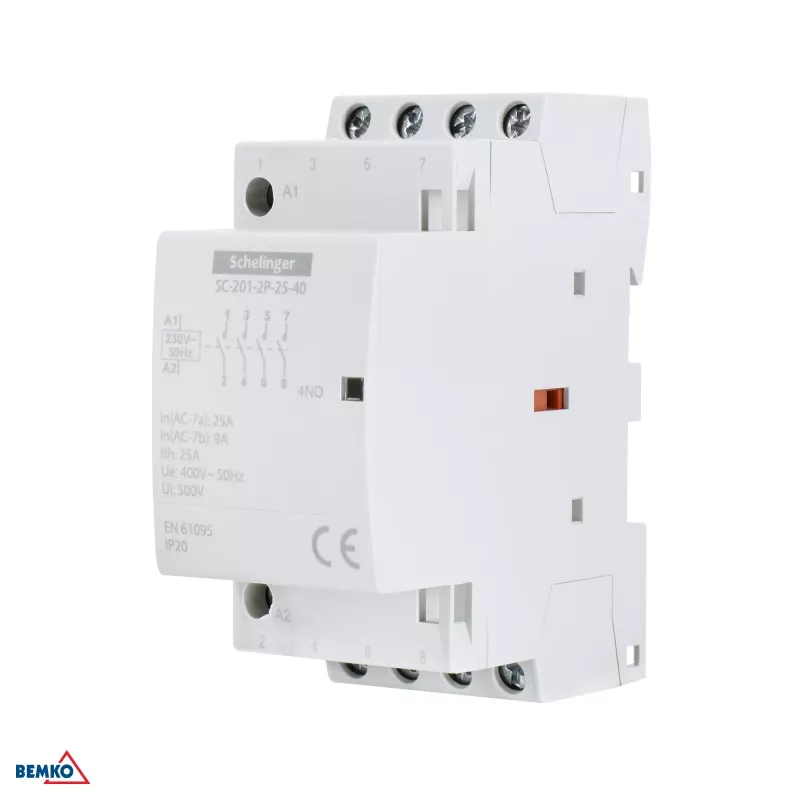

SCHELINGER SC201 Contattore modulare 2P 25A TYP 40 (4NO + 0NC)

The SCHELINGER SC201 modular contactor is a high-quality switching device designed for reliable control of lighting, heating, ventilation, motor, and general resistive loads. With a compact 2-module width and DIN rail mounting, it fits seamlessly into distribution boards. The contactor features 4 normally open (NO) contacts and 0 normally closed (NC) contacts, rated at 25 A (AC-1) and up to 400 V AC. It complies with IEC/EN 61095 standards, ensuring safety and performance.

Advantages

Compact design saves space in electrical panels. High electrical durability of 100,000 cycles and mechanical life of 1,000,000 cycles ensure long service life. Easy DIN rail installation reduces setup time. The TYP 40 series offers reliable switching for various applications.

Suitable for

• Lighting control in commercial and residential buildings
• Heating and ventilation systems
• Motor control for small motors
• General resistive loads

Key specifications

• Product Type: Modular Contactor
• Number of Poles: 2P
• Rated Operational Current (AC-1): 25 A
• Contact Configuration: 4NO (4 Normally Open)
• Number of Normally Open (NO) Contacts: 4
• Number of Normally Closed (NC) Contacts: 0
• Rated Operational Voltage (Ue): Up to 400 V AC
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: DIN Rail
• Electrical Life (AC-1): 100,000 cycles
• Mechanical Life: 1,000,000 cycles
• Operating Temperature Range: -5°C to +40°C
• Degree of Protection (IP): IP20
• Modular Width: 2 Modules (approx. 36mm)
• Standard Compliance: IEC/EN 61095

Recommendations

For optimal performance, ensure the control circuit voltage matches your system requirements. Use appropriate overcurrent protection. This contactor is suitable for resistive and slightly inductive loads; for highly inductive loads, consider derating.
