Schermo di proiezione Elite Screens Saker SK100XHW-E12

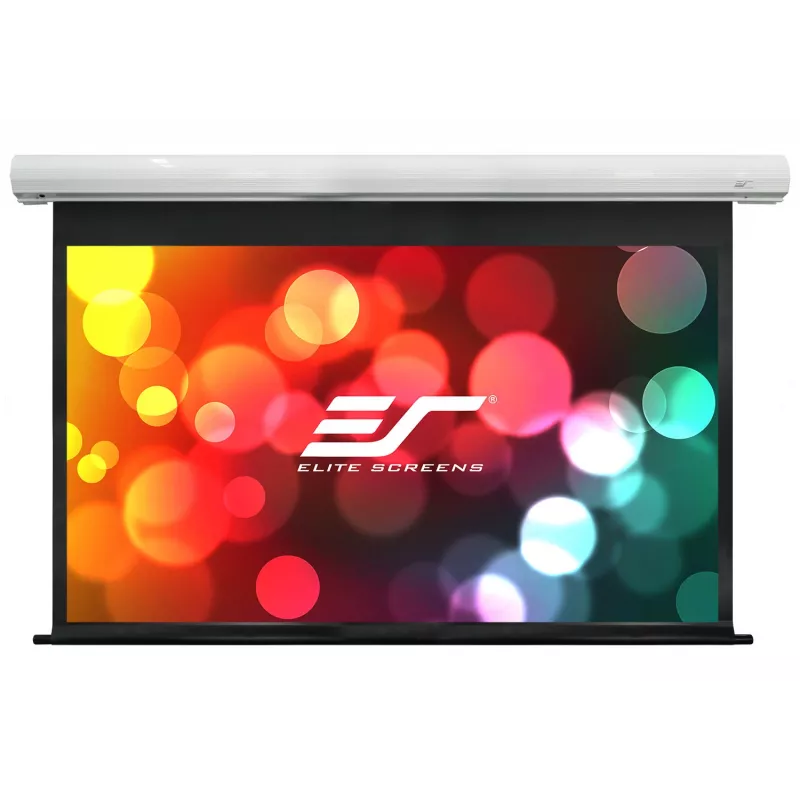

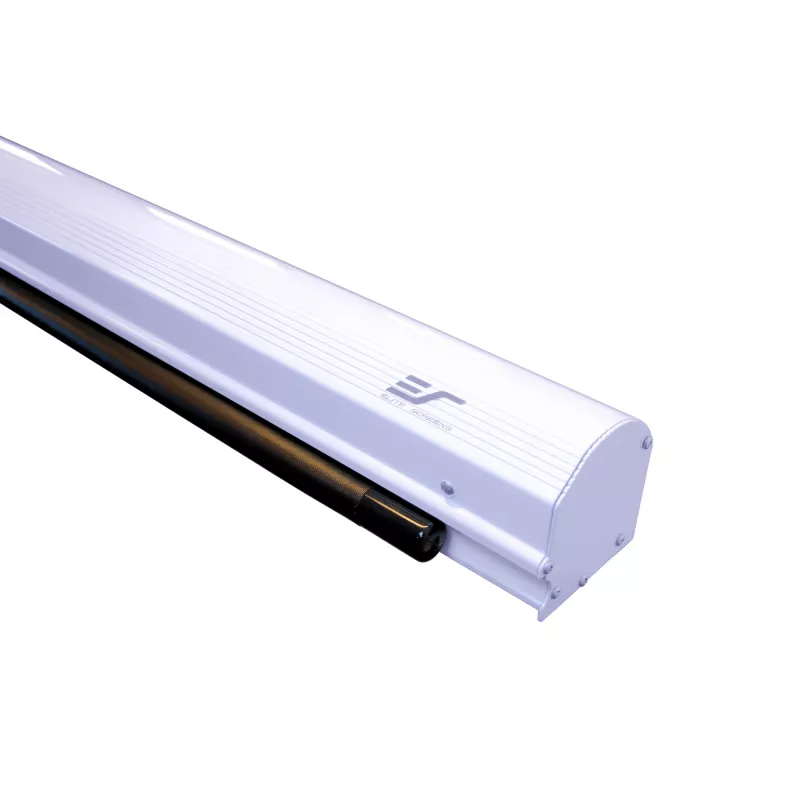

The Elite Screens Saker SK100XHW-E12 is a motorized projection screen with a 100" (2.54 m) diagonal and a native 16:9 aspect ratio. The viewable image area measures 2.21 m in width and 1.245 m in height, suitable for HDTV and home theater setups. The screen uses MaxWhite Fiberglass (FG) material with a 1.1 gain, a 180° wide viewing angle, active 3D and 4K Ultra HD readiness, standard black masking borders, and a black backing. The casing is a curved enamel white aluminium design with parallel grooves and includes mounting hardware for wall or ceiling installation.

Advantages

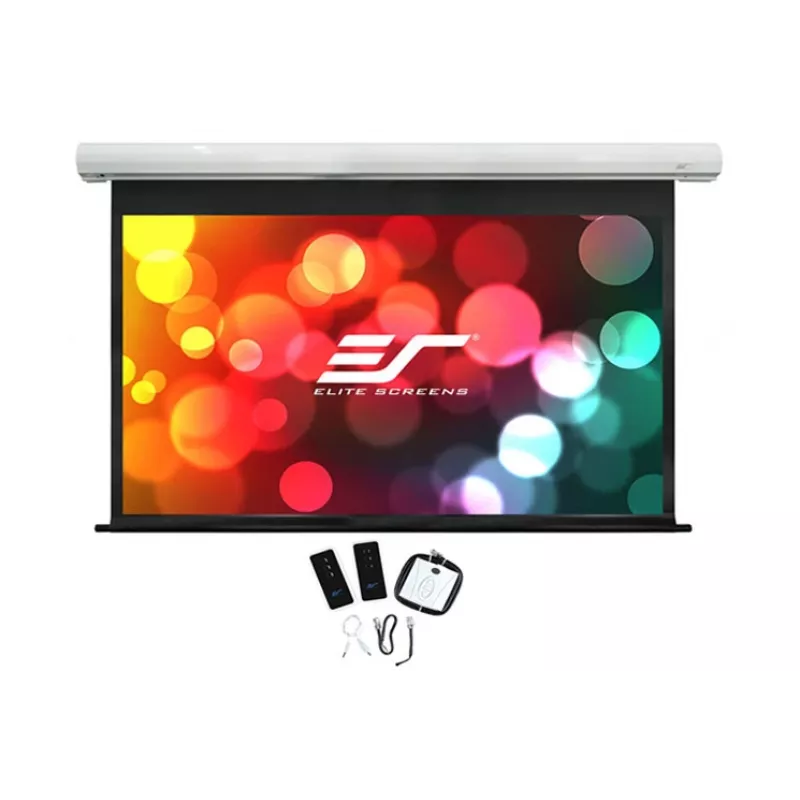

The projection surface combines MaxWhite FG material with GREENGUARD and GREENGUARD Gold certification, offering flame-retardant construction compliant with NFPA 701 and a flat, durable finish aided by a tab-tension system. Integrated RF/IR receivers, included remotes, a detachable 3-way wall keypad and RJ45 connectivity provide flexible control options. The unit supports plug & play installation without hardwiring, features silent synchronous motor operation with low power consumption, and includes extra top black masking for high-ceiling applications.

Suitable for

• Home theater viewing in 16:9 HDTV and 4K formats
• Business presentations and meeting rooms
• Educational environments and lecture halls
• Spaces requiring motorized, flush or ceiling-mounted screens

Key specifications

• Model: Elite Screens Saker SK100XHW-E12
• Diagonal: 100" (2.54 m)
• Viewable width: 2.21 m; viewable height: 1.245 m
• Aspect ratio: 16:9
• Screen material: MaxWhite Fiberglass (FG), 1.1 gain
• Viewing angle: 180°
• Compatibility: Active 3D and 4K Ultra HD ready
• Housing colour: White (curved enamel aluminium) with black masking borders
• Weight: 11.4 kg
• Certifications: GREENGUARD, GREENGUARD Gold; NFPA 701 (MaxWhite FG)

How to use

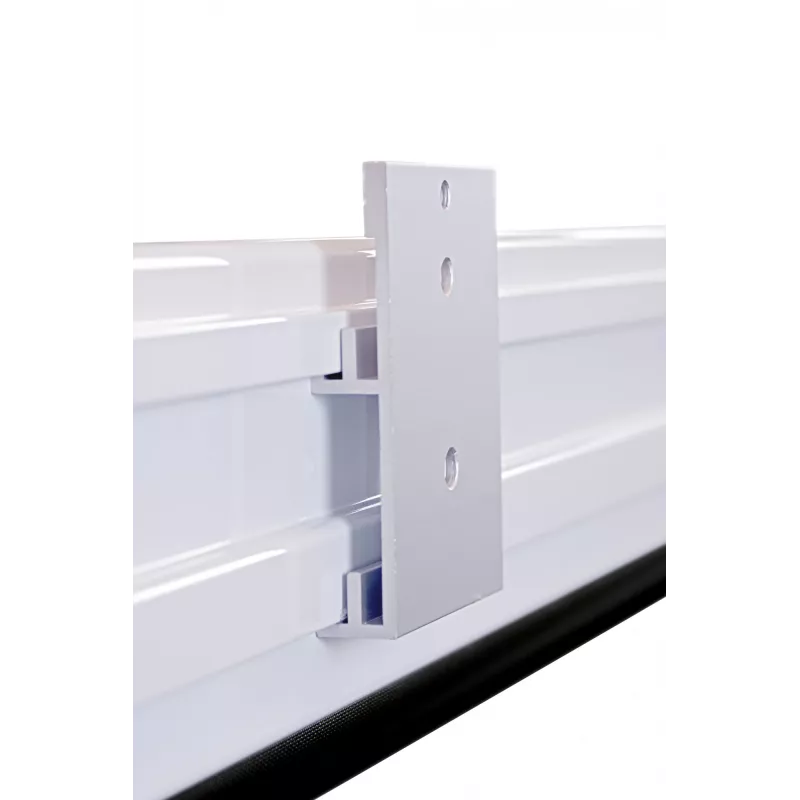

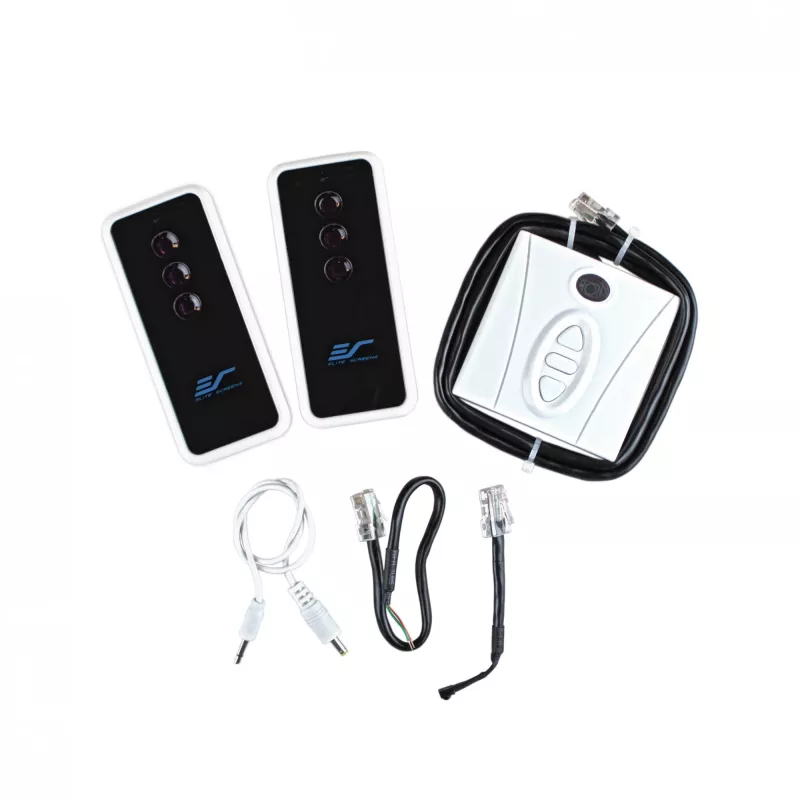

Install the included mounting hardware on a wall or ceiling following the provided instructions; the flush hidden wall mounts allow horizontal adjustment for centering. Connect power and use the included IR or RF remote control, the detachable 3-way wall switch keypad, or the 5–12 V wireless trigger to operate UP/STOP/DOWN functions. For integration with a third-party control system, use the RJ45 port. No hardwiring is required for standard operation.

Recommendations

Place the screen at a suitable height so the extra top masking border can be used for high ceilings and ensure the tab-tension system is unobstructed to maintain a flat projection surface. Use compatible active 3D or 4K sources and set projector geometry to match the 16:9 aspect ratio for optimal image quality.
