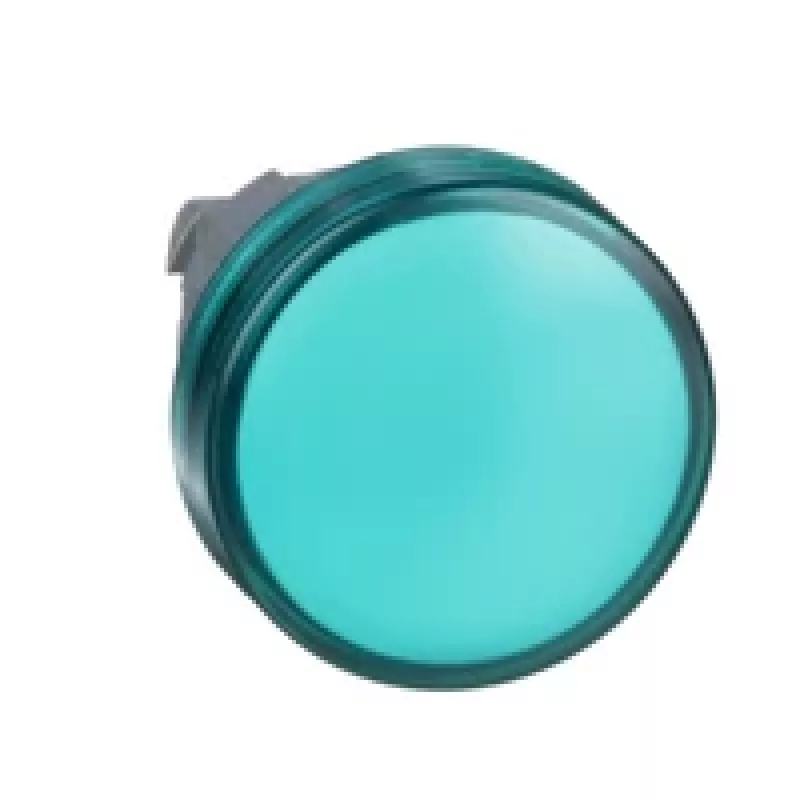

Schneider Electric Harmony XB4 spia luminosa ZB4BV033 verde LED 230-240V AC

The Schneider Electric Harmony XB4 ZB4BV033 is a high-quality pilot light designed for industrial control applications. Featuring a green protected LED light source and a chromium-plated metal bezel, this pilot light provides clear visual indication in demanding environments. With a supply voltage of 230-240 V AC and a 22 mm mounting cut-out, it is compatible with standard control stations.

Advantages

This pilot light offers exceptional durability with an electrical lifespan of 100,000 hours. Its robust construction includes an IP66, IP67, IP69, and IP69K front face protection, making it resistant to dust, water, and high-pressure cleaning. The screw clamp terminals ensure secure and reliable connections.

Suitable for

• Industrial control panels
• Machine building
• Process automation
• Heavy-duty applications requiring high ingress protection

Key specifications

• Product Range: Harmony XB4
• Product Type: Pilot Light
• Bezel Material: Chromium Plated Metal
• Mounting Cut-out Diameter: 22 mm
• Light Color: Green
• Light Source: Protected LED
• Supply Voltage: 230-240 V AC
• Frequency: 50/60 Hz
• Lens Type: Plain (Flush)
• Connection Type: Screw Clamp Terminals
• IP Protection Rating: IP66, IP67, IP69, IP69K (Front Face)
• NEMA Protection Rating: NEMA 13, NEMA 4X
• IK Protection Rating: IK06 (Front Face)
• Operating Temperature: -40 to 70 °C
• Electrical Durability: 100,000 hours
• Standards Compliance: IEC 60947-5-1, UL 508, CSA C22.2 No 14
• Head Type: Round
• Fixing Collar Material: Zamak

Recommendations

For optimal performance, ensure the supply voltage matches your system. This pilot light is ideal for applications requiring high visibility and resistance to harsh conditions.
