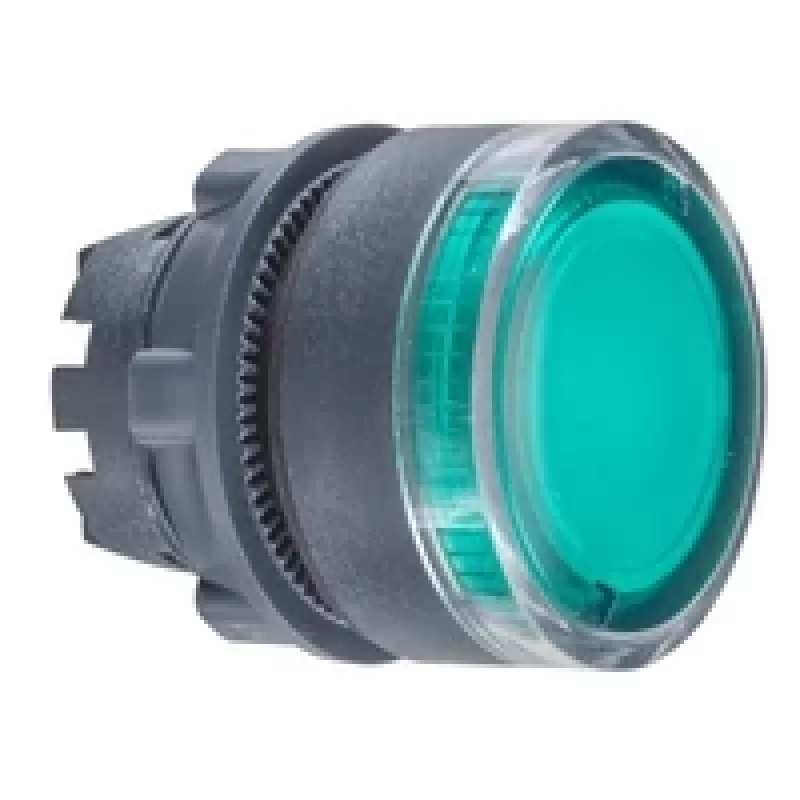

Schneider Electric Harmony XB5 attuatore pulsante a filo verde ZB5AW333

The Schneider Electric Harmony XB5 ZB5AW333 is a flush pushbutton actuator designed for industrial control applications. Part of the renowned Harmony XB5 series, this green actuator offers reliable performance and high durability in demanding environments.

Advantages

With a mechanical durability of 10,000,000 cycles and high resistance to chemical agents, this actuator ensures long-lasting operation. Its flush design prevents accidental activation, and the spring return mechanism provides automatic reset. The robust construction meets IP66, IP67, IP69, and IP69K protection ratings, making it suitable for harsh conditions including high-pressure washdowns.

Suitable for

• Industrial control panels
• Machinery and equipment control
• Automation systems
• Harsh environments requiring high ingress protection

Key specifications

• Product Type: Pushbutton Actuator
• Series: Harmony XB5
• Actuator Type: Flush, Spring Return
• Head Type: Flush, Unmarked
• Actuator Color: Green
• Bezel Material: Plastic
• Mounting Diameter: 22 mm
• IP Protection Rating: IP66, IP67, IP69, IP69K
• NEMA Protection Rating: NEMA 13, NEMA 4X
• Mechanical Durability: 10,000,000 cycles
• Operating Temperature: -40 to 70 °C
• Storage Temperature: -40 to 70 °C
• Vibration Resistance: 5 gn (10-500 Hz) conforming to IEC 60068-2-6
• Shock Resistance: 30 gn (18 ms), 50 gn (11 ms) conforming to IEC 60068-2-27
• Compatibility: For use with integral LED
• Standards: IEC 60947-5-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-1
• RoHS Status: Compliant

Recommendations

For optimal performance, pair this actuator with compatible Harmony XB5 contact blocks and LED modules. Ensure proper mounting in a 22 mm panel cutout and follow installation guidelines for maintaining IP ratings.
