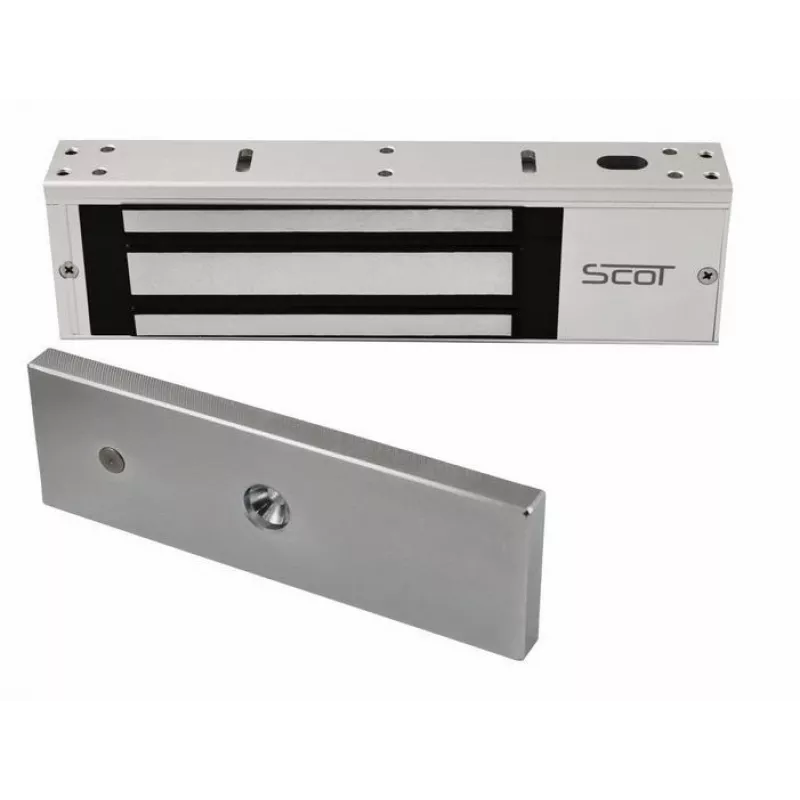

SCOT Signaling Solenoid Jumper EL-1200SL2

The SCOT Signaling Solenoid Jumper EL-1200SL2 is an electromagnetic door jumper with signaling, designed for internal use. It provides a maximum door pressure of 540 kg and operates on 12V DC or 24V DC power.

Key features

• Signaling: Yes (NO/NC contact), Hall effect sensor
• LED indicator light: Yes
• Purpose: Internal

Specifications

• Brand: SCOT
• MPN: EL-1200SL2
• Model: EL-1200SL2
• Max. door pressure: 540 kg
• Power supply voltage: 12V DC / 24V DC
• Current consumption: 600mA (12V DC) / 300mA (24V DC)
• Jumper dimensions (W x H x D): 265 x 76 x 41 mm
• Plate dimensions (W x H x D): 185 x 60 x 13.5 mm
