Sega circolare Einhell TE-CS 165

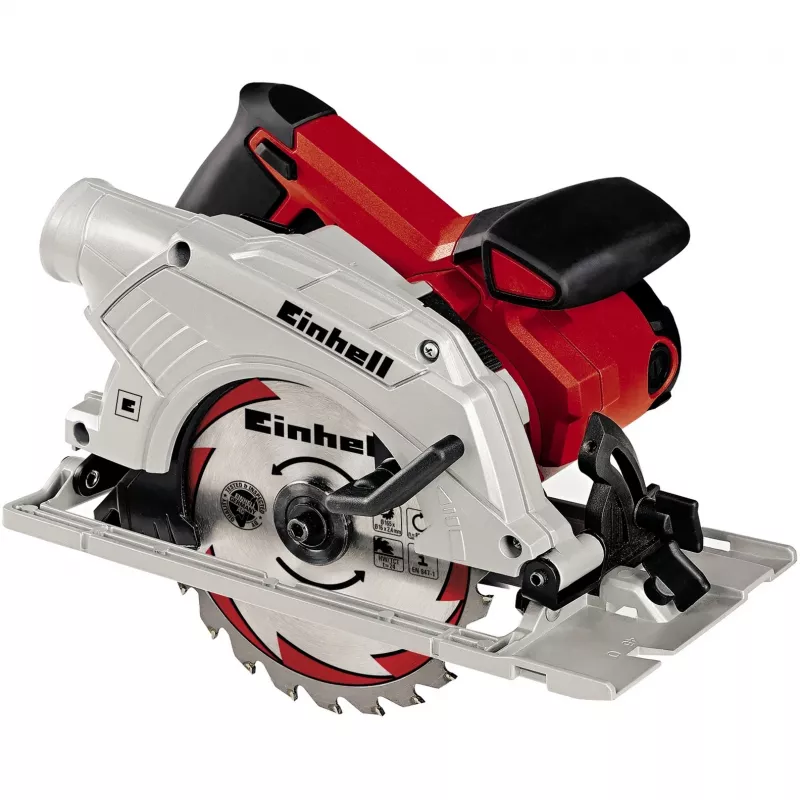

The Einhell TE-CS 165 circular saw is a compact, mains-powered handheld saw with a 1200 W motor and a high-quality carbide blade for fast, precise cuts. It accepts a 165 mm diameter blade with a thickness of 2.4 mm and can cut up to 55 mm at 90°. The tool features a sturdy aluminium soleplate, softgrip surfaces and an ergonomic additional handle for secure handling. It is compatible with Einhell guide rails and includes a dust extraction adapter for cleaner operation.

Advantages

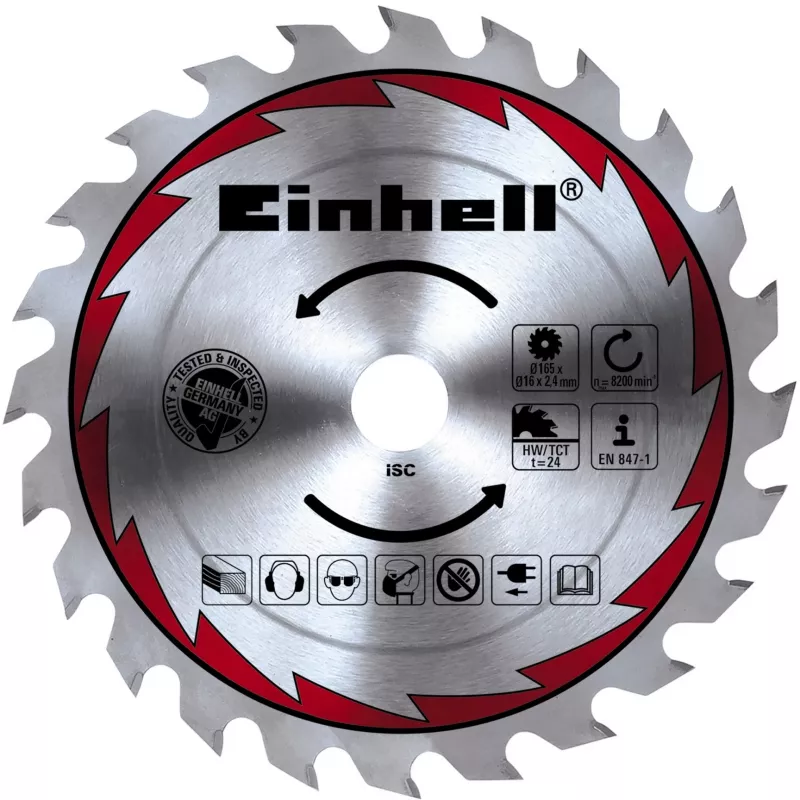

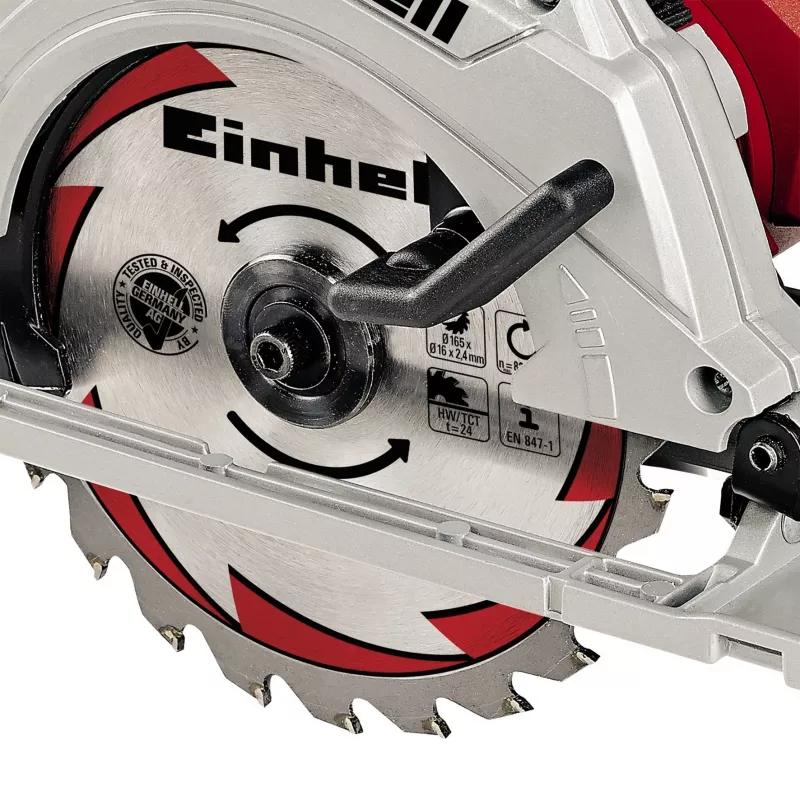

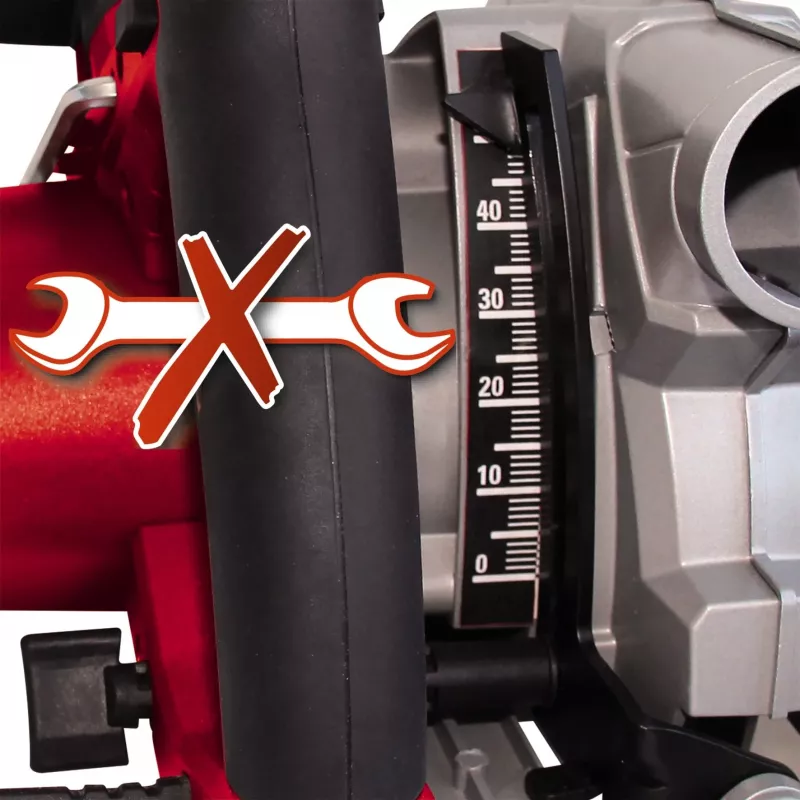

Toolless adjustments for cutting depth and bevel angle make setup quick and simple. The carbide saw blade provides fast cutting performance and is changed easily thanks to the blade/spindle lock; the blade-change key is stored on the housing. A parallel guide improves cutting accuracy while the aluminium soleplate gives a stable base. Softgrip surfaces on the handle and an ergonomic auxiliary handle increase comfort and control. The dust extraction adapter enables connection to a vacuum cleaner to reduce dust at the workplace.

Suitable for

• Crosscuts and rip cuts in solid wood and sheet materials
• Workshop and on-site carpentry work

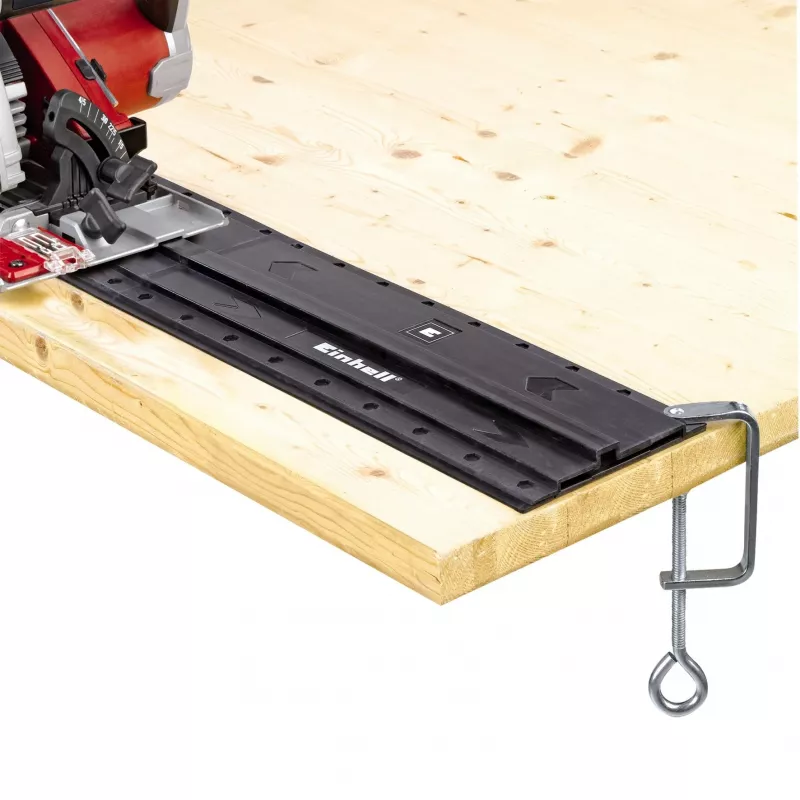

• Guided cutting with Einhell guide rails

Key specifications

• Manufacturer: EINHELL
• Model: TE-CS 165 (MPN: 4331010, EAN: 4006825599565)
• Motor power: 1200 W
• No-load speed: 5500 min⁻¹
• Blade diameter: 165 mm
• Blade thickness: 2.4 mm
• Max cutting depth at 90°: 55 mm
• Supply voltage: 230 V (AC)
• Vibration emission: 6.93 m/s²
• Dimensions (W × D): 248 × 335 mm

How to use

Fit a suitable 165 mm carbide blade and secure it using the spindle lock; use the blade-change key stored on the housing. Set the desired cutting depth and bevel angle using the toolless adjustment controls, then align the parallel guide or guide rail. Hold the saw by the main and auxiliary softgrip handles, switch on the tool and feed it steadily through the workpiece. Connect a vacuum cleaner to the dust extraction adapter if dust removal is required.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection and dust mask) and ensure the workpiece is securely clamped. Match the blade type and tooth geometry to the material being cut for optimal results. For guided, straight cuts use the Einhell guide rail compatible with this model.
