Sega Metabo KGS 216 M SET

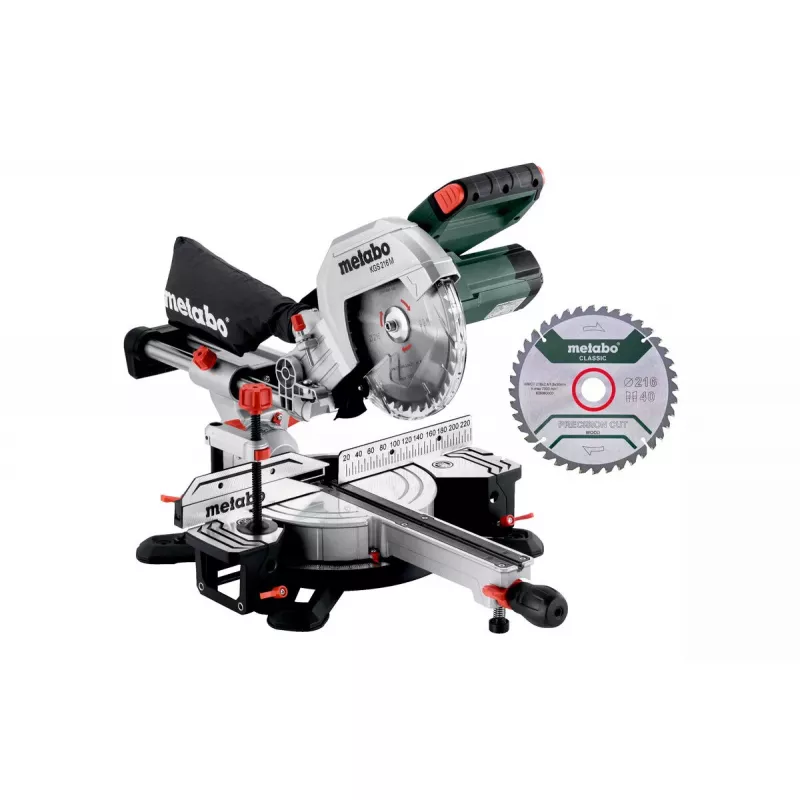

The Metabo KGS 216 M SET is a mobile sliding crosscut and mitre saw designed for precise, flexible wood and panel cutting. It combines a sliding function and a tilting saw blade to deliver large cutting capacity and versatile angled cuts. The robust die-cast aluminium construction, integrated dust scoop and clear operating layout support reliable daily use on site or in the workshop.

Advantages

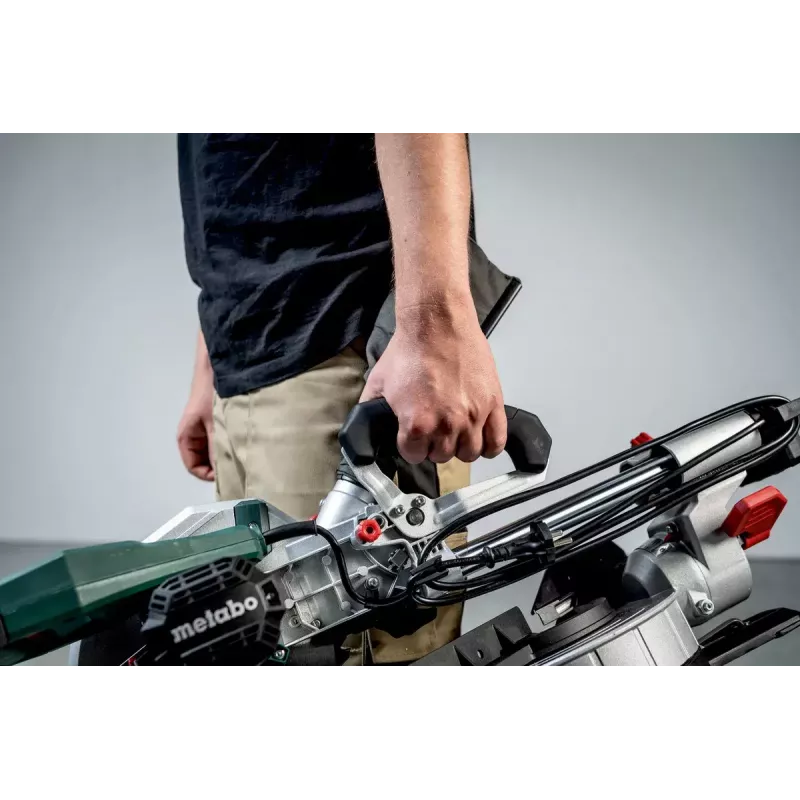

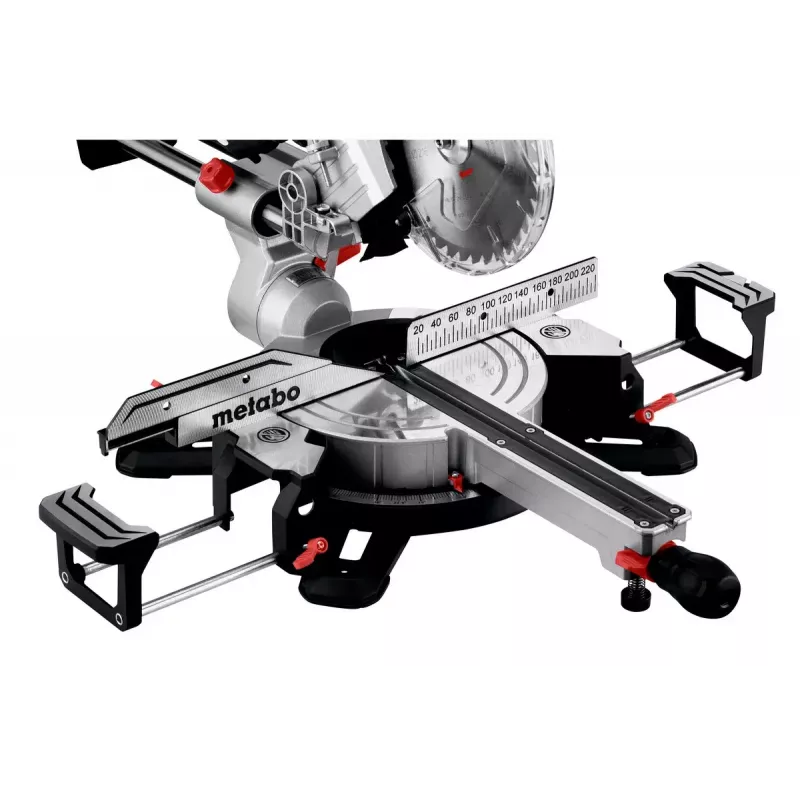

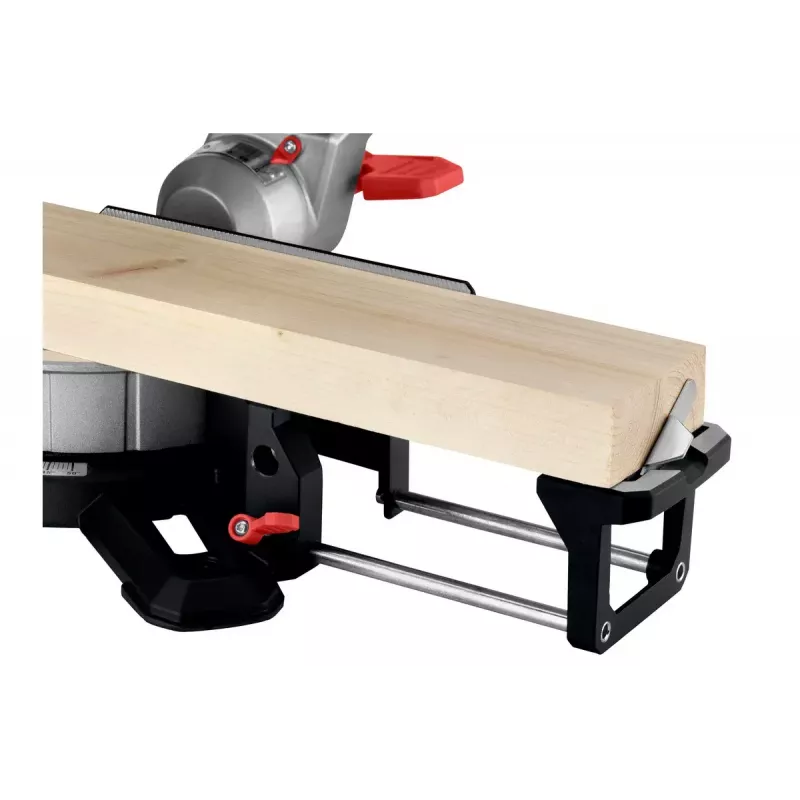

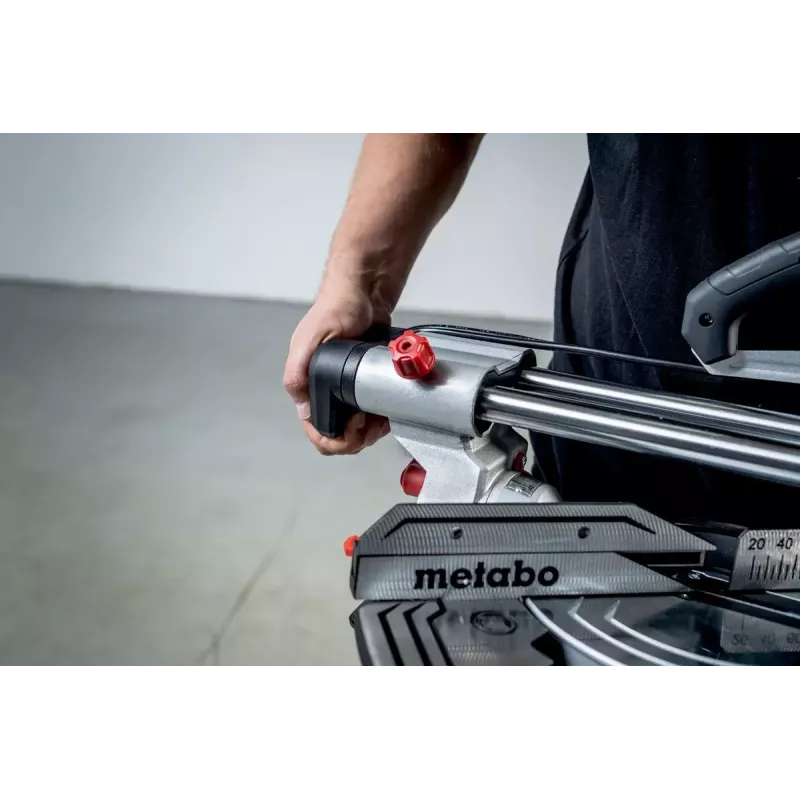

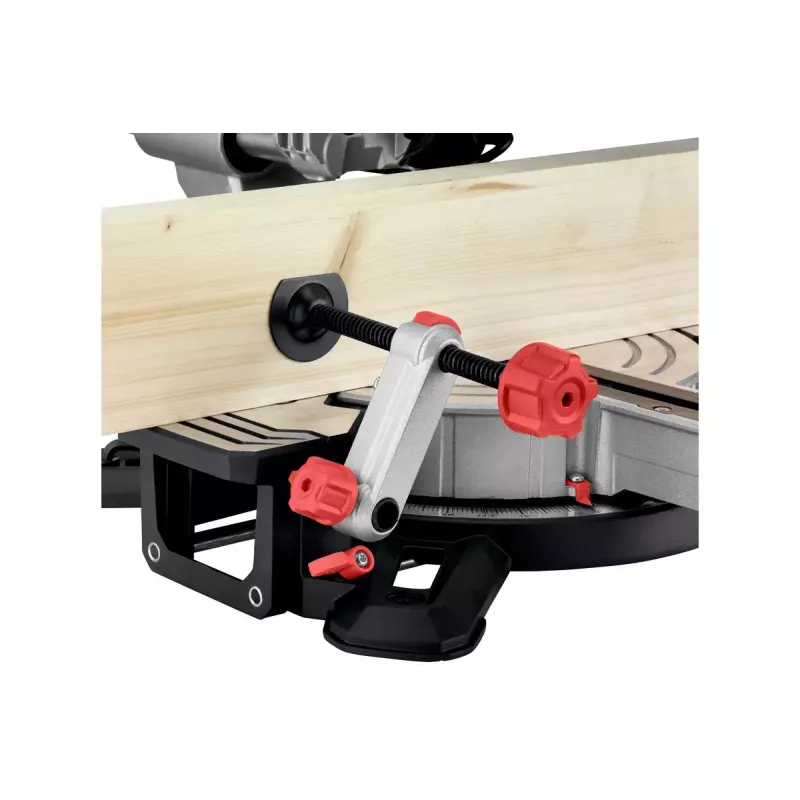

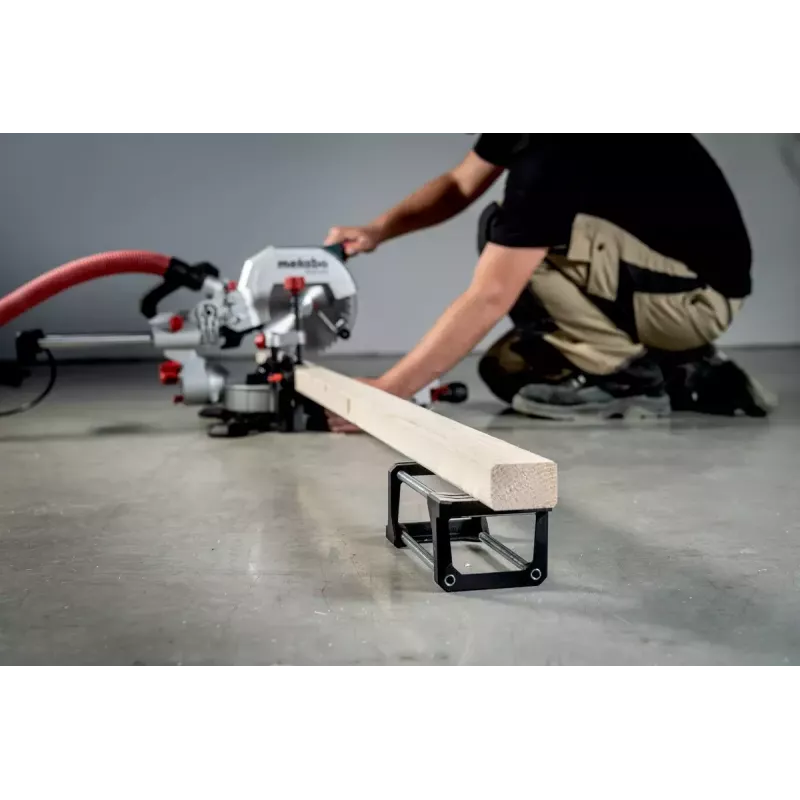

The saw offers a Precision Cut Line (PCL) LED shadow line for accurate cuts without frequent realignment, and a turntable with indexed stop points for fast, repeatable mitre settings. A saw blade inclination range from -2° to 47° enables undercuts and bevel cuts. Features such as soft start, effective dust extraction, extendable and removable table wings, a quick-action clamp and a depth guide improve safety and usability. Ergonomic handles allow carrying the unit with one or two hands.

Suitable for

• Crosscutting and mitre cutting of timber and panel materials

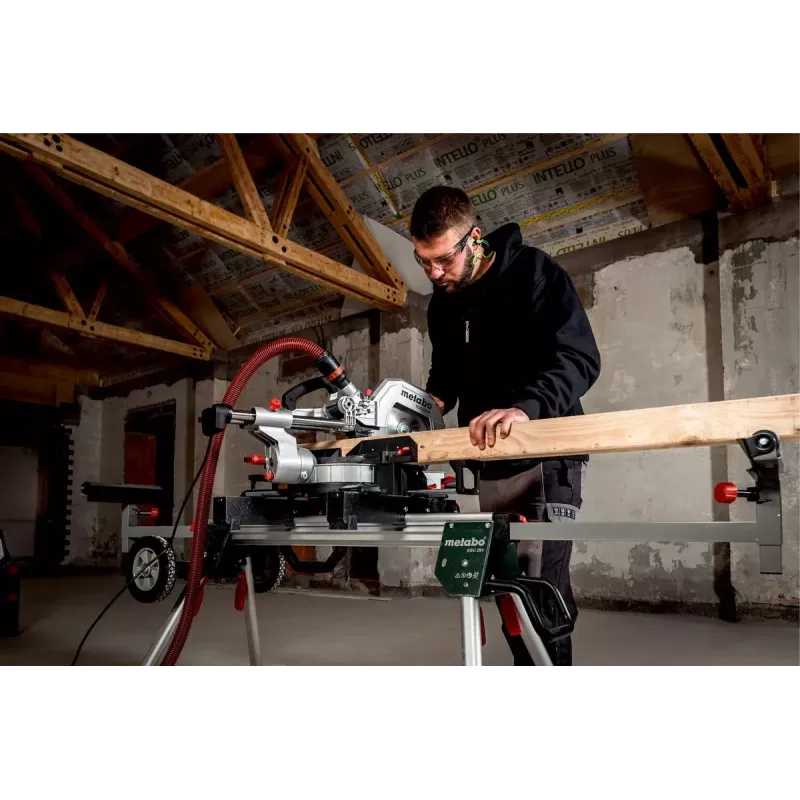

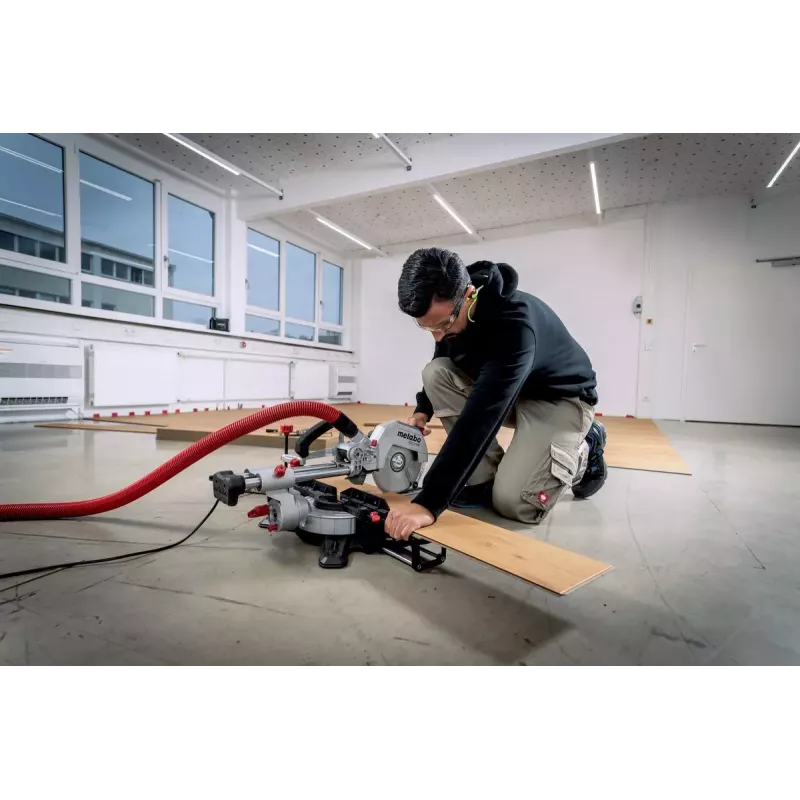

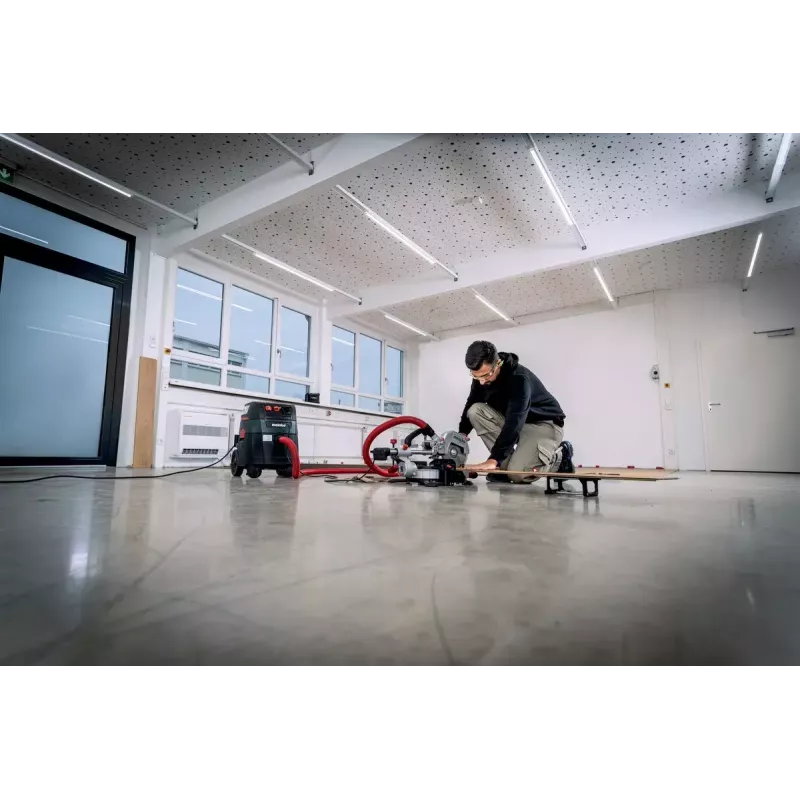

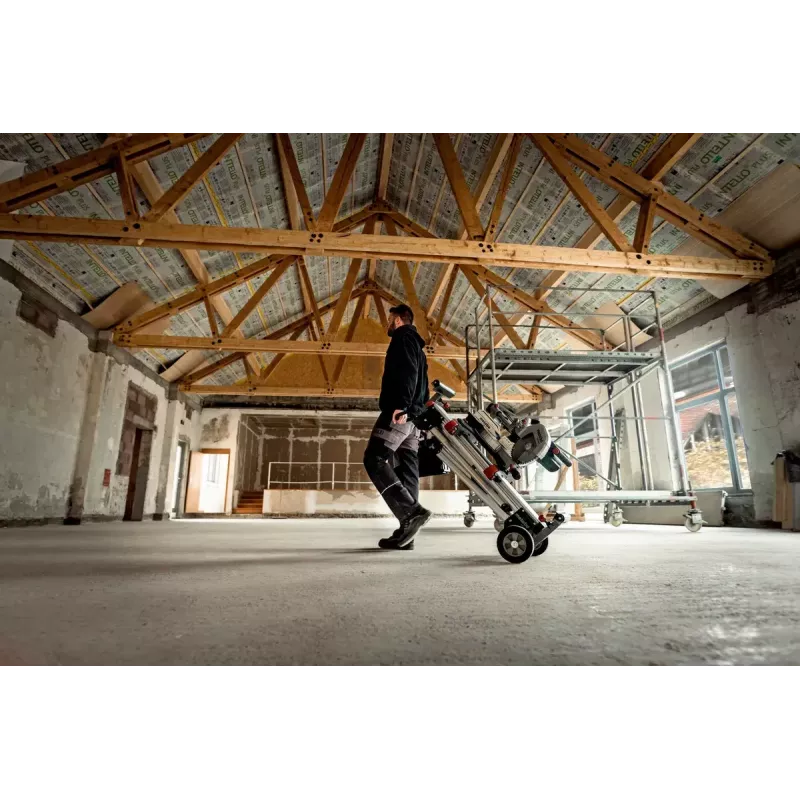

• On-site carpentry and renovation work
• Workshop use for furniture and joinery projects
• Accurate angled cuts and undercuts

Key specifications

• Maximum cutting width 90°/45°: 305 mm / 215 mm (12" / 8 1/2")
• Maximum cutting depth 90°/45°: 70 mm / 40 mm (2 3/4" / 1.57")
• Rated input power: 1,200 W (S1 100%: 1,200 W; S6 20%: 1,500 W)
• Maximum idle speed: 5,000 RPM
• Blade diameter: 216 mm (21.6 cm)
• Blade thickness: 3 mm
• Mitre range: indexed turntable with common stops; left tilt to 47°; tilt range -2° to 47°
• Dimensions (W × D × H): 710 × 476 × 512 mm
• Order no.: 613216900, EAN: 4061792225916

How to use

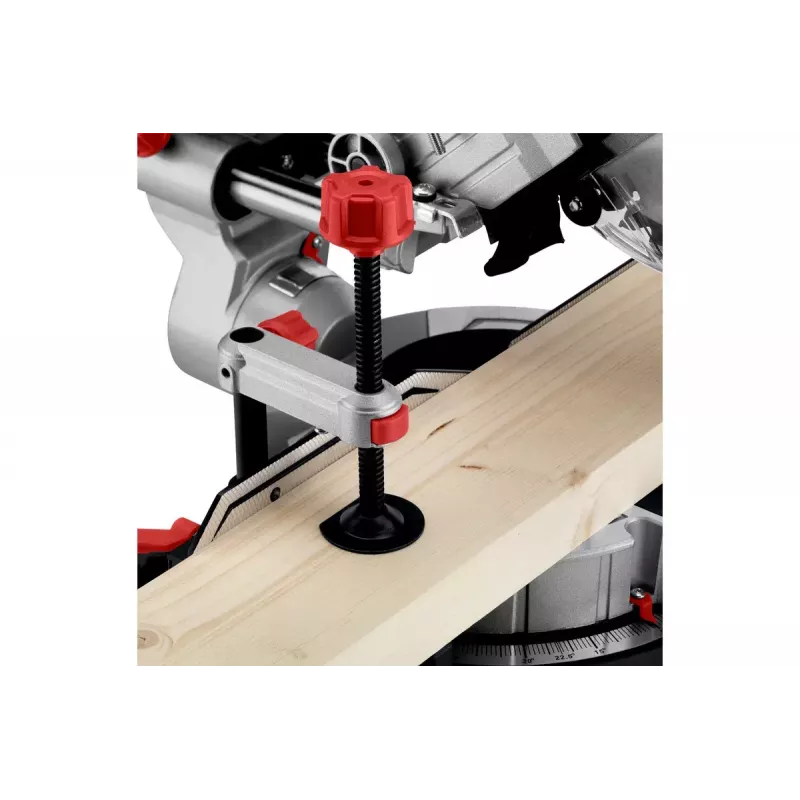

Place the Metabo KGS 216 M SET on a stable, level surface and secure any extendable table wings if required for longer work pieces. Fit the appropriate saw blade and check that the blade guard and dust extraction port are correctly mounted. Select the required mitre and bevel angles using the indexed turntable and tilt control, then clamp the work piece with the quick-action clamp. Start the saw and allow the soft-start to bring the blade up to speed before making a controlled sliding crosscut. Use the depth guide when cutting grooves. After cutting, wait for the blade to stop completely before removing the work piece and performing any adjustments.

Recommendations

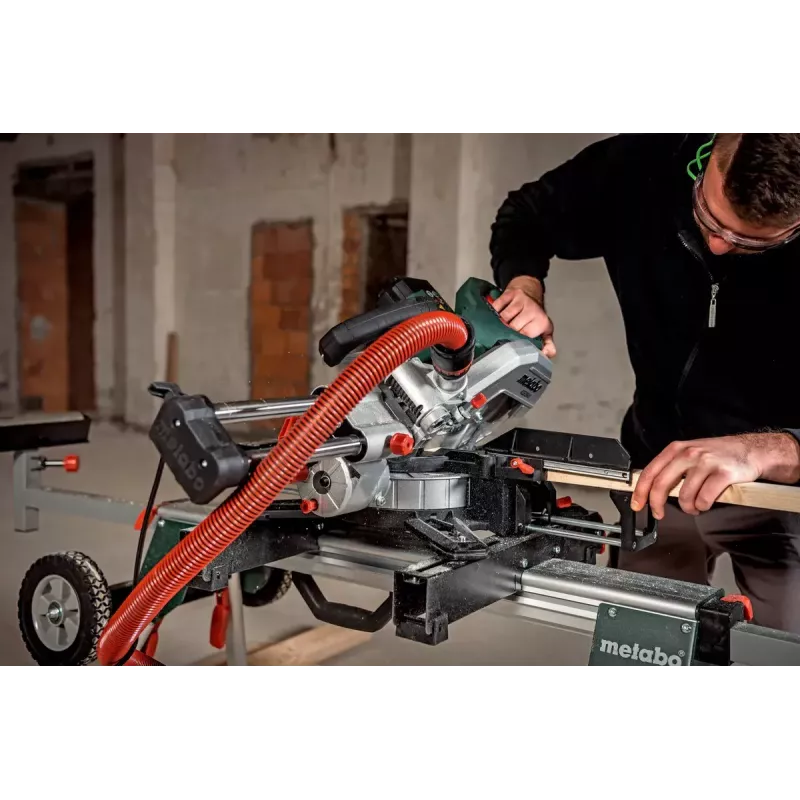

The saw is intended for cutting wood and wood-based panels; use blades suited to the material and keep the dust extraction connected for efficient debris removal. Regularly inspect and maintain the blade, motor ventilation and moving parts, and follow Metabo safety instructions and local regulations when operating the machine.
