Sensore di inclinazione Omron D7E-3 – modulo di rilevamento inclinazione D7E-3

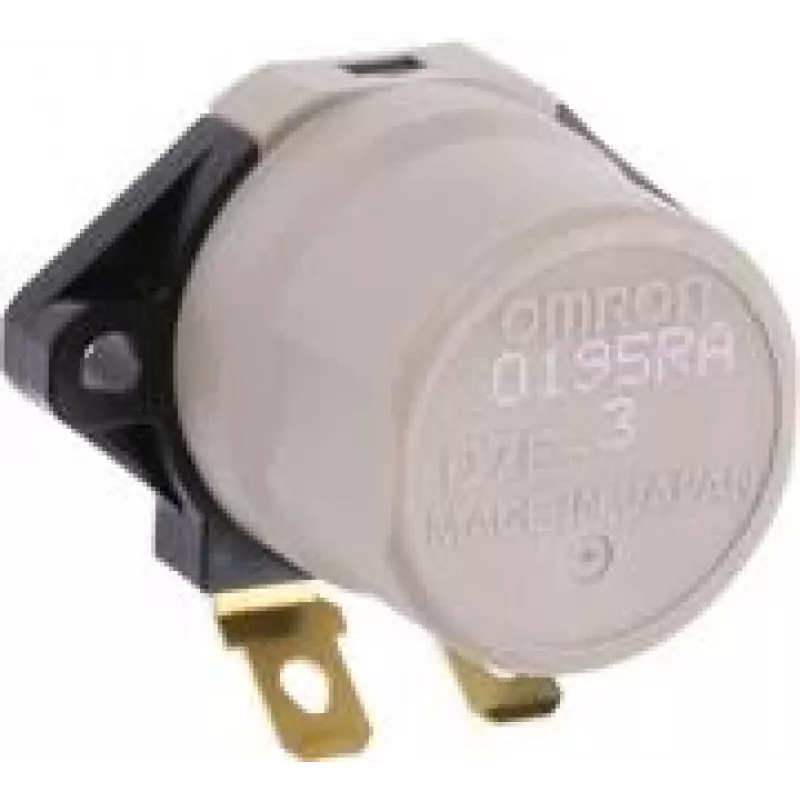

Omron D7E-3 is a compact tilt sensor designed to detect angular displacement and report inclination changes in equipment and systems. The module provides a simple, single-axis detection method that converts a change in orientation into a switching output, enabling position sensing, safety interlocks, and status monitoring in machines and devices. The sensor’s form factor and mechanical design make it suitable for integration into control panels, housings or assemblies where reliable tilt detection is required.

Advantages

The D7E-3 offers straightforward tilt detection with consistent switching behavior and a compact footprint that facilitates installation in confined spaces. Its mechanical simplicity reduces the need for complex signal processing, while robust construction supports use in industrial environments. The sensor’s predictable response to angular changes helps simplify system diagnostics and reduces integration time compared with multi-axis or analog tilt measurement devices.

Suitable for

• Equipment orientation monitoring in industrial machinery
• Safety interlock and limit-detection applications
• Automation systems requiring simple angular position feedback
• Portable devices and enclosures where space is limited

Key specifications

• Detection type: single-axis tilt/inclination switching
• Output: mechanical/electrical switch suitable for digital input
• Physical size: compact module designed for panel or chassis mounting
• Operating principle: mechanical/pendulum or ball-based tilt element providing on/off switching at a defined angle
• Environmental suitability: intended for industrial use with mechanical robustness for typical factory conditions

How to use

Mount the tilt sensor in the orientation that corresponds to the required detection axis and secure it to the panel or chassis using appropriate fasteners. Connect the sensor output to a compatible digital input on the control system or safety circuit, observing correct wiring polarity and any common reference required by the installation. Adjust the mounting angle so that the sensor’s switching threshold aligns with the desired trip angle for your application. After installation, perform functional tests to verify switching behavior at the expected tilt positions and confirm reliable operation under working conditions.

Recommendations

Place the sensor away from strong vibrations and impacts to avoid false triggering, and ensure the housing provides protection from dust and liquids according to the installation environment. Validate switching thresholds during commissioning and include the sensor in routine maintenance inspections to confirm mechanical integrity and connector reliability.
