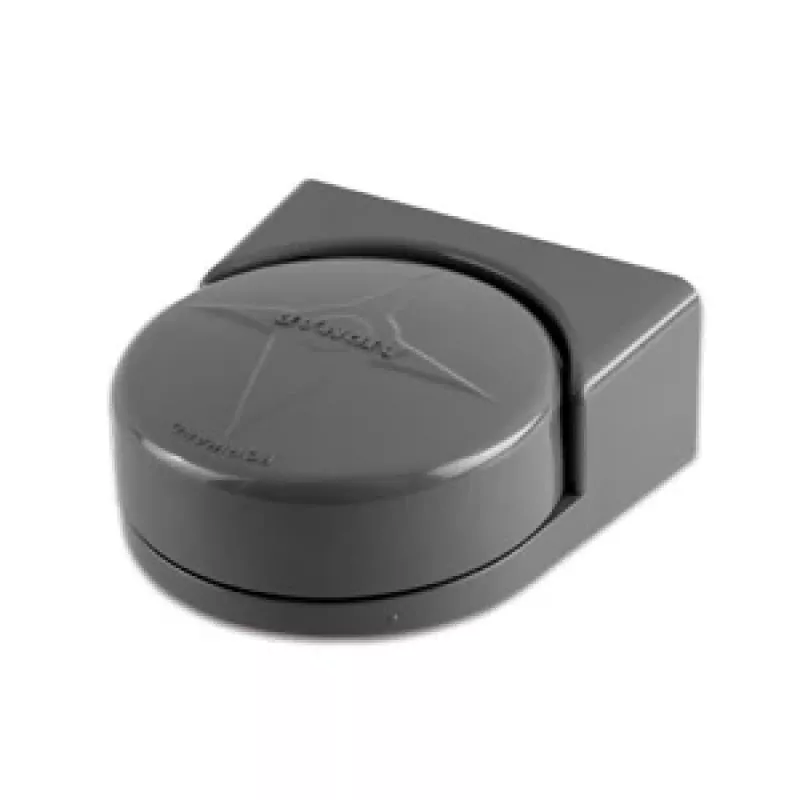

Sensore di rotta marino Garmin 010-11417-00

For sailors and powerboaters navigating coastal waters, accurate heading data is essential for autopilot performance, radar overlay alignment, and chart stabilization. The Garmin Marine Heading Sensor delivers solid-state heading information with ±3° accuracy, ensuring your marine electronics work in harmony. It connects directly to your NMEA 2000 network with a 6 ft drop cable, drawing power from the bus (9-16 Vdc) and consuming only 150 mA. With an IPX7 waterproof rating and a wide operating temperature range, it withstands the harsh marine environment. The sensor outputs at 10 Hz for real-time responsiveness and supports PGN 127250 for vessel heading. Mount it on any flat surface, keeping it at least 20 inches from compasses and magnetic equipment. Automatic magnetic variation compensation means no manual calibration is required. Ideal for autopilot heading, radar overlay, and chart stabilization on recreational and light commercial vessels.

Key specifications

• Heading accuracy: ±3 degrees
• Output refresh rate: 10 Hz
• Communication protocol: NMEA 2000
• Power input: 9-16 Vdc via NMEA 2000
• NMEA 2000 LEN: 3
• Water resistance: IPX7
• Operating temperature: -15°C to 70°C (5°F to 158°F)
• Cable: NMEA 2000 drop cable, 6 ft (1.83 m)
• Mounting: Surface mount
• Sensor technology: Solid-state
• Compass safe distance: 20 inches (50 cm)
• Power consumption: Max 150 mA
• Magnetic variation compensation: Automatic
• Supported PGNs: 127250 (Vessel Heading)

Why choose it

This heading sensor is built for reliability and accuracy in demanding marine conditions. Its solid-state design eliminates moving parts, reducing maintenance and ensuring long-term performance. Automatic magnetic variation compensation simplifies installation—no manual calibration needed. The NMEA 2000 connectivity ensures seamless integration with your existing marine electronics, while the IPX7 waterproof rating provides peace of mind in wet environments. With a 10 Hz update rate, your autopilot and radar overlay receive real-time heading data for precise operation.

Ideal use cases

• Autopilot heading reference for precise course keeping
• Radar overlay alignment for accurate target positioning
• Chart stabilization to reduce display rotation and improve readability
• Recreational and light commercial vessels operating in coastal waters

Good to know

Mount the sensor on any flat surface, ensuring it is at least 20 inches (50 cm) away from compasses and other magnetic equipment to avoid interference. The sensor draws power directly from the NMEA 2000 bus, so no separate power supply is needed. It supports PGN 127250 for vessel heading, making it compatible with a wide range of marine displays and autopilots. The operating temperature range of -15°C to 70°C (5°F to 158°F) allows use in various climates.
