Server seriale industriale 1 porta PLANET IP30

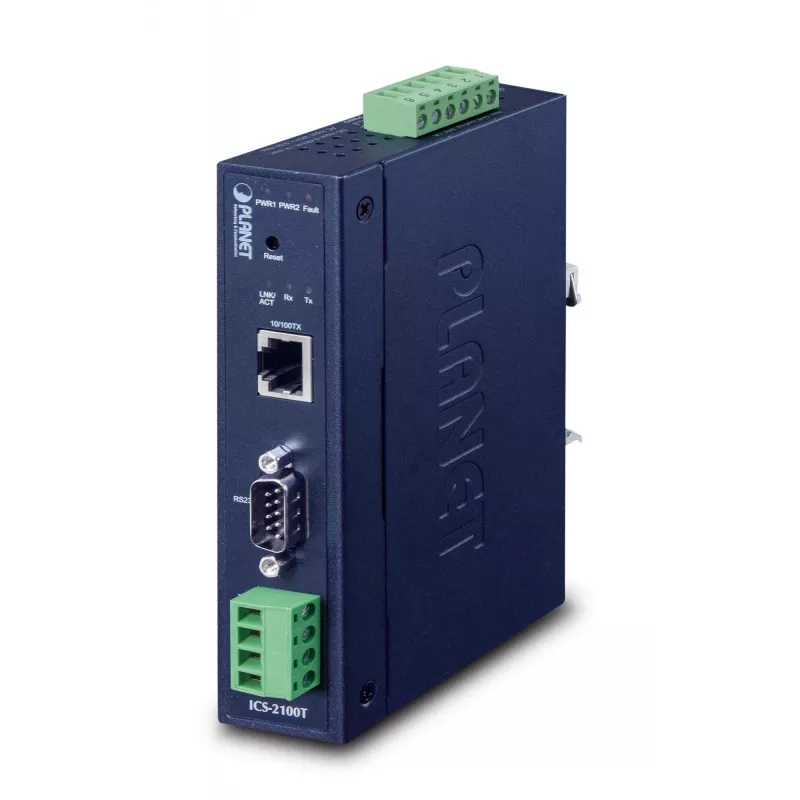

The PLANET ICS-2100T Industrial 1-Port Serial Server converts RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet, enabling existing serial devices and software systems to be connected to a TCP/IP network without replacement. Housed in a compact IP30 metal case (32 x 87.8 x 135 mm) with LED indicators, the unit supports one 10/100BASE-TX RJ45 port, a wide operating temperature range of -40 to 75 °C, and a dual power input design (9–48 V DC / 24 V AC) for reliable industrial deployment.

Advantages

The ICS-2100T provides a cost-effective and time-saving solution for integrating serial devices into Ethernet networks while preserving existing hardware and software. It offers multiple remote management interfaces including web, telnet and virtual COM (VCOM) modes, hardware fault alarm and event alerts for faster diagnosis, strong immunity to electromagnetic interference and electrical surges, and flexible mounting (DIN-rail or wall) to save cabinet space.

Suitable for

• Connecting legacy RS232/RS422/RS485 devices to Ethernet networks
• Industrial automation and control systems
• Traffic control cabinets and outdoor roadside equipment
• Remote monitoring and management of field devices

Key specifications

• Model: PLANET ICS-2100T
• Serial interfaces: RS232, RS422, RS485 (1 port)
• Ethernet: 10/100BASE-TX, RJ45 (1 port)
• Power input: 9–48 V DC / 24 V AC (dual power input)
• Operating temperature: -40 to 75 °C
• Housing: IP30 metal case; mounting: DIN-rail or wall
• Dimensions: 32 x 87.8 x 135 mm; Weight: 0.392 kg

How to use

Install the ICS-2100T on a DIN-rail or mount it on a wall and connect the serial device to the appropriate RS232/RS422/RS485 port. Connect the RJ45 port to the Ethernet network and provide power using one or both supported power inputs (9–48 V DC or 24 V AC). Configure network settings and serial parameters via the web interface, telnet or VCOM mode according to the requirements of the connected equipment. Verify LED indicators to confirm system status and connectivity.

Recommendations

For reliable long-term operation in industrial environments, use proper surge protection on external cabling, ensure tight mounting in a ventilated cabinet or enclosure, and configure the alarm and event alert functions to notify operators of power or connection faults.
