Set di montaggio DeLOCK 66087 plastica verde

Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
Set di montaggio DeLOCK 66087 plastica verde
41,91 €
PDF
PDF
Stock 66 Codice 1741416 Modello 66087 Garanzia 2 anni

Spedizioni e resi

Consegna stimata lunedì 7 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

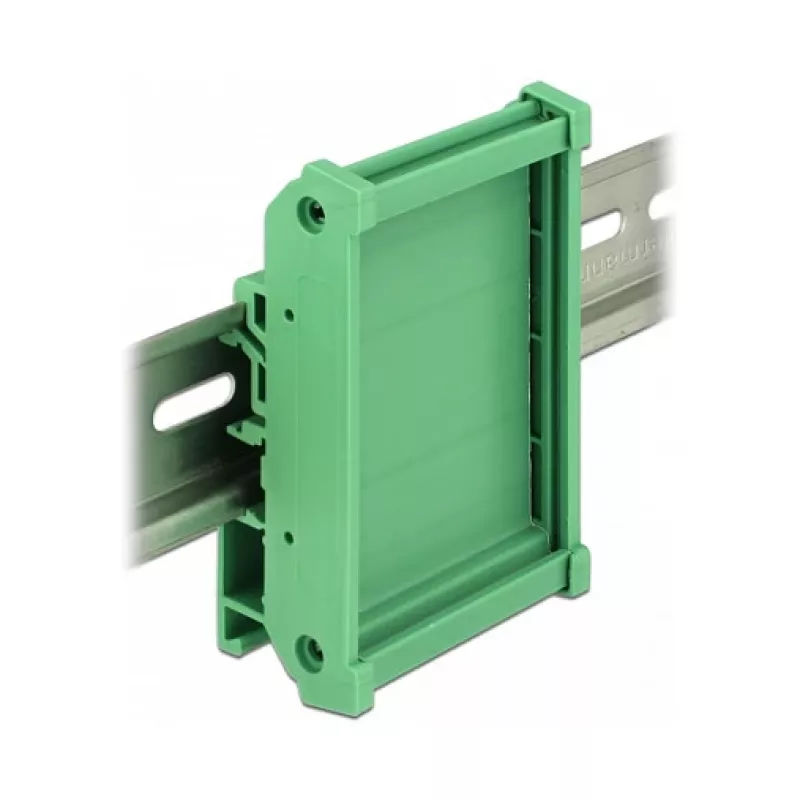

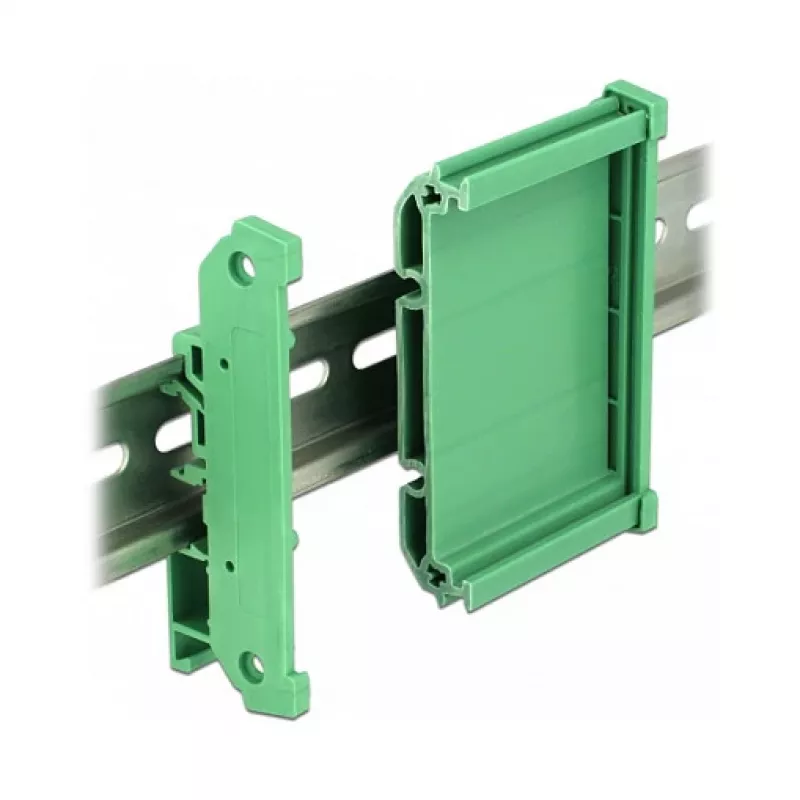

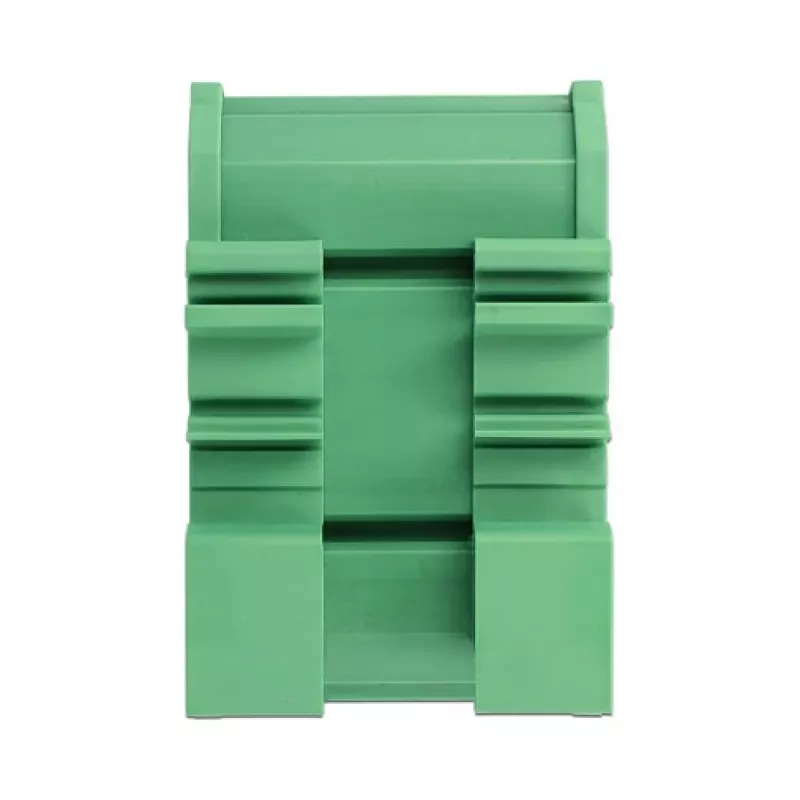

This board holder by Delock is designed to mount printed circuit boards with a width of 72 mm onto standard 15 mm or 35 mm DIN rails. Made from green plastic, the mounting kit 66087 is lightweight and can be shortened to fit different installation depths; after trimming, the two end caps can be reattached to restore a finished appearance.

Advantages

The DeLOCK 66087 mounting kit provides a stable and reusable mounting solution for 72 mm wide circuit boards. Its plastic construction offers corrosion resistance and low weight while remaining sufficiently robust for electrical enclosure use. The holder’s length is adjustable by cutting to size, and the included end caps can be repositioned after modification to protect board edges.

Suitable for

  • Mounting 72 mm wide printed circuit boards
  • DIN rail installations (15 mm and 35 mm rails)
  • Control cabinets and electrical enclosures
  • Prototyping and small-scale production assemblies

Key specifications

  • Manufacturer: DELOCK
  • Model / MPN: 66087
  • EAN: 4043619660872
  • Material: green plastic
  • Compatible board width: 72 mm
  • DIN rail compatibility: 15 mm and 35 mm
  • Adjustable length: can be shortened and fitted with end caps

How to use

Measure the required mounting depth and shorten the plastic holder to the appropriate length using a suitable cutting tool. Place the circuit board into the holder and snap or attach the end caps to both ends. Mount the assembled holder onto a 15 mm or 35 mm DIN rail by engaging the rail clip until it locks in place. Verify that the board is secure and that there is adequate clearance for wiring.

Recommendations

When shortening the holder, wear appropriate eye protection and deburr cut edges before reattaching end caps. Ensure the board and holder remain within the operating temperature and mechanical limits of the enclosure.
Punti salienti
  • Mounting 72 mm wide printed circuit boards
  • DIN rail installations (15 mm and 35 mm rails)
  • Control cabinets and electrical enclosures
  • Prototyping and small-scale production assemblies
  • Manufacturer: DELOCK
  • Model / MPN: 66087
  • EAN: 4043619660872
  • Material: green plastic
  • Compatible board width: 72 mm
  • DIN rail compatibility: 15 mm and 35 mm
  • Adjustable length: can be shortened and fitted with end caps

Specifiche

Specifiche
Colore del prodotto
Green
Lunghezza
500 mm
Materiale
Plastica
Paese di origine
China
Peso
0.67 kg
Temperatura di stoccaggio (T-T)
-10 - 70

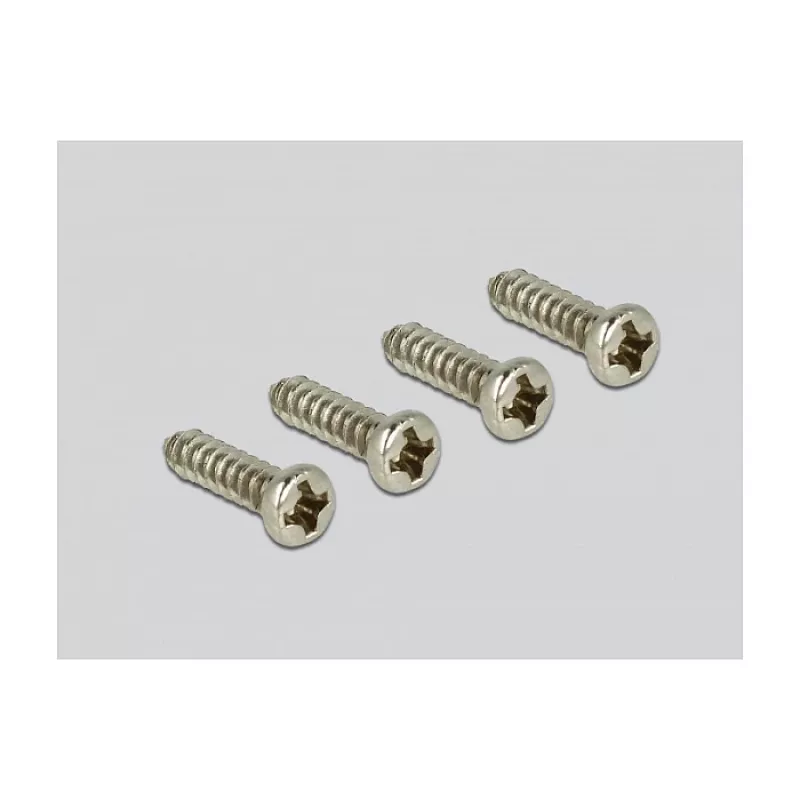

Viti incluse
Sì
