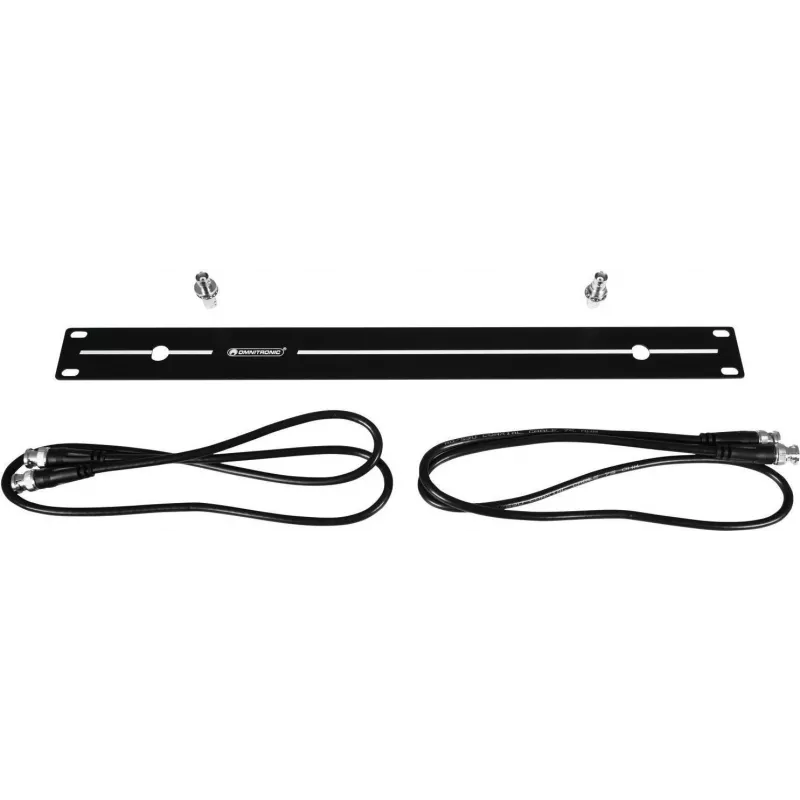

Set rackmount BNC Omnitronic 13063048 — pannello 19 pollici 1HE per connettori BNC

Omnitronic 19" 1U rackmount BNC panel provides a compact and reliable solution for organizing BNC connections in professional audio, video and broadcast racks. The unit is designed to fit standard 19-inch rack systems and offers a row of front-access BNC connectors mounted in a 1U metal panel for stable contact and easy cable routing. The panel supports neat cable management, helps reduce connector strain and enables fast access to signal lines during setup or maintenance.

Advantages

The rackmount BNC set delivers consistent mechanical grounding and firm connector retention in a low-profile 1U housing manufactured for rack compatibility. Front-access placement of BNC ports simplifies installation and troubleshooting without requiring rear access to the rack. The metal panel construction increases durability and EMI resistance in mixed-signal environments common to studios and broadcast installations.

Suitable for

Key specifications

How to use

Install the panel into an available 19-inch rack space using four rack screws aligned with the rack rails. Route BNC cables to the front-mounted connectors and secure each cable to ensure a reliable signal path; avoid excessive bending near the connector to reduce strain. Use the panel as a patch point for routing coaxial signals between devices, and label cable positions externally if frequent reconfiguration is expected. For safety, power down associated equipment when making multiple cable changes.

Recommendations

Maintain regular visual inspections of connector integrity and cable strain relief. Use appropriate-quality BNC cables and keep cable lengths as short as practical to minimize signal loss. When using in mixed-signal or high-interference environments, ensure proper grounding of the rack to reduce potential noise.
