Set viti e tasselli Fischer 567935 100 pezzi nylon foro 6 mm

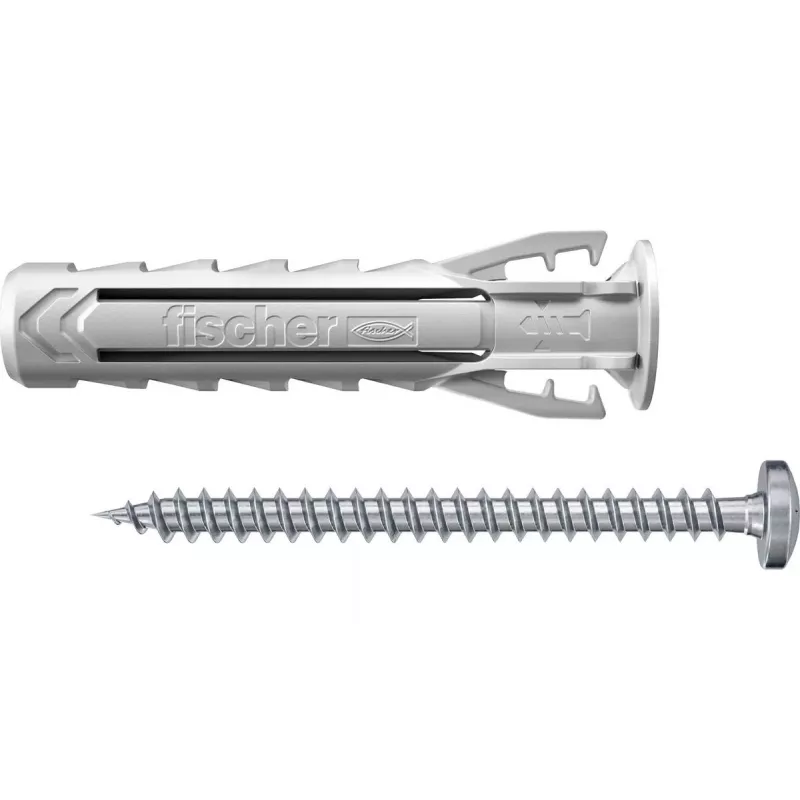

Fischer SX Plus nylon wall plugs (6 mm) in a 100-piece kit are designed for secure fastening in solid and perforated building materials such as concrete, sand-lime brick, autoclaved aerated concrete, and masonry. Supplied with matching screws, these plugs use 4-way expansion to transfer forces into the base material and provide reliable anchoring for a variety of applications. The kit is intended for a 6 mm drill hole and requires a minimum embedment depth of 45 mm; compatible with screws from approximately 4.5 mm diameter depending on fixture thickness.

Advantages

The 4-way expansion ensures optimum force transmission into the building material and delivers high holding values in solid and perforated substrates. Special fixing wings pre-fix the screw in the plug so both hands remain free during installation, which is helpful for overhead work. The expansion-free plug neck prevents expansion forces at the material surface while screwing in, reducing the risk of damage to tiles or plaster. A pronounced plug edge stops the anchor from slipping deeper into the drill hole, and the plug’s shape allows easy insertion with a few light hammer blows. Noticeable tightening torque indicates correct installation and helps avoid overtightening.

Suitable for

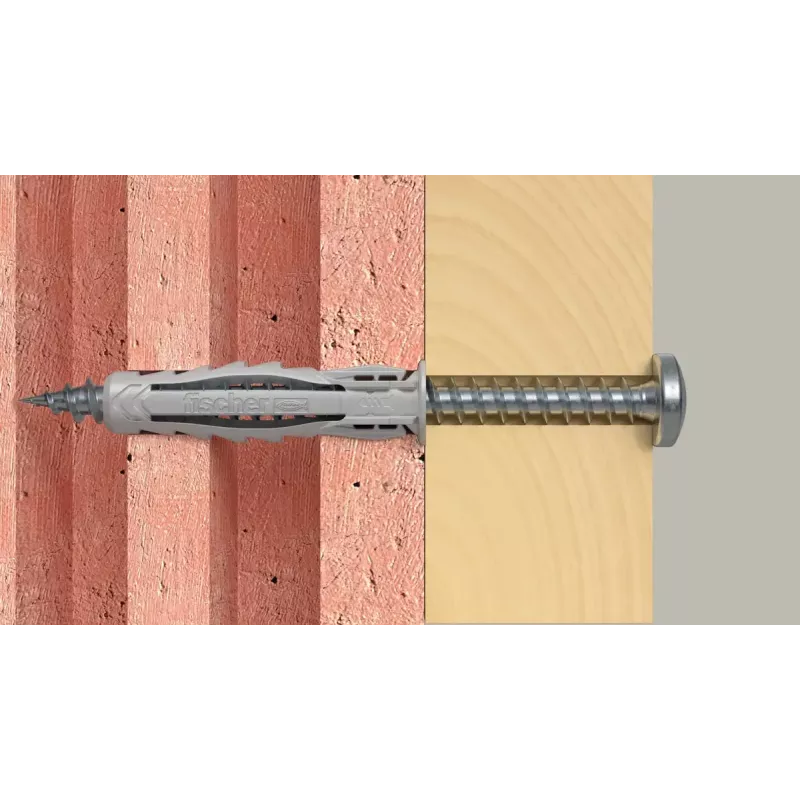

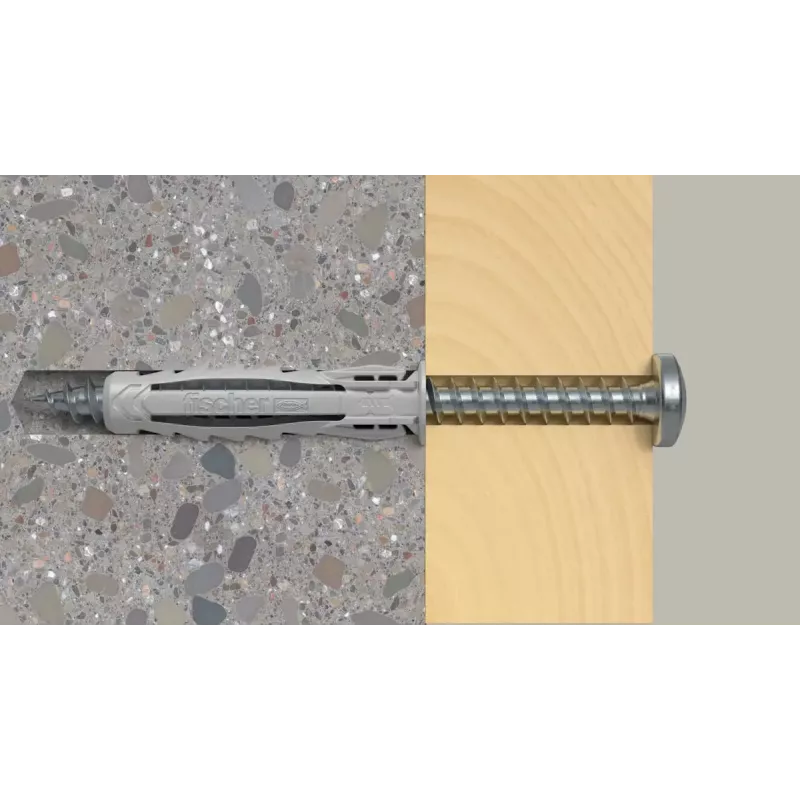

• Concrete and solid masonry
• Sand-lime brick and autoclaved aerated concrete (AAC)
• Perforated brick and cavity blocks

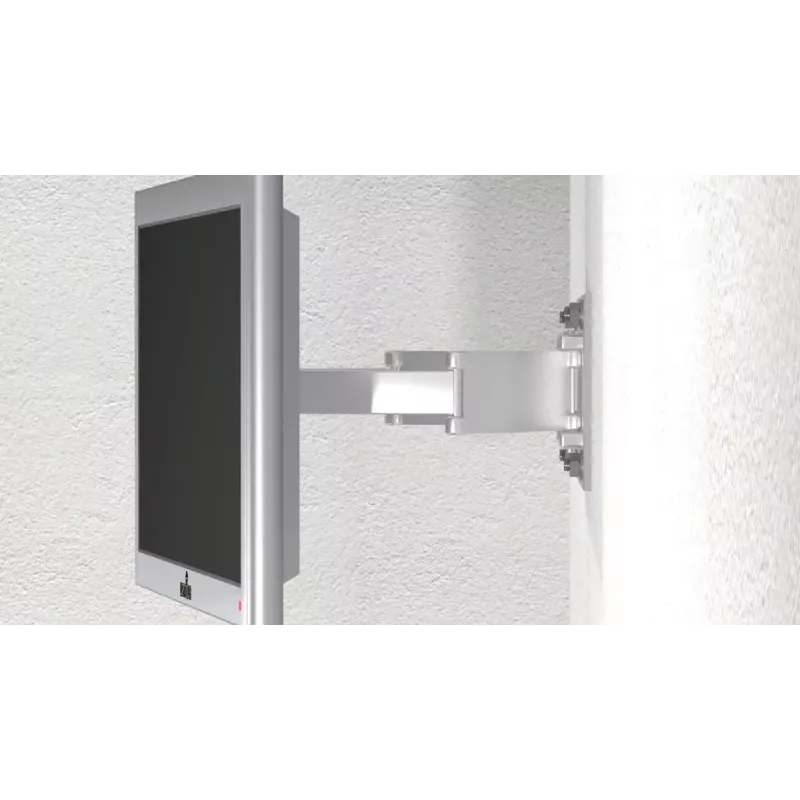

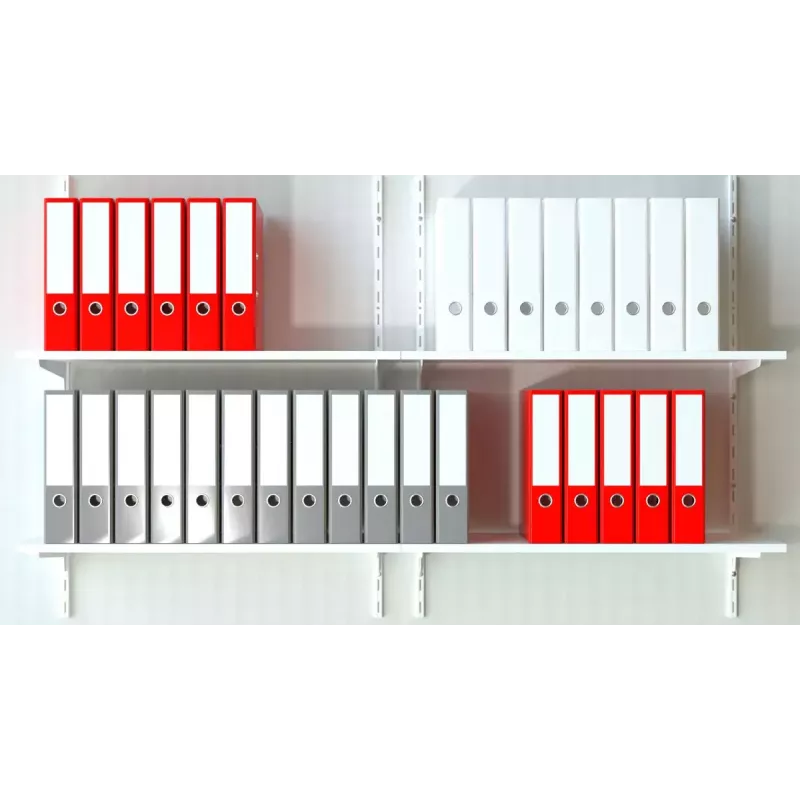

• Indoor and outdoor fastening of fixtures matching screw and embedment requirements

Key specifications

• Brand: FISCHER
• Model / MPN: 567935

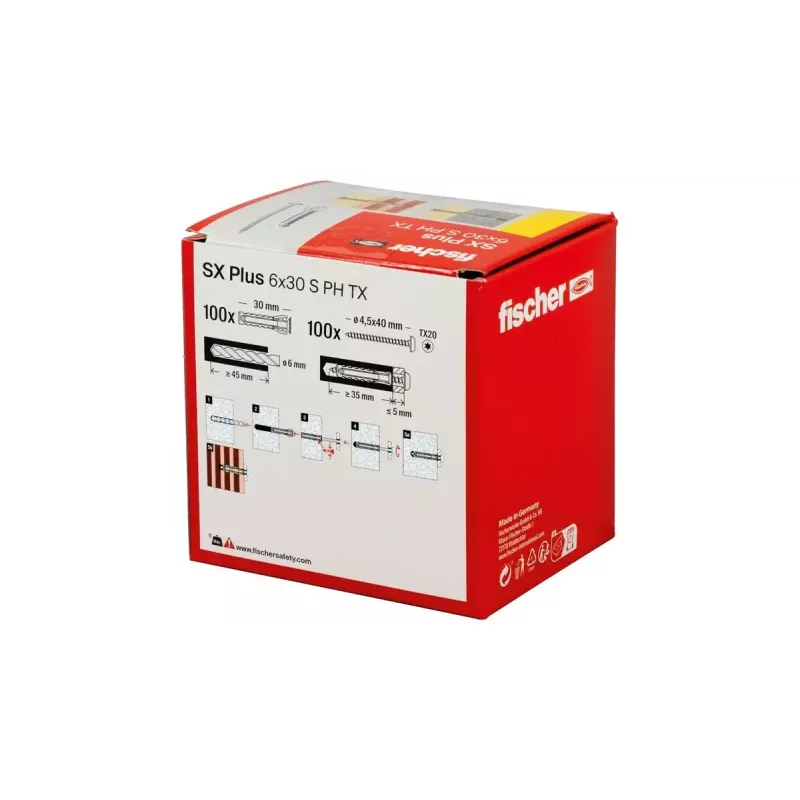

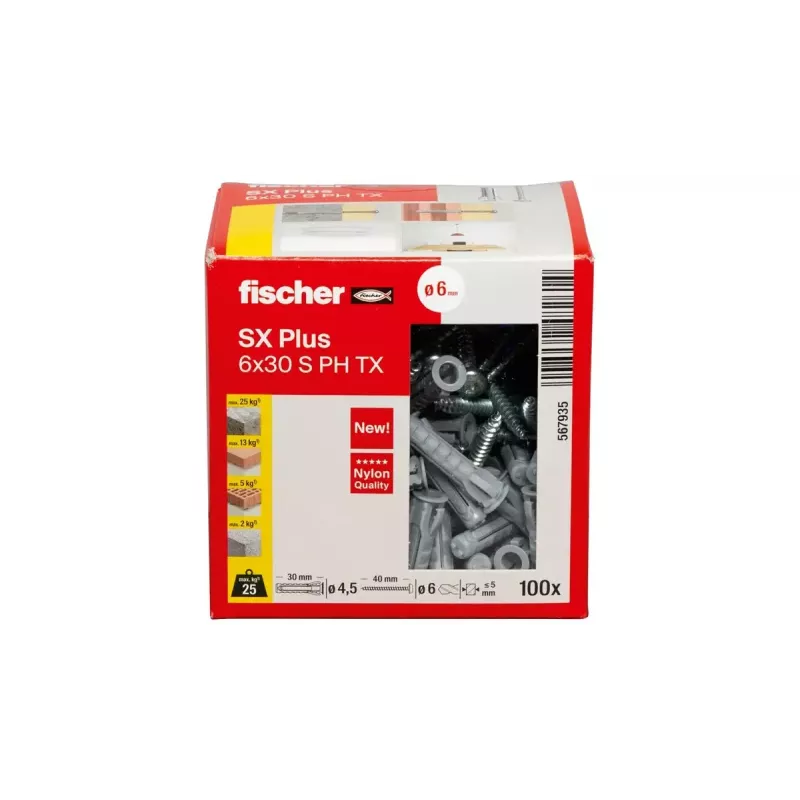

• Contents: 100 nylon plugs with matching screws
• Drill hole diameter: 6 mm
• Minimum embedment depth: 45 mm
• Suitable screw diameter: min. ~4.5 mm (depending on fixture thickness)
• Material: Nylon (polyamide)
• EAN: 4048962482614

How to use

Drill a 6 mm hole to the required depth (minimum 45 mm). Clean the hole from dust and debris. Insert the Fischer SX Plus plug flush with the surface; the plug edge prevents it from slipping in. For pre-positioned or push-through installation, place the fixture and insert the screw. During insertion the fixing wings hold the screw in place; tighten until you feel the characteristic tightening torque that indicates secure anchorage without overtightening.

Recommendations

Use the Fischer SX Plus kit with screws matched to the plug length and fixture thickness (screw length = plug length + fixture thickness + screw diameter). Avoid using damaged plugs and select appropriate embedment depth and screw diameter for the substrate and load conditions.
