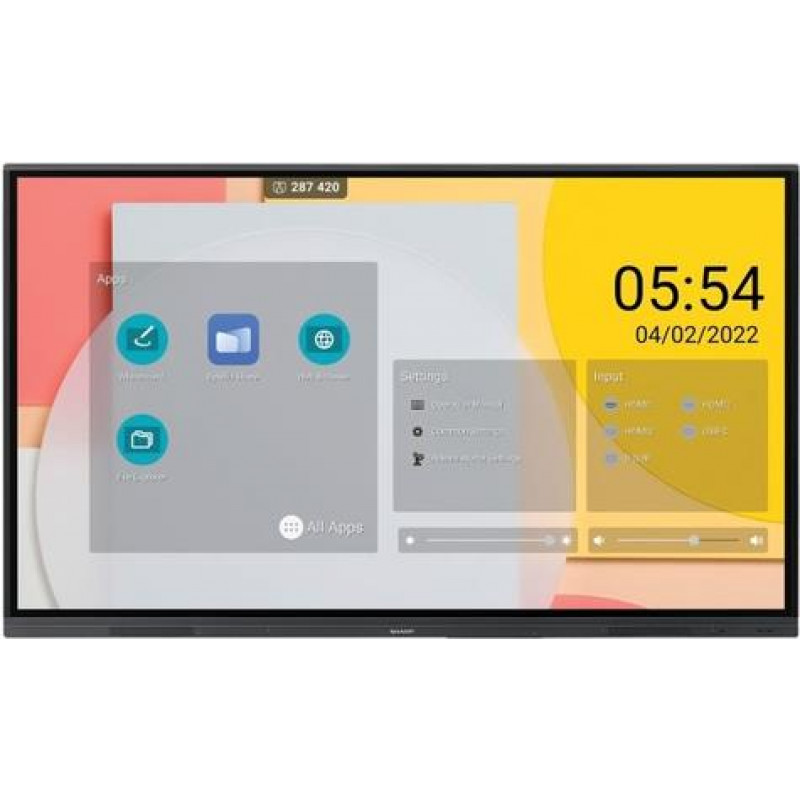

Sharp PNL862B 86 pollici LED LFD

Modern meeting rooms and classrooms often struggle with outdated presentation tools that limit engagement and collaboration. The Sharp PNL862B 86-inch 4K UHD interactive touch display solves this by combining a large, high-resolution canvas with responsive multi-touch technology, enabling teams and students to interact naturally with content, annotate over any source, and share ideas without the need for a separate projector or whiteboard. Its direct-lit LED panel delivers bright, crisp images with wide viewing angles, while the integrated Android OS allows instant access to apps and cloud services, making it a versatile hub for any collaborative space.

Who is it for

This display is ideal for corporate conference rooms, training facilities, and educational institutions that require a reliable, high-performance interactive solution. It suits presenters who need to display detailed spreadsheets, architectural drawings, or 4K video with clarity, and educators who want to create immersive lessons with touch-based activities. IT managers will appreciate its durable 16/7 operation, VESA mounting flexibility, and remote management via RS-232C or LAN.

Main features

• 86-inch 4K UHD (3840 x 2160) LCD panel with LED backlight and anti-glare coating
• 20-point infrared touch technology for multi-user collaboration
• 350 cd/m² brightness and 5000:1 contrast ratio for vivid, detailed images
• Wide 178° viewing angles ensure visibility from any position in the room
• Multiple connectivity: 3x HDMI 2.0, DisplayPort 1.2, VGA, USB 3.0/2.0, and USB Type-B for touch
• Built-in dual 10W speakers and audio outputs (3.5mm jack, optical digital)
• Embedded Android OS for direct app usage without external PC
• VESA 600 x 400 mm mounting pattern for easy wall or cart installation

Specifications

• Screen size: 86 inches (217.4 cm diagonal)
• Native resolution: 3840 x 2160 (4K UHD)
• Panel type: LCD with LED backlight
• Brightness: 350 cd/m² (typical)
• Contrast ratio: 5000:1 (typical)
• Response time: 8 ms (grey to grey)
• Viewing angle: 178° horizontal / 178° vertical
• Touch technology: Infrared (IR) sensing, 20 simultaneous touch points
• Inputs: 3x HDMI 2.0, 1x DisplayPort 1.2, 1x D-Sub 15-pin (VGA)
• USB ports: 2x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x USB Type-B (for touch)
• Audio: 2x 10W built-in speakers, 3.5mm stereo mini jack, optical digital output
• Control interface: RS-232C, LAN (RJ-45)
• Operating hours: 16/7
• Power consumption: 300 W (typical)
• VESA mounting: 600 x 400 mm

Tips

For optimal touch accuracy, ensure the display is calibrated after installation and keep the screen surface clean from dust and fingerprints. When mounting, use a sturdy wall mount rated for the display's weight and verify that all cables are securely connected to avoid signal interruptions. To extend the panel's lifespan, avoid displaying static images for prolonged periods and enable the built-in screen saver or power management settings. For remote management, connect the display to your network via LAN and use compatible control software for firmware updates and diagnostics.
