Shelly Wave Shutter LR Controller - controller motore tapparella Z-Wave Plus v2

The Shelly Wave Shutter LR Controller is a compact, intelligent Z-Wave Plus v2 device designed for precise control of AC roller shutter motors. It integrates seamlessly into existing in-wall switch boxes and supports Z-Wave Long Range for extended coverage up to 400m outdoors. With power metering, overload and over-temperature protection, and automatic motor calibration, it ensures safe and efficient operation. Compatible with all Z-Wave Plus v2 gateways, it offers SmartStart inclusion and OTA firmware updates for future-proofing.

Advantages

• Z-Wave Long Range: Up to 400m outdoor range for reliable control across large properties.
• Advanced Protection: Overload and over-temperature protection safeguard your motor and installation.
• Power Metering: Monitor energy consumption of connected shutters.
• Easy Installation: Fits behind existing switches in standard in-wall boxes; automatic motor calibration simplifies setup.
• Secure & Future-Proof: Supports S2 Authenticated security and OTA firmware updates.

Suitable for

• Smart home automation of roller shutters, awnings, and blinds
• Residential and commercial buildings requiring reliable Z-Wave control
• Integration with Z-Wave Plus v2 hubs like Home Assistant, SmartThings, or Hubitat

Key specifications

• Wireless Protocol: Z-Wave Plus v2 (800 Series)
• Frequency: 868.4 MHz (EU)
• Power Supply: 110-240V AC
• Max Load: 10A / 240V AC (AC motor)
• Motor Type: AC Roller Shutter Motors
• Power Metering: Yes
• Overload Protection: Yes
• Over-temperature Protection: Yes
• Operating Temperature: -20°C to 40°C

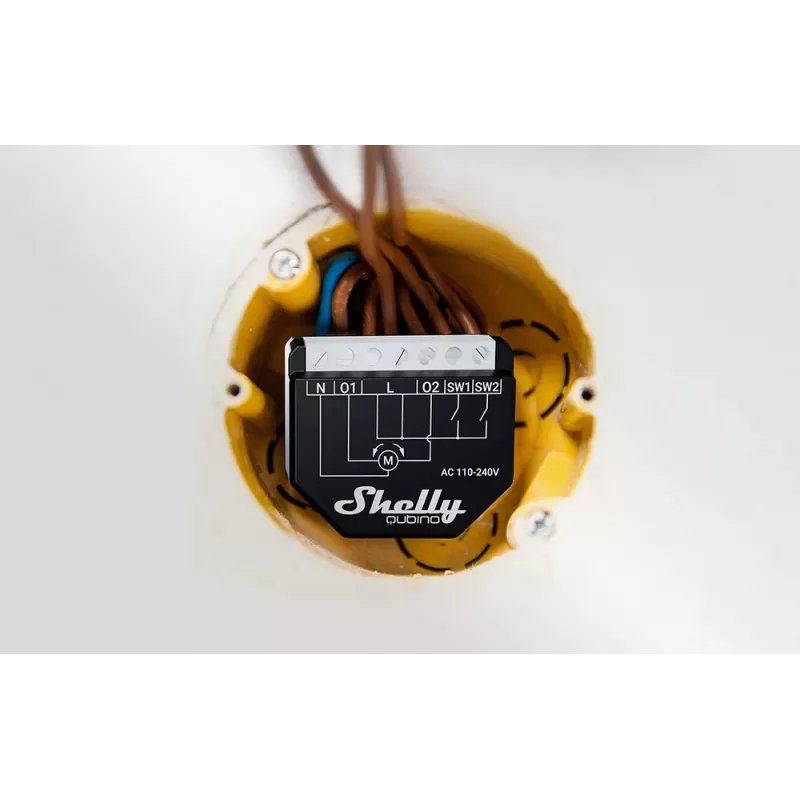

• Mounting: In-wall switch box (behind existing switch)
• Control Inputs: 2 (for Up/Down buttons)
• Z-Wave Security: S2 Authenticated, S2 Unauthenticated
• SmartStart Inclusion: Yes
• OTA Firmware Updates: Yes
• Z-Wave Long Range: Up to 400m outdoors, 100m indoors (typical)
• Device Power Consumption: < 0.3W
• Motor Calibration: Automatic position calibration

Recommendations

For optimal performance, pair with a Z-Wave Plus v2 certified gateway. Ensure the motor is compatible with AC roller shutter controllers. Professional installation recommended for safety.
