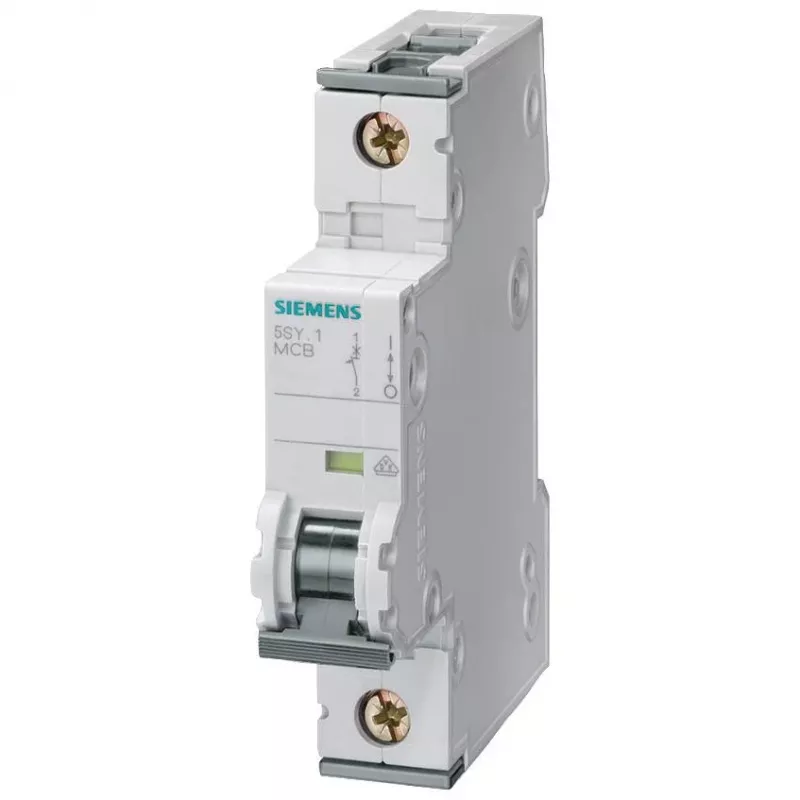

Siemens SENTRON 5SY interruttore automatico magnetotermico, 1 polo, C10, 6 kA, 230/400 V AC, nero 5SY71106KK13

Electricians and panel builders use the Siemens SENTRON 5SY miniature circuit breaker to protect lighting and socket circuits in residential and commercial installations. This 1-pole MCB with C characteristic and 10 A rated current safeguards cables and equipment against overload and short-circuit currents up to 6 kA.

Key specifications

• Rated current: 10 A
• Tripping characteristic: C
• Number of poles: 1
• Rated breaking capacity: 6 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal type: Screw terminals
• Degree of protection: IP20
• Operating temperature: -25 to +55 °C
• Energy limiting class: 3
• Connection cross-section (solid): 0.75 - 35 mm²
• Colour: Black

Why choose it

The SENTRON 5SY series is known for reliable protection and easy installation. The C characteristic handles moderate inrush currents, making it suitable for general lighting and socket circuits. Its compact design saves space in distribution boards.

Ideal use cases

• Protection of lighting circuits in residential buildings
• Socket outlet circuits in commercial premises
• Control circuits with moderate inrush currents

Good to know

The device complies with IEC 60898-1 and is designed for DIN rail mounting. It has screw terminals for secure conductor connection.
