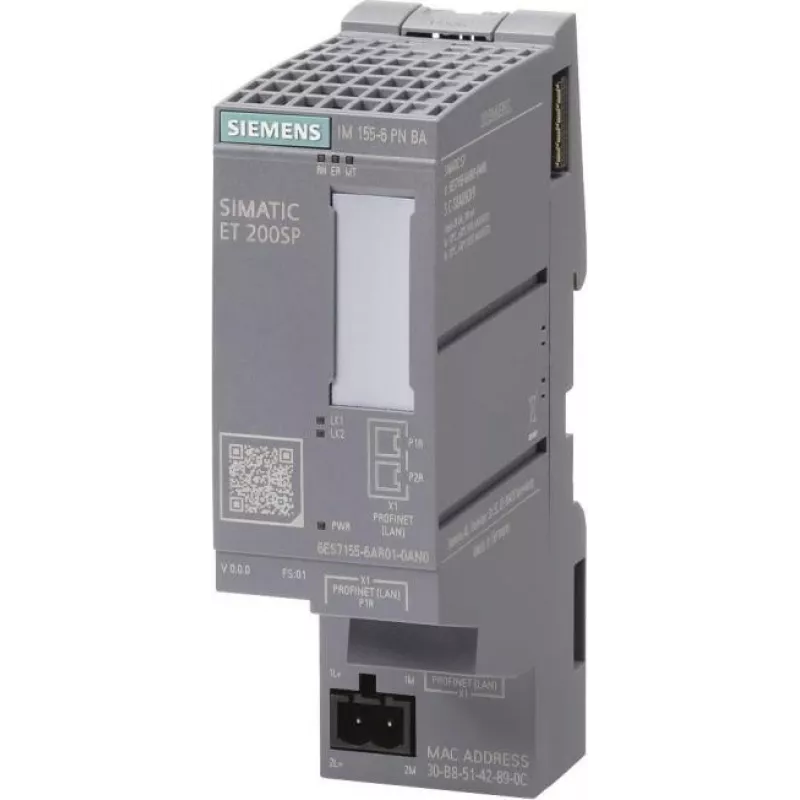

Siemens SIMATIC ET 200SP IM 155-6 PN BA modulo di interfaccia con modulo server (6ES7155-6AR01-0AN0)

The Siemens SIMATIC ET 200SP IM 155-6 PN BA is a high-performance interface module designed for the SIMATIC ET 200SP distributed I/O system. It features a PROFINET IO Basic (BA) interface with two RJ45 ports, supporting data transfer rates of 100 Mbit/s full duplex. The module includes an integrated server module for enhanced functionality. It operates on a 24 V DC supply voltage with typical current consumption of 300 mA (without I/O modules) and power loss of 2.5 W. The module supports module, station, and channel diagnostics, and is configured via TIA Portal. It is designed for DIN rail mounting with IP20 protection class and supports firmware updates. Operating temperature ranges from 0 °C to 60 °C (horizontal mounting) or 0 °C to 50 °C (vertical mounting).

Advantages

Reliable and efficient interface module for SIMATIC ET 200SP systems. Integrated server module simplifies network integration. PROFINET IO BA ensures fast and deterministic communication. Comprehensive diagnostics for easy troubleshooting. Compact design saves space in control cabinets.

Suitable for

• Industrial automation and control systems
• Distributed I/O applications in manufacturing
• PROFINET-based networks requiring a basic interface

Key specifications

• Product Type: Interface Module
• System Compatibility: SIMATIC ET 200SP
• Communication Protocol: PROFINET IO
• PROFINET Version: Basic (BA)
• Number of PROFINET Ports: 2
• Port Type: RJ45
• Data Transfer Rate: 100 Mbit/s (Full Duplex)
• Integrated Server Module: Yes
• Supply Voltage: 24 V DC
• Current Consumption (typ.): 300 mA
• Power Loss (typ.): 2.5 W
• Diagnostics: Module, Station, Channel
• Configuration Software: TIA Portal
• Mounting: DIN Rail
• Protection Class: IP20
• Firmware Update: Supported

Recommendations

For optimal performance, use with Siemens SIMATIC ET 200SP I/O modules and a PROFINET controller. Ensure proper DIN rail mounting and adequate ventilation.
