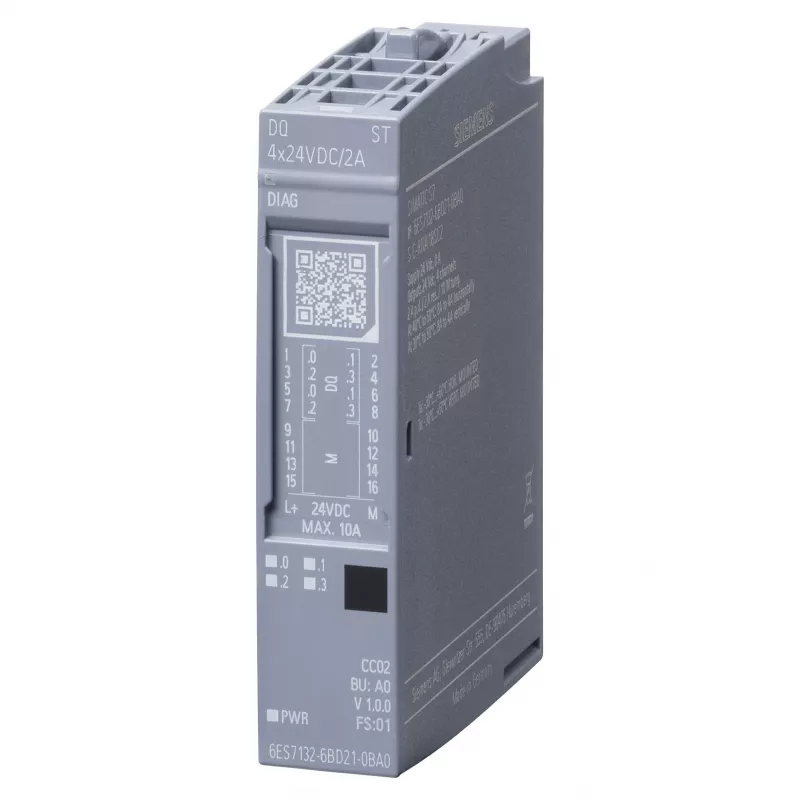

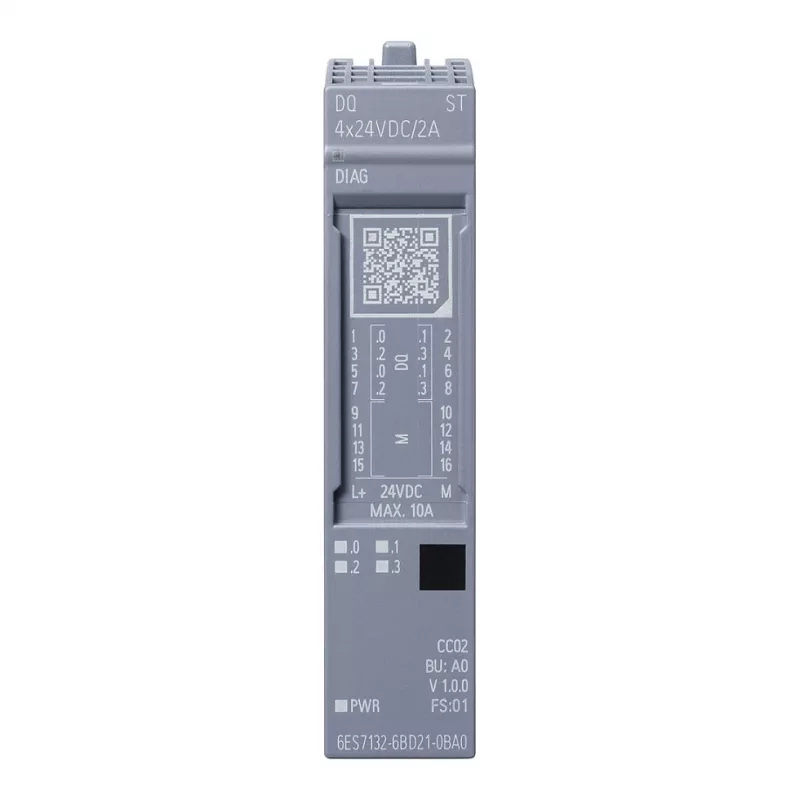

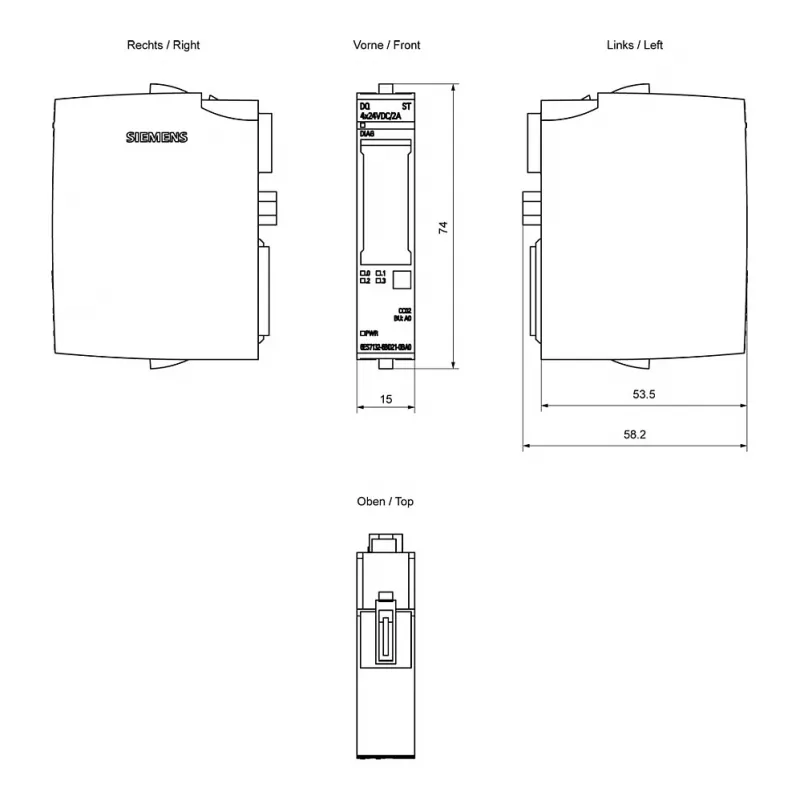

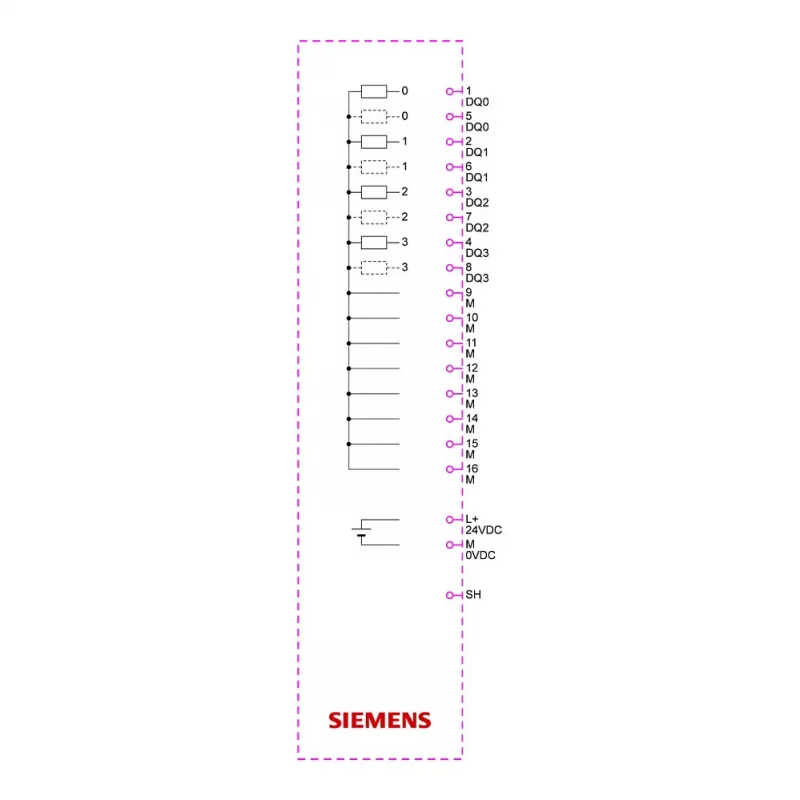

SIEMENS SIMATIC ET 200SP modulo di uscita digitale DQ 4x24VDC/2A ST (6ES7132-6BD21-0BA0)

For control engineers who need a compact yet robust digital output solution, the SIEMENS SIMATIC ET 200SP DQ 4x24VDC/2A ST stands apart with its four sourcing channels, each capable of delivering a full 2 A at 24 V DC. Unlike many basic output modules, this unit integrates electronic short-circuit protection and comprehensive module and channel diagnostics, ensuring rapid fault identification and minimal downtime in distributed automation systems.

Highlights

• Four digital outputs, each rated for 2 A at 24 V DC, supporting a wide range of actuators and loads.
• Standard performance class (ST) with 1-wire shutdown wiring for straightforward installation.
• Electronic short-circuit and reverse polarity protection enhance system reliability.
• Module and channel diagnostics provide detailed status information for proactive maintenance.
• Designed for use with BU type A0 BaseUnit and colour code CC00, ensuring seamless integration into ET 200SP stations.

In daily use

This module excels in applications where space is at a premium but high current outputs are required. With a maximum power loss of only 0.8 W and an operating temperature range of 0 to 60 °C (horizontal mounting) or 0 to 50 °C (vertical mounting), it performs reliably in demanding industrial environments. The sourcing (PNP) output type and isolation between channels and the backplane bus guarantee stable operation even with inductive loads.

Full specifications

• Brand: SIEMENS
• Model: 6ES7132-6BD21-0BA0
• MPN: 6ES71326BD210BA0
• EAN: 4047623414483
• Module Type: Digital Output Module
• Number of Digital Outputs: 4
• Output Voltage: 24V DC
• Output Current per Channel: 2 A
• Performance Class: Standard (ST)
• Suitable BaseUnit: BU type A0
• Color Code: CC00
• Diagnostics: Module diagnostics, Channel diagnostics
• Wiring Type: 1-wire shutdown
• Short-circuit Protection: Yes, electronic
• Reverse Polarity Protection: Yes
• Isolation: Channel to backplane bus
• Power Loss, max.: 0.8 W
• Permissible Ambient Temperature (Horizontal): 0 to 60 °C
• Permissible Ambient Temperature (Vertical): 0 to 50 °C
• Product Family: SIMATIC ET 200SP
• Output Type: Sourcing (PNP)
• Switching Frequency (Resistive Load): Max. 100 Hz

Final note

Compact, reliable, and diagnostic-rich, this ET 200SP output module is a smart choice for high-current distributed control tasks.
