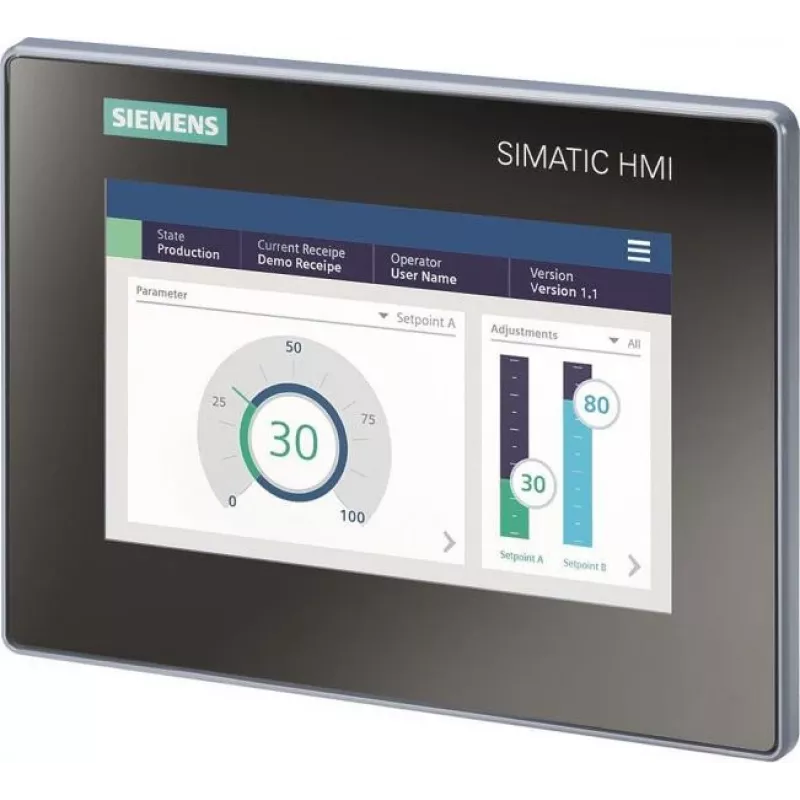

Siemens SIMATIC HMI 6AV2123-3GB32-0AW0 MTP700 Unified Basic Panel 7

The Siemens SIMATIC HMI MTP700 Unified Basic Panel 7 is a modern human-machine interface designed for industrial automation. With a 7-inch widescreen TFT display and capacitive touch control, it offers intuitive operation and clear visualization. This panel is part of the SIMATIC Unified Basic series, providing a Linux-based operating system and seamless integration with TIA Portal V17 or higher.

Advantages

High-resolution 800x480 pixel display with 16 million colors ensures excellent readability. Capacitive touch screen supports multi-touch gestures for efficient interaction. Compact design with IP65 front protection makes it suitable for harsh environments. Easy configuration via TIA Portal Unified Engineering reduces engineering effort.

Suitable for

• Industrial automation and control systems
• Machine building and plant engineering
• Process monitoring and data visualization
• Panel mounting applications requiring IP65 protection

Key specifications

• Display: 7 inch TFT Widescreen, 800x480 pixels (WVGA), 16 million colors
• Control: Capacitive touch screen
• Processor: ARM-based
• User memory: 10 MB
• Communication: 1x Ethernet (RJ45), 1x USB Type A
• Power supply: 24 V DC
• Operating system: SIMATIC HMI Unified Basic (Linux-based)
• Configuration software: TIA Portal V17 or higher (Unified Engineering)
• Mounting: Panel mounting
• Protection rating: Front IP65, Rear IP20
• Operating temperature: 0 to 50 °C
• Cut-out dimensions (WxH): 198 x 142 mm
• Backlight lifetime: 50,000 hours

Recommendations

For optimal performance, use with Siemens TIA Portal V17 or higher. Ensure proper panel cut-out dimensions (198x142 mm) for installation. This device is ideal for applications requiring a reliable and user-friendly HMI with modern connectivity.
