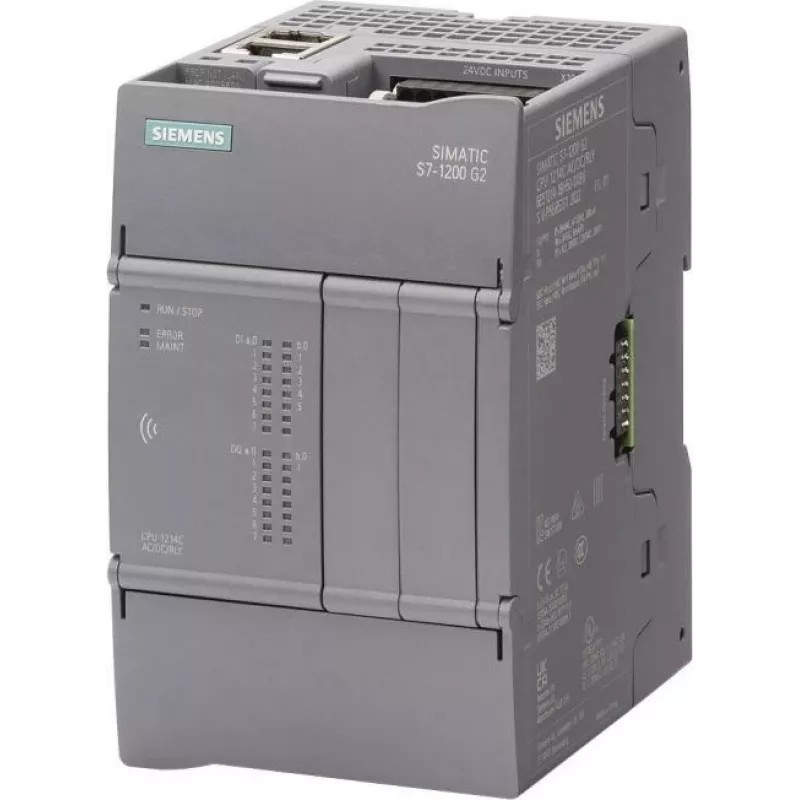

Siemens SIMATIC S7-1200 G2 CPU 1214C DC/DC/DC 14DI 10DO 2AI CPU compatta 6ES7214-1AH50-0XB0

The Siemens SIMATIC S7-1200 G2 CPU 1214C is a compact, high-performance CPU for the S7-1200 controller family. It features integrated digital and analog I/O, PROFINET communication, and advanced technology functions, making it ideal for a wide range of automation tasks.

Advantages

Compact design with integrated I/O reduces space requirements. High-speed counters, PID controllers, and motion control axes enable precise control. Easy programming via TIA Portal ensures efficient engineering.

Suitable for

• Machine building
• Factory automation
• Process automation
• Building automation

Key specifications

• Supply voltage: 24 V DC
• 14 digital inputs (24 V DC)
• 10 digital outputs (24 V DC, transistor)
• 2 analog inputs (0-10 V DC)
• Program/work memory: 100 KB
• Load memory: 4 MB integrated
• 2 x PROFINET interfaces (RJ45)
• Expandable with up to 8 signal modules, 3 communication modules, 1 signal board
• 6 high-speed counters (100 kHz), 4 PID controllers, 8 motion control axes (PTO/PWM)
• Real-time clock with backup
• Operating temperature: -20 °C to +60 °C (horizontal mounting)
• Mounting: DIN rail
• Protection class: IP20

Recommendations

For optimal performance, use with Siemens TIA Portal and compatible signal modules. Ensure proper ventilation and mounting on a DIN rail.
