Siemens SIRIUS 3RA29 Modulo di collegamento per 3RV2011 e 3RT201

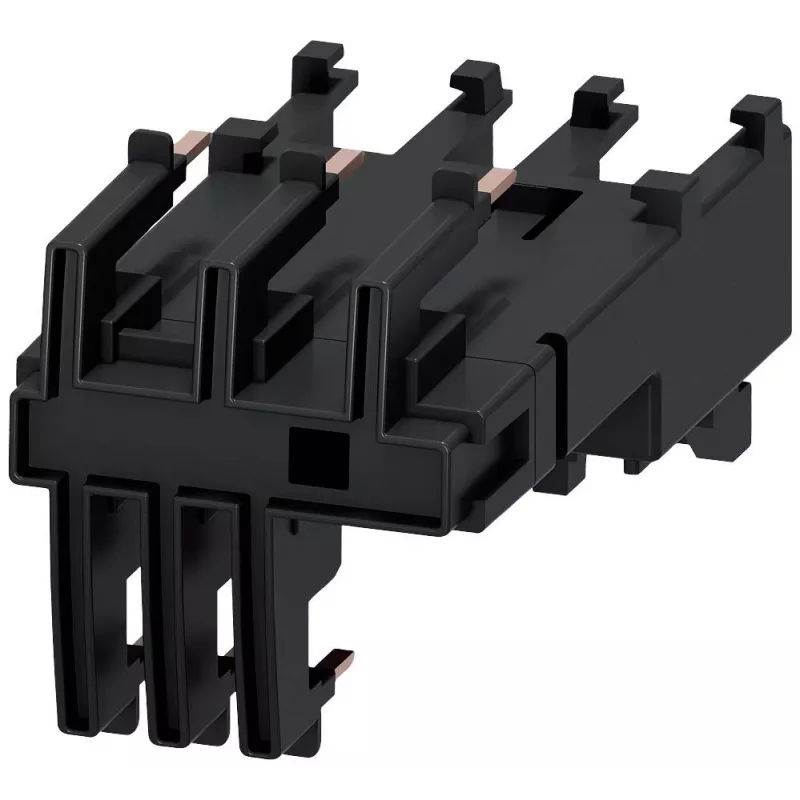

The Siemens SIRIUS 3RA29 Connection Module (3RA29112AA00) is a high-quality electrical and mechanical connection module designed for building compact direct-on-line starters. It enables a direct plug-in connection between the Siemens SIRIUS 3RV2011 motor starter protector and the 3RT201 contactor, ensuring a reliable and space-saving assembly.

Advantages

Simplifies wiring and reduces installation time by providing a pre-engineered mechanical and electrical link between the motor starter protector and contactor. The module ensures secure contact alignment and vibration resistance, enhancing the overall reliability of the starter assembly. Its compact design saves valuable cabinet space.

Suitable for

• Building compact direct-on-line (DOL) motor starters
• Industrial automation and control panels
• Applications requiring a reliable connection between SIRIUS 3RV2011 and 3RT201 devices

Key specifications

• Product Type: Connection Module
• Series: SIRIUS 3RA29
• Compatibility: Siemens SIRIUS 3RV2011 motor starter protector and 3RT201 contactor
• Function: Electrical and mechanical connection
• Number of Poles: 3-pole (main circuit)
• Rated Operational Current: Max 12 A (determined by connected devices)
• Rated Operational Voltage: Max 690 V (determined by connected devices)
• Operating Temperature: -25 to +60 °C
• Storage Temperature: -40 to +80 °C
• Degree of Protection: IP20 (when installed)
• Standards: IEC 60947, EN 60947
• Material: High-grade insulating plastic
• Mounting: Direct plug-in between devices

Recommendations

For optimal performance, use this connection module exclusively with Siemens SIRIUS 3RV2011 and 3RT201 components. Ensure proper installation according to the manufacturer's guidelines to maintain IP20 protection and compliance with IEC/EN 60947 standards.
