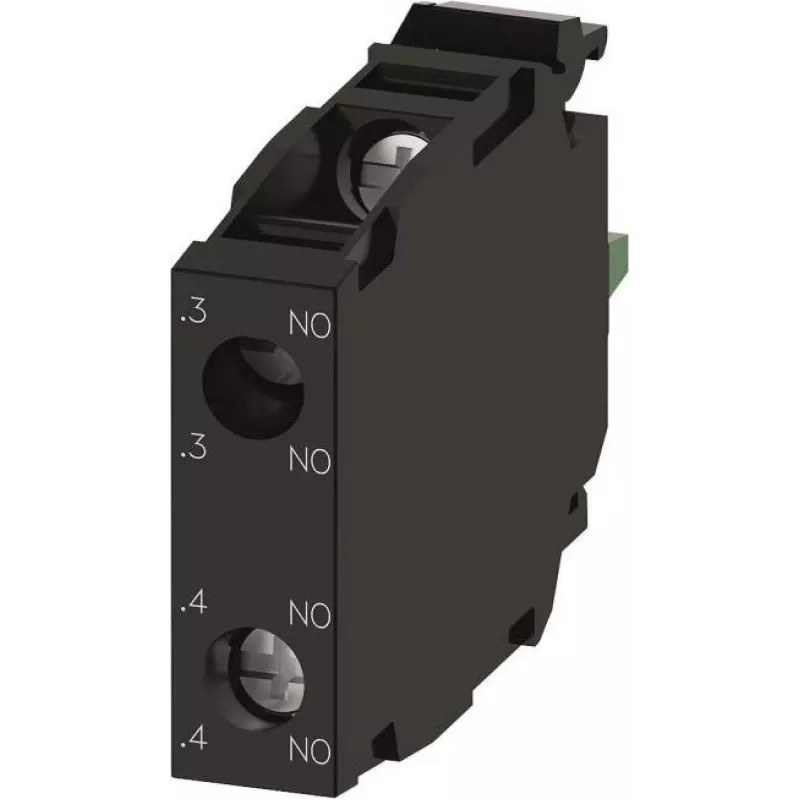

Siemens SIRIUS ACT Modulo di contatto 2 NO collegamento a vite 3SU14001AA101DA0

The Siemens SIRIUS ACT contact module 3SU14001AA101DA0 is a high-quality switching element designed for industrial control applications. With 2 normally open (NO) contacts and screw terminal connection, it provides reliable and durable performance for panel and module mounting.

Advantages

This contact module offers exceptional electrical and mechanical endurance of 10 million switching cycles, ensuring long service life. Its compact design and screw terminals simplify installation and maintenance. The module is part of the Siemens SIRIUS ACT series, known for robustness and compatibility with a wide range of actuators and pilot devices.

Suitable for

• Industrial control panels
• Machine building
• Automation systems
• Switching and signaling applications

Key specifications

• Product Type: Contact Module
• Number of Contacts: 2 NO (Normally Open)
• Contact Configuration: 2S (2 Schließer)
• Mounting Type: Floor Mounting
• Connection Type: Screw Terminal
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Operational Current (AC-15, 230V): 6 A
• Rated Operational Current (DC-13, 24V): 10 A
• Degree of Protection (Terminals): IP20
• Electrical Endurance: 10 million switching cycles
• Mechanical Endurance: 10 million switching cycles
• Operating Temperature Range: -25 to +70 °C
• Min. Conductor Cross-Section (Solid): 0.5 mm²
• Max. Conductor Cross-Section (Solid): 2.5 mm²
• Min. Conductor Cross-Section (Fine-Stranded): 0.5 mm²
• Max. Conductor Cross-Section (Fine-Stranded): 2.5 mm²
• Shock Resistance: 10g / 11ms
• Vibration Resistance: 5 ... 500 Hz, 5g

Recommendations

This contact module is ideal for use with Siemens SIRIUS ACT pushbuttons, selector switches, and indicator lights. Ensure proper wiring and observe rated voltages and currents for optimal performance.
