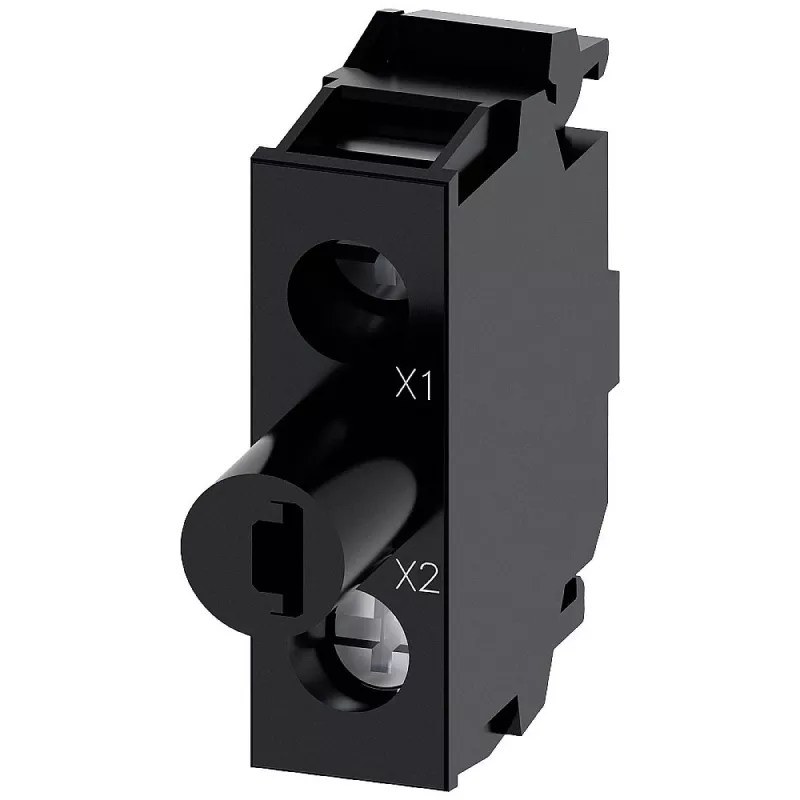

SIEMENS SIRIUS ACT Modulo LED con LED integrato, 24V AC/DC, verde, morsetto a vite 3SU14012BB401AA0

Control panel builders and machine operators rely on the SIEMENS SIRIUS ACT LED module for clear, immediate status indication in industrial control systems. This green LED module with integrated LED operates at 24V AC/DC and is designed for rear panel mounting in standard 22mm SIRIUS ACT holders.

Key specifications

• Operating voltage: 24 V AC/DC
• Light colour: green
• Connection: screw terminal, 2 terminals
• Current consumption: 15 mA
• Power consumption: 0.36 W
• LED service life: 100,000 hours
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Degree of protection: IP20
• Mounting: rear panel mounting, 22 mm diameter
• Material: plastic
• Compatible with SIRIUS ACT holders

Why choose it

The integrated LED provides a long service life of 100,000 hours, reducing maintenance and downtime. The screw terminal connection ensures secure wiring, and the module is engineered for reliable performance across a wide temperature range.

Ideal use cases

• Status indication on control panels
• Machine and process signalling
• Industrial automation systems

Good to know

The module is part of the SIRIUS ACT series and mounts from the rear of the panel, keeping the front clean and protected. It is suitable for use with compatible SIRIUS ACT holders.
