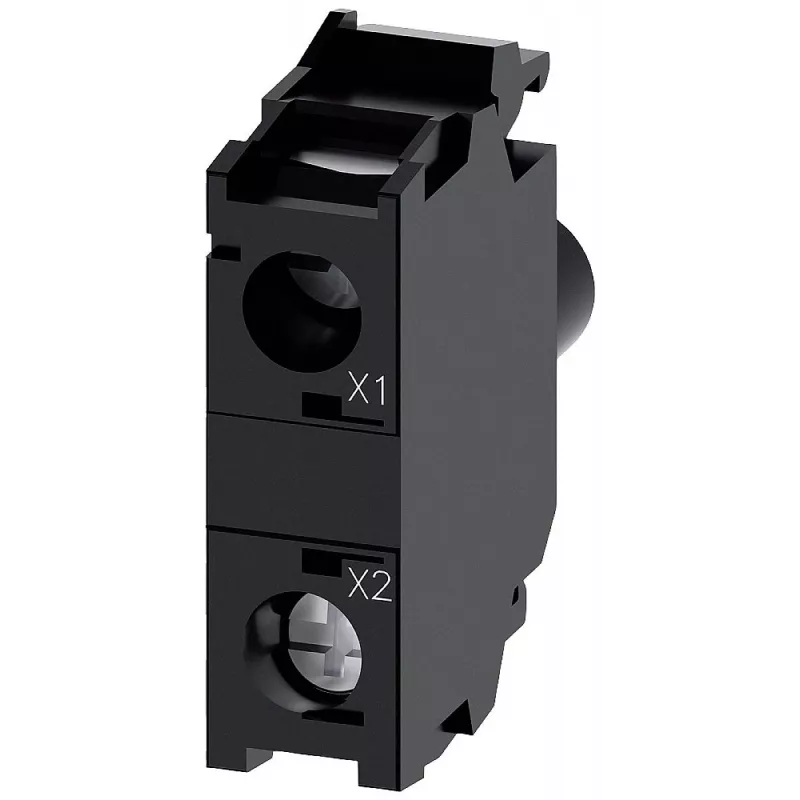

Siemens SIRIUS ACT modulo LED con LED integrato, AC/DC 6-24V, giallo (3SU14011BG301AA0)

This Siemens SIRIUS ACT LED module stands out with its integrated LED, eliminating the need for a separate lamp and simplifying installation. It operates on a wide AC/DC 6-24V supply, making it versatile for various control circuits.

Highlights

• Integrated yellow LED for clear status indication
• Wide voltage range: AC/DC 6-24V
• Low current consumption: 15 mA
• Compact design for base or front plate mounting
• Screw terminals for secure wiring

In daily use

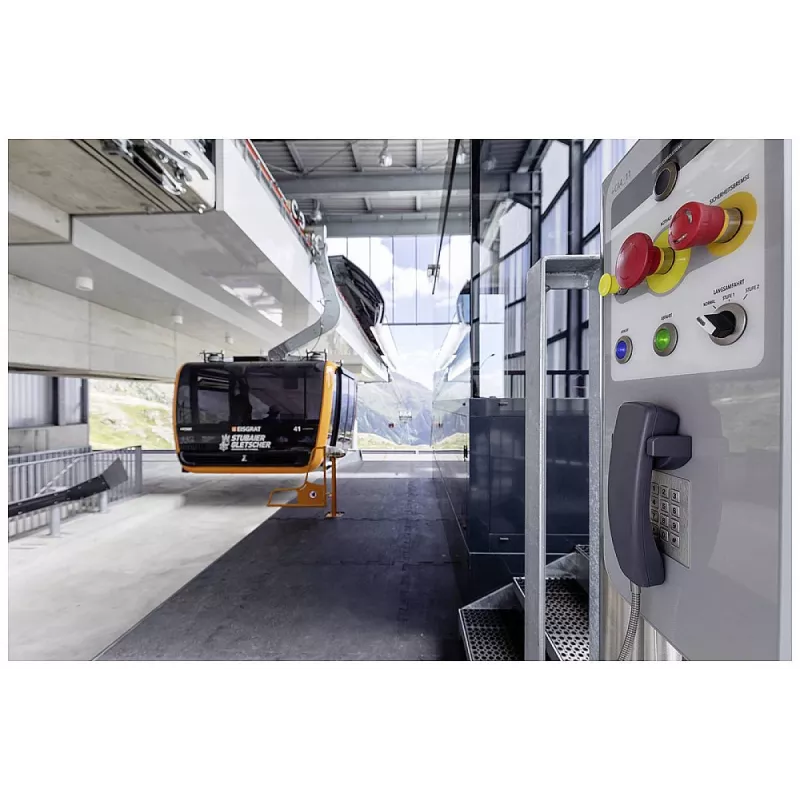

This LED module is designed for use with Siemens SIRIUS ACT control devices, providing reliable indication in industrial environments. With a service life of 100,000 operating cycles and an operating temperature range of -25 to +70 °C, it ensures long-term performance.

Full specifications

• Operating voltage: AC/DC 6-24 V
• Light color: Yellow
• Current consumption: 15 mA
• Max power loss: 1.2 W
• Mounting type: Base / Front plate mounting
• Connection type: Screw terminals
• Wire cross-section (solid): 0.5 - 2.5 mm²
• Wire cross-section (stranded with ferrule): 0.5 - 1.5 mm²
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Degree of protection: IP20
• Electrical service life: 100,000 cycles
• Relative humidity: 10-95% non-condensing
• Tightening torque: 0.8 - 1.2 Nm

Final note

Engineered for seamless integration with SIRIUS ACT, this module offers a reliable and efficient indication solution.
