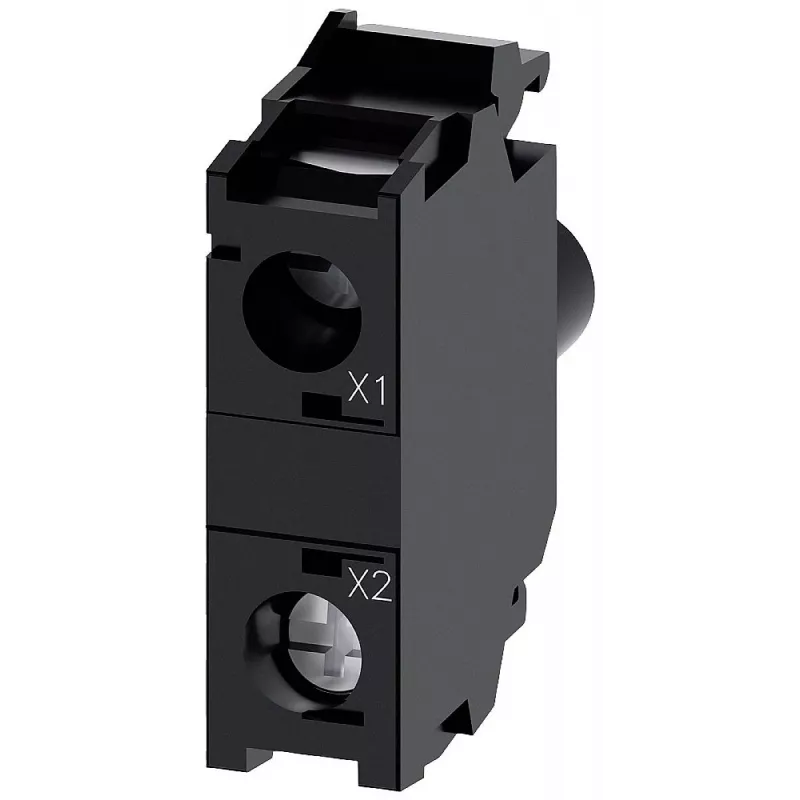

SIEMENS SIRIUS ACT modulo LED, LED integrato, rosso, 6-24V AC/DC, morsetto a vite 3SU14011BG201AA0

LED module with integrated LED for SIRIUS ACT control devices, providing reliable red illumination for status indication. Operates on 6-24V AC/DC, making it versatile for various industrial control circuits.

Advantages

Integrated LED eliminates the need for separate lamp replacement. Wide voltage range allows use in both AC and DC applications. Screw terminals ensure secure and maintenance-friendly wiring.

Suitable for

• Indicating operational states in control panels
• Signaling alarms or process conditions
• Integration with Siemens SIRIUS ACT pushbuttons and selector switches

Key specifications

• Operating voltage: 6-24V AC/DC
• Light colour: Red
• Connection: Screw terminal, 2 terminals
• Current consumption: 15 mA
• Service life: 100,000 hours
• Ambient temperature: -25 to +70 °C

Recommendations

For use with SIRIUS ACT front plate operators. Mount from the rear side. Ensure proper polarity for DC operation.
