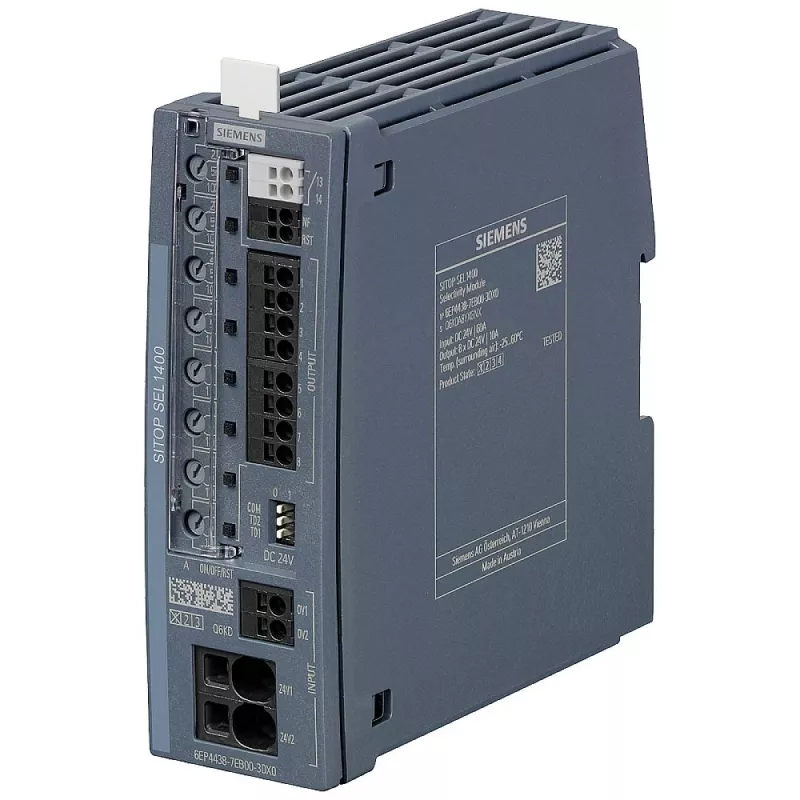

Siemens SITOP SEL1400 modulo selettivo DC 24 V/8 x 2,1 A (6EP4438-7EB00-3DX0)

The Siemens SITOP SEL1400 selectivity module is a high-performance electronic protection device designed for selective overload and short-circuit protection in DC 24 V systems. It features 8 individually adjustable output channels, each capable of delivering up to 3 A, with a total output current of 24 A. This module ensures reliable power distribution and fault isolation in industrial control cabinets, preventing total system shutdowns.

Advantages

Selective fault isolation: Only the affected channel is switched off, leaving other loads operational. Adjustable current per channel from 0.5 A to 3 A allows precise protection. LED signaling per channel for quick diagnostics. Compact DIN rail mounting saves space. Wide operating temperature range from -25 °C to +70 °C ensures reliability in harsh environments.

Suitable for

• Industrial automation systems
• Machine building
• Process control
• Building infrastructure
• Any application requiring selective DC 24 V power distribution

Key specifications

• Product Type: Selectivity Module
• Series: SITOP SEL1400
• Input Voltage: DC 24 V (20.4 V - 30 V)
• Output Voltage: DC 24 V
• Number of Outputs: 8
• Output Current per Channel: Adjustable 0.5 A to 3 A
• Nominal Output Current per Channel: 2.1 A
• Total Output Current (Max): 24 A (8 x 3 A)
• Protection Type: Electronic, Selective Overload and Short-Circuit Protection
• Signaling: LED per channel (Green/Red), Group Alarm (Relay Contact)
• Mounting Type: DIN Rail
• Connection Type: Screw Terminals
• Operating Temperature: -25 °C to +70 °C
• Protection Class: IP20
• Input Current (Max): 24 A
• Approvals: CE, cULus, ATEX, IECEx, GL, ABS, DNV, RINA, LR, BV

Recommendations

For optimal performance, use with Siemens SITOP power supplies. Ensure proper ventilation and adhere to local electrical codes. The module is suitable for use in potentially explosive atmospheres with appropriate approvals.
