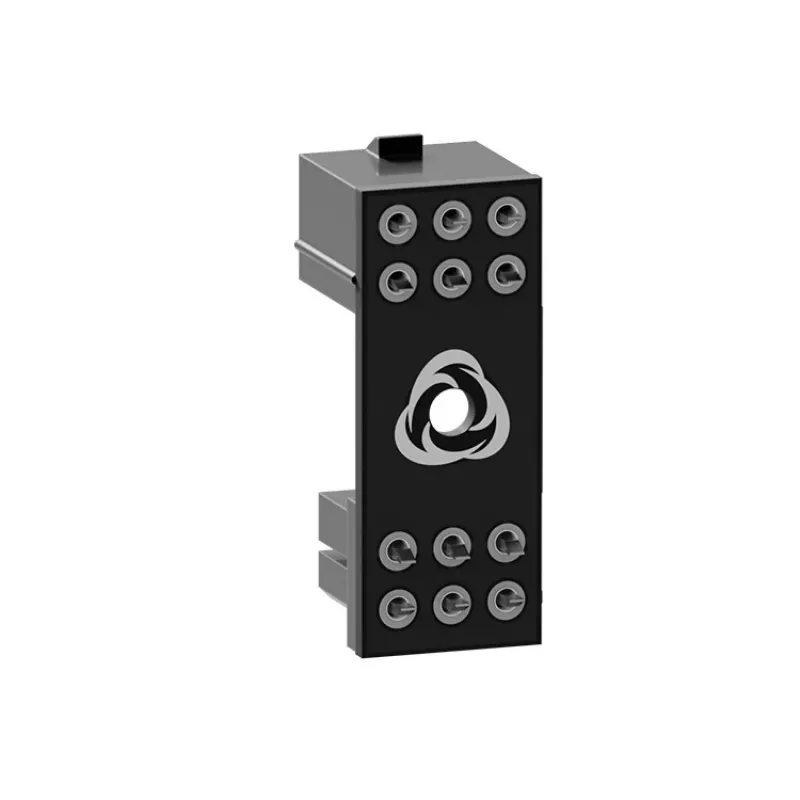

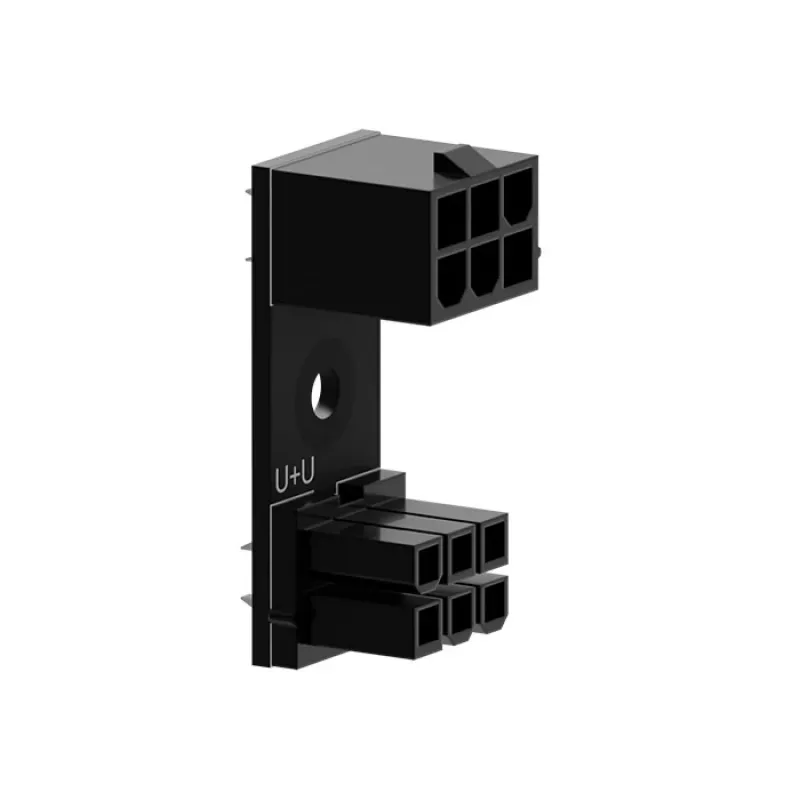

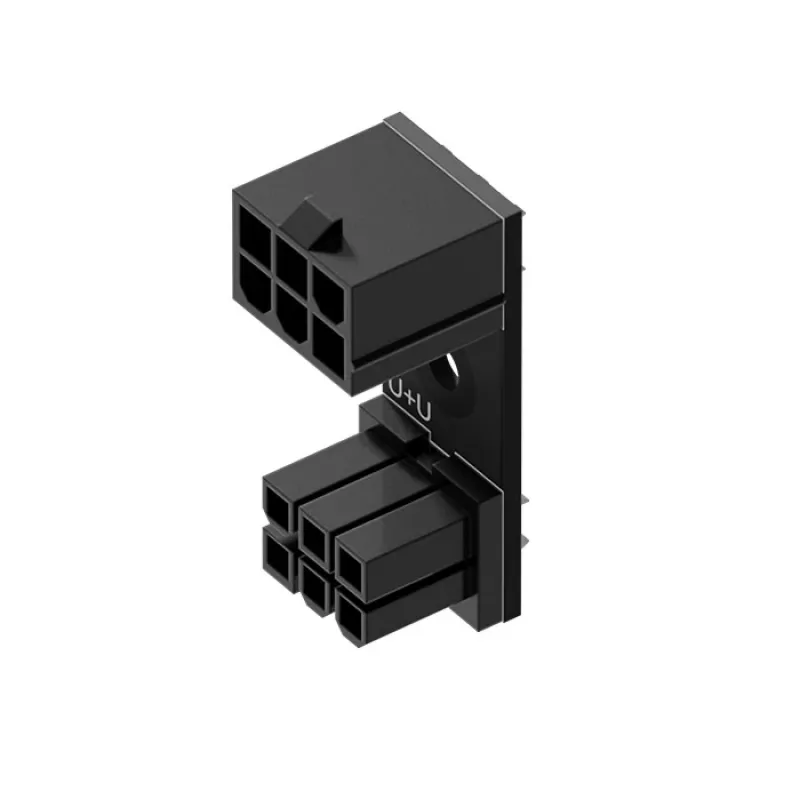

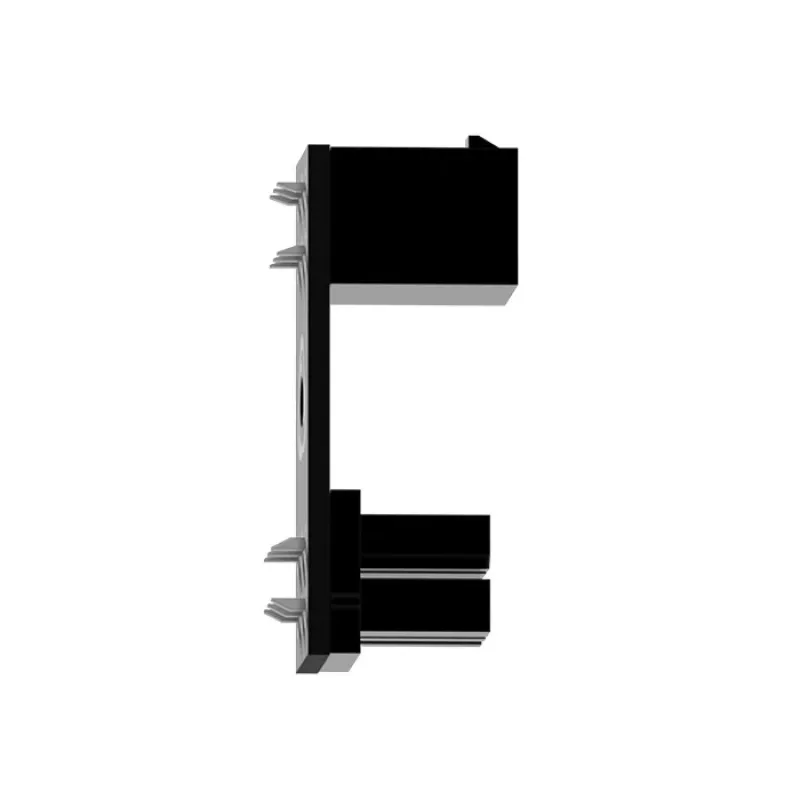

Adattatore PCIe 6‑Pin 180° U+U di Singularity (SC-A-PCIE6-UU) — adattatore angolare 6‑pin PCI Express

Right-angle 6-pin PCI Express adapter by Singularity, configured as U+U with a 180° orientation. This adapter reorients a standard 6-pin PCIe power connector to a low-profile, reversed position, allowing a power cable to exit parallel to the PCB or to be routed in the opposite direction. It is intended for use where space is limited or cable routing must be adjusted for compact PC builds and tight-clearance installations.

Advantages

The adapter provides a reliable mechanical and electrical interface while changing the connector orientation without modifying cables or devices. Its right-angle 180° design reduces strain on the cable and connector in confined spaces and enables cleaner cable management behind graphics cards or near power-hungry PCIe devices. The compact form factor helps maintain airflow and spatial efficiency inside small form-factor cases.

Suitable for

• Compact or small form-factor PC builds where clearance is limited
• Cable routing behind or alongside graphics cards in tight layouts
• Custom cable-management setups that require a reversed connector orientation

Key specifications

• Connector type: 6-pin PCI Express (PCIe) to 6-pin PCIe, right-angle 180° orientation
• Configuration: U+U (both ends same orientation, reversed relative to each other)
• Intended use: Power connection for PCIe graphics cards and other PCIe devices
• Form factor: Low-profile right-angle adapter for tight-clearance installations
• Compatibility: Standard 6-pin PCIe power cables and ports

How to use

Disconnect power to the system before installing the adapter. Align the adapter with the 6-pin PCIe power plug from the power supply and the 6-pin PCIe inlet on the device, then firmly insert each end until it seats fully. Ensure the connector latch engages where applicable and verify that the adapter does not obstruct nearby components. Reconnect power and check that the connected device receives power and functions normally. If resistance or misalignment is felt, remove and re-seat to avoid damaging pins or housings.

Recommendations

Use this adapter in conjunction with standard 6-pin PCIe power cables and avoid placing excessive bending stress at the connector interface. Verify connector polarity and secure routing to prevent contact with moving parts or hot surfaces. Do not use if pins or housings appear damaged; replace the adapter to maintain a safe power connection.
