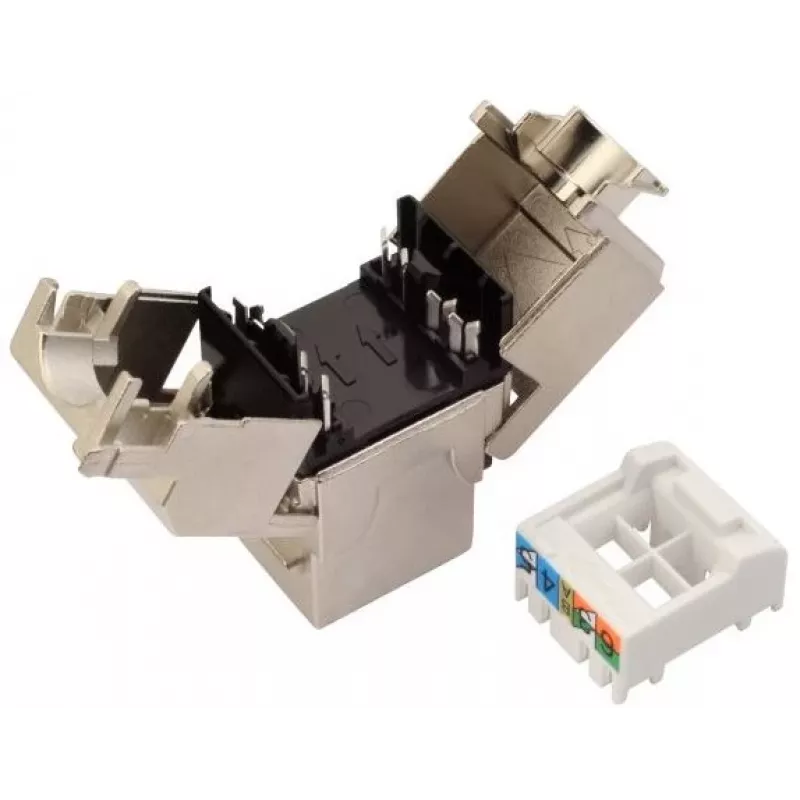

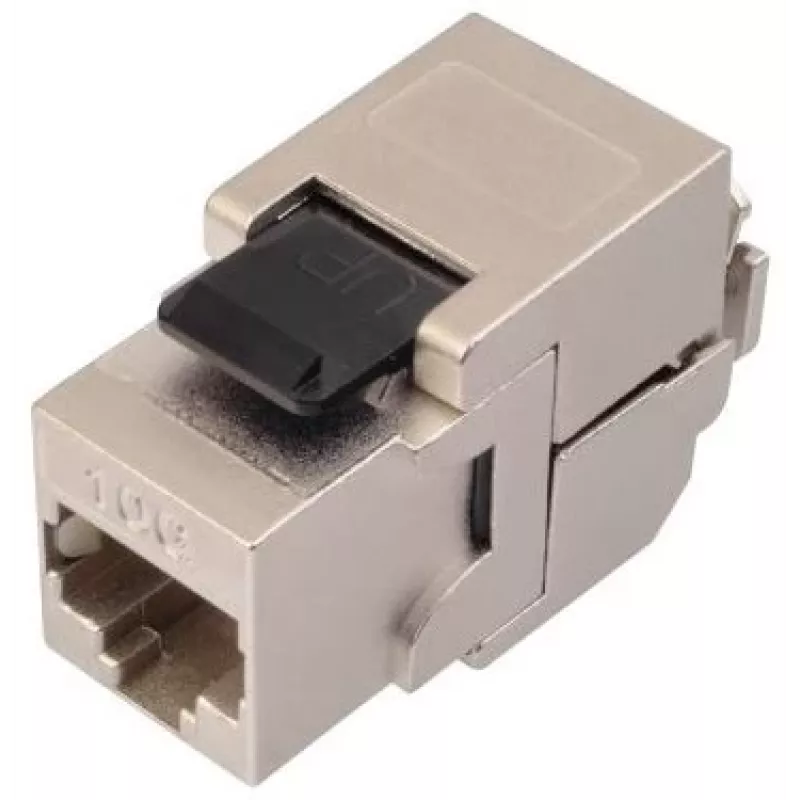

Solarix Cat.6A STP RJ45 keystone jack tool-less nero SXKJ-10G-STP-BK-SA

The Solarix SXKJ-10G-STP-BK-SA is a high-performance Cat.6A STP Keystone Jack designed for tool-less termination, ensuring fast and reliable network installations. This shielded keystone module supports 10 Gigabit Ethernet over twisted pair copper cabling, making it ideal for demanding data center, enterprise, and smart home environments. Its robust die-cast metal housing provides excellent EMI/RFI protection, while the gold-plated contacts guarantee optimal conductivity and durability.

Advantages

Tool-less IDC termination saves installation time and eliminates the need for a punch-down tool. The shielded design minimizes crosstalk and external interference, ensuring stable high-speed data transmission. Compatible with standard keystone panels, faceplates, and surface mount boxes, it offers versatile deployment options.

Suitable for

• Data centers requiring high-density, high-speed cabling
• Enterprise networks upgrading to 10GBASE-T
• Smart home and office structured cabling
• Industrial environments where shielding is critical

Key specifications

• Product Type: Keystone Jack
• Category: Cat.6A (Class EA)
• Shielding: STP (Shielded Twisted Pair)
• Connector Type: RJ45 (8P8C)
• Termination Type: Tool-less IDC
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• Wiring Standard: T568A/B (Color-coded)
• Housing Material: Die-cast Metal
• Contact Plating: Gold (50µm)
• Compatibility: Standard Keystone panels, faceplates, and surface mount boxes
• Wire Gauge Compatibility: 22-26 AWG Solid or Stranded
• Color: Black
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, IEEE 802.3an
• Operating Temperature: -10°C to +60°C
• Insertion Cycles: >750
• IDC Re-terminations: >200

Recommendations

For optimal performance, pair this keystone jack with Cat.6A STP cabling and compatible shielded patch panels. Ensure proper grounding of the shielding path to maximize EMI protection.
