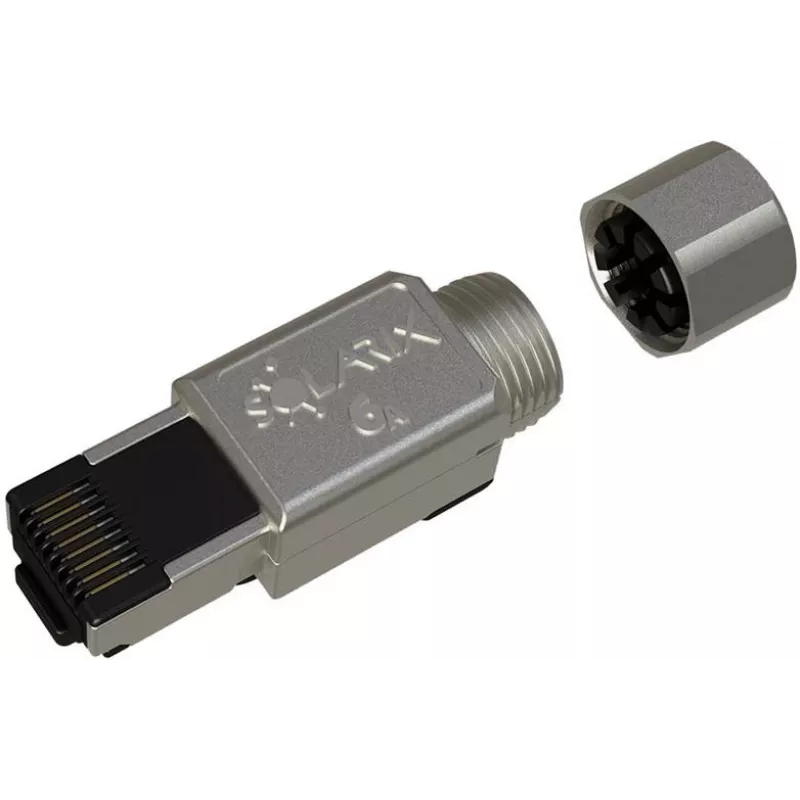

SOLARIX connettore industriale RJ45 Cat.6A STP tool-less, 1 pz., nero/argento

The SOLARIX SXRJ45-6A-STP-BK-S is a high-performance industrial RJ45 connector designed for reliable 10 Gigabit Ethernet connections in demanding environments. This toolless, self-crimping connector supports Cat.6A (Class EA) standards with STP shielding, ensuring excellent signal integrity and noise immunity. Ideal for factory automation, machine building, and data centers, it offers quick and easy field termination without special tools.

Advantages

Toolless termination saves installation time and reduces labor costs. Robust zinc alloy housing provides superior shielding and durability. Supports Power over Ethernet (PoE, PoE+, 4PPoE) for powering devices like cameras and sensors. Reusable up to 5 cycles for flexibility in network changes.

Suitable for

• Industrial Ethernet networks
• Factory automation and control systems
• Data center cabling
• Security and surveillance systems
• Building automation

Key specifications

• Connector Type: RJ45 (8P8C)
• Category: Cat.6A (Class EA)
• Shielding: STP (Shielded Twisted Pair)
• Termination Method: Toolless / Self-crimping
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wire Gauge Compatibility: 22-26 AWG (Solid and Stranded)
• Contact Plating: Gold, 50µm
• Housing Material: Zinc Alloy (shielding), Polycarbonate (body)
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE/PoE++)
• Operating Temperature: -10°C to +60°C
• Reusability: Up to 5 cycles
• Insertion Cycles: >750
• Color: Silver / Black
• Cable Outer Diameter Compatibility: 6.0 - 9.0 mm
• Insulation Resistance: >500 MΩ
• Dielectric Strength: 1000 V AC RMS, 60 Hz, 1 min
• Packaging Quantity: 1 piece

Recommendations

For optimal performance, use with Cat.6A STP cable and ensure proper grounding of the connector shield. Suitable for both solid and stranded conductors. Always follow local installation standards.
