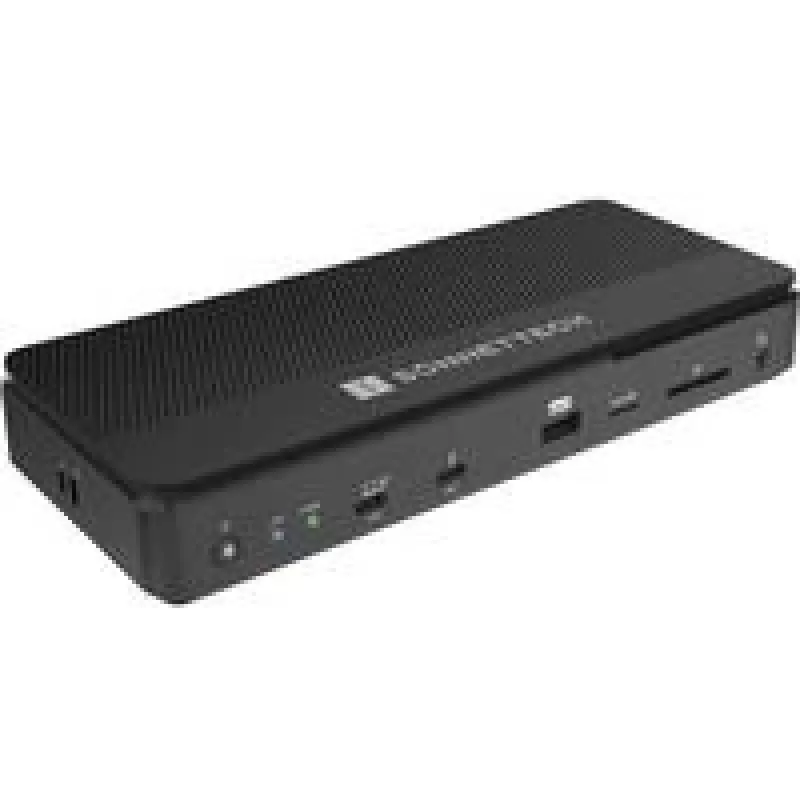

Sonnet Echo 13 Thunderbolt 5 SSD Dock Cablato Nero 140W Power Delivery

Sonnet Echo 13 Thunderbolt 5 SSD Dock is a wired Thunderbolt 5 docking station that combines high-performance internal NVMe SSD storage with extensive connectivity. Compatible with Mac, Windows, Chromebook, and iPad Pro, it offers up to 6000 MB/s internal SSD performance on Thunderbolt 5 hosts (up to 3400 MB/s on Thunderbolt 4/3), four Thunderbolt 5 ports, three front/back USB 3.2 Gen 2 Type-A ports, one additional USB 3.2 Gen 1 Type-A port, SD and microSD card slots, a 2.5Gb Ethernet port, a headphone jack, and up to 140W power delivery for charging laptops.

Advantages

The Echo 13 integrates a pre-installed Kingston M.2 NVMe SSD (available in 1TB, 2TB, or 4TB) to provide high-speed local storage without adding external drives. Its Thunderbolt 5 bandwidth enables up to 6000 MB/s for demanding content-creation workflows, while the 2.5Gb Ethernet port offers faster LAN transfers over existing Cat5e cabling. Multiple Thunderbolt ports, USB-A ports with 10Gbps throughput and bus-power capability, and 140W Power Delivery simplify single-cable docking, peripheral connectivity, and laptop charging.

Suitable for

Key specifications

How to use

Connect the Echo 13 to your computer using the included Thunderbolt 5 cable to enable data, video, Ethernet and power delivery over a single connection. Install or access files on the internal Kingston NVMe SSD as you would any attached drive. Plug monitors into the Thunderbolt ports directly or use compatible adapters for HDMI/DisplayPort. Attach USB devices, SD/microSD cards, and Ethernet cables to expand connectivity. When finished, disconnect the Thunderbolt cable to quickly return the laptop to mobile use.

Recommendations

For maximum internal SSD performance, connect to a Thunderbolt 5 host. Use Cat5e or better cabling with a 2.5Gb-capable switch or NAS to achieve 2.5Gb Ethernet speeds. Verify host OS and hardware compatibility with Thunderbolt and display support per Sonnet technical specifications before deployment.
