Spellafili Gedore 1830864 profondità 75 mm altezza 30 mm peso 43 g

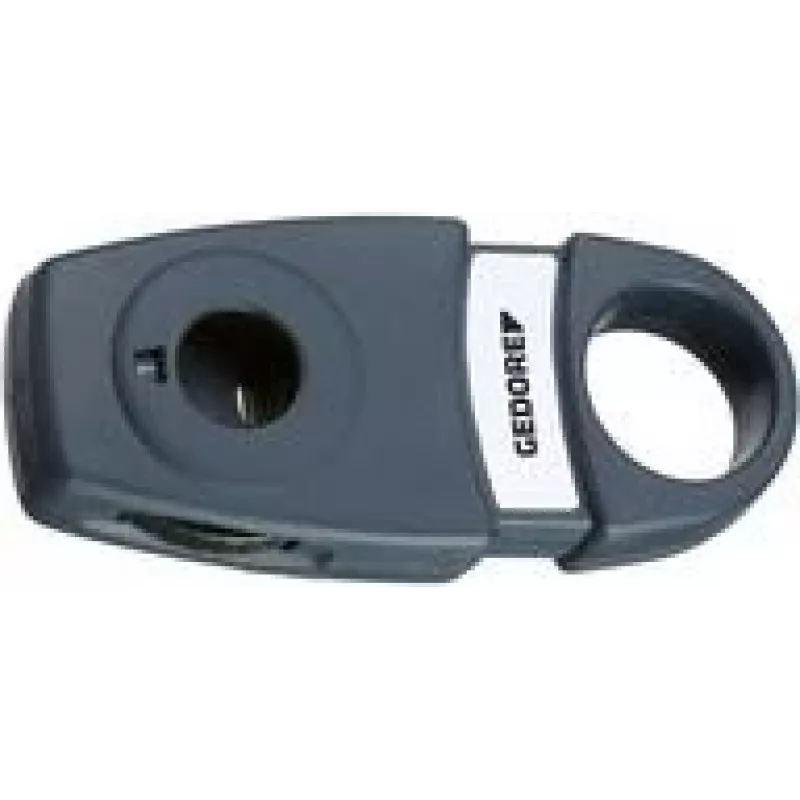

The Gedore 1830864 cable stripper is a compact, pocket-sized tool designed for precise and safe cable stripping. With a small footprint (90.5 x 39.5 x 19 mm) and lightweight construction (43 g), it offers an all-round cut and easy handling for a variety of cable types. The tool includes a replaceable blade (E-8148) and a nine-position adjuster wheel for accurate control of cutting depth.

Advantages

Compact and rounded pocket design ensures safe handling and simple storage. Precision adjustment of cutting depth with a 9-position wheel allows consistent stripping results. Replaceable blade extends the tool's service life. Lightweight construction and user-friendly shape make the tool easy to operate for repeated use.

Suitable for

Key specifications

How to use

Select the appropriate cutting depth using the 9-position adjuster wheel according to cable diameter and insulation thickness. Position the cable in the stripper so the blade contacts the insulation, then close or rotate the tool as required to score the insulation. Pull the insulation off the conductor to complete the strip. Replace the blade (E-8148) when cutting performance decreases.

Recommendations

Use the tool only on cables within the specified diameter and insulation limits (2.5–11 mm, insulation up to 1.0 mm). Inspect the replaceable blade regularly and change it when worn. Store the tool in a dry place and keep out of reach of children.
