Splitter di rete Trendnet TPE-104GS nero Power over Ethernet PoE

The TRENDnet TPE-104GS Gigabit PoE Splitter converts a Power over Ethernet (PoE 802.3af) network connection into separate Gigabit data and DC power outputs so you can power non‑PoE devices remotely. The compact black unit requires no separate power adapter and includes 2 mm and 2.5 mm jumper cables to improve compatibility with device power pins. Built‑in mounting points allow flexible installation.

Advantages

The splitter supports Gigabit data throughput while providing selectable DC output voltages (5 V, 7.5 V, 9 V, 12 V) to match a variety of non‑PoE devices. It draws power from the PoE source so no external adapter is needed, and the included jumper cables increase compatibility with different barrel pin sizes. Its small form factor and mounting points simplify placement in constrained or remote locations.

Suitable for

• Powering non‑PoE IP cameras from a PoE network
• Supplying power and data to access points or wireless bridges without local power
• Connecting other low‑voltage networked devices that require 5–12 V DC

Key specifications

• Model: TRENDnet TPE-104GS
• PoE standard: IEEE 802.3af compatible
• Ethernet: Gigabit (RJ‑45)
• Output voltages: selectable 5 V / 7.5 V / 9 V / 12 V
• Maximum output current: up to 2 A at 5 V (manufacturer specification)
• Included accessories: 2 mm and 2.5 mm jumper cables
• Dimensions: 70 × 45 × 25 mm
• Color: Black
• Certifications: CE, FCC

How to use

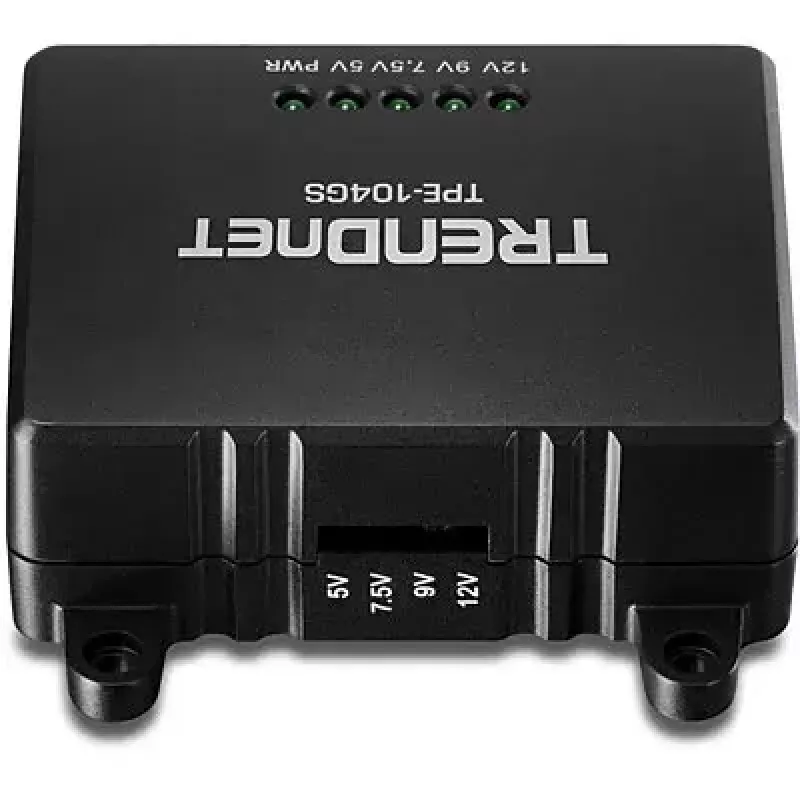

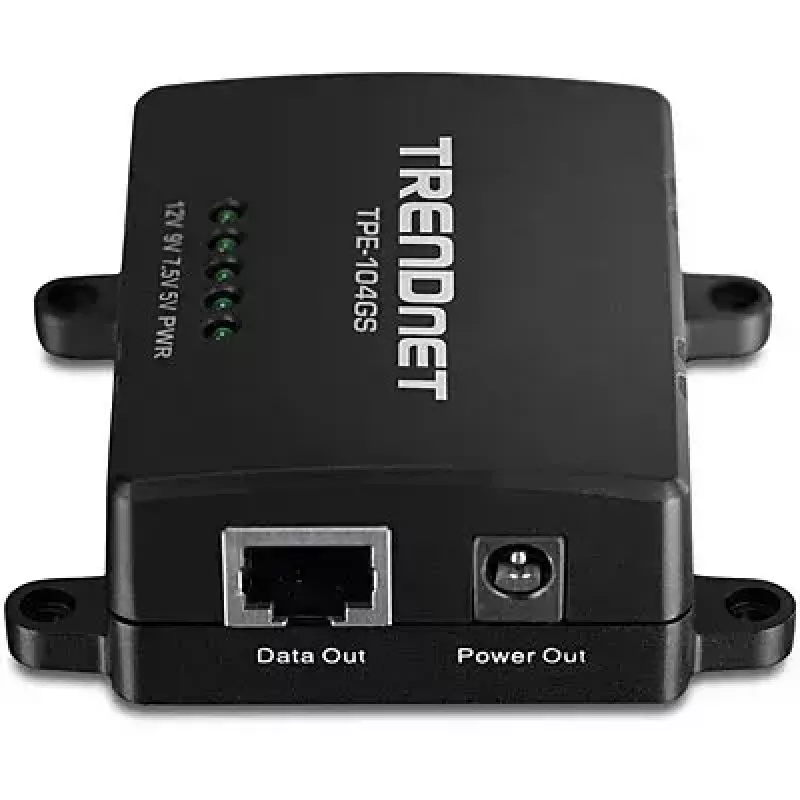

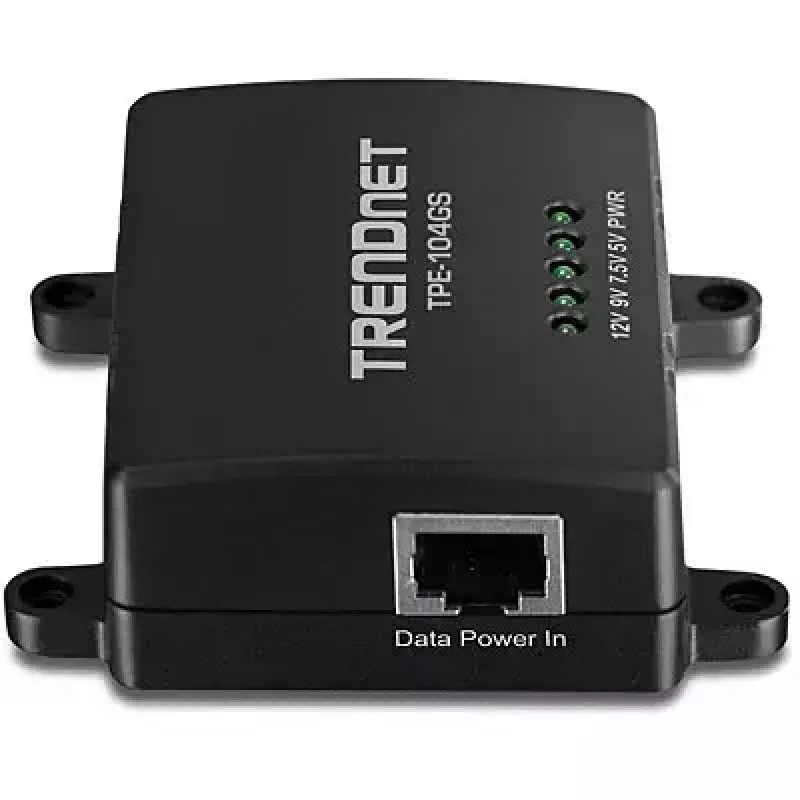

Connect the PoE Ethernet cable from a PoE switch or injector to the splitter’s PoE input. Use an Ethernet cable from the splitter’s data output to the non‑PoE device for network connectivity. Set the toggle switch to the required output voltage (5 V, 7.5 V, 9 V or 12 V) that matches the device's power needs, and attach the appropriate jumper cable (2 mm or 2.5 mm) if required to align the power pin. No external power adapter is necessary, as the splitter is powered by the PoE connection.

Recommendations

Verify the target device’s voltage and current requirements before selecting the output voltage. Ensure the PoE source can supply sufficient power for both the splitter and the connected device. Mount the splitter in a dry, ventilated location and secure it using the built‑in mounting points.
