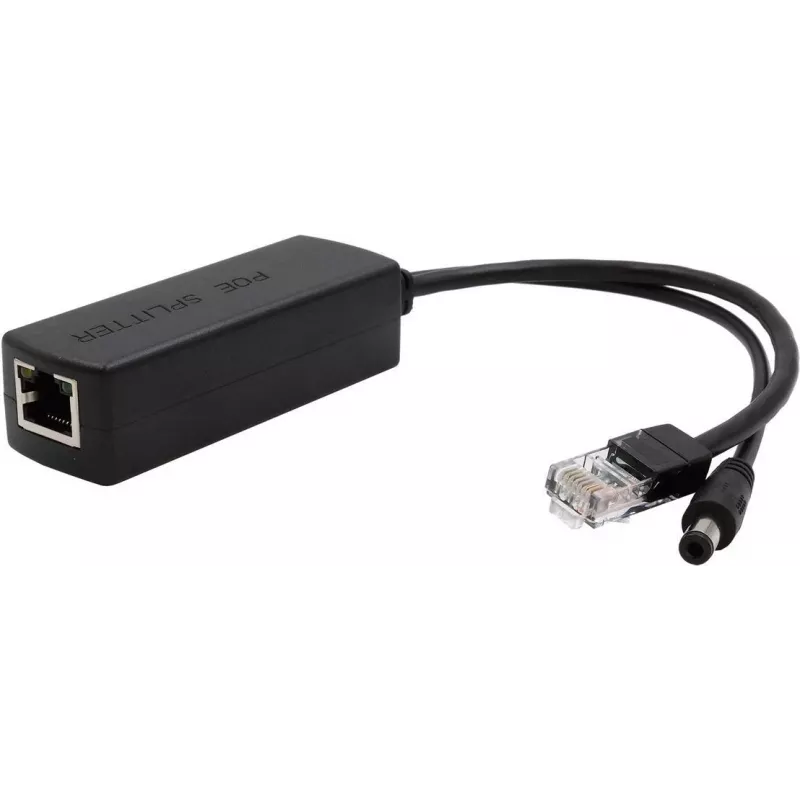

Splitter Ethernet PoE+ Exsys EX-60320 10/100Mbps 12V DC 2A

Exsys EX-60320 is an Ethernet PoE+ splitter that separates data and power from a single Power over Ethernet (PoE+) connection and provides a 12 V DC output at 2 A while passing 10/100 Mbps network traffic. The device enables use of non‑PoE equipment such as IP cameras, wireless access points or network appliances in locations without a local power outlet by extracting DC power from the network cable and delivering it to the powered device. Its compact inline form factor simplifies installation and reduces the need for separate power cabling.

Advantages

The splitter supports PoE+ input and delivers stable 12 V DC with up to 2 A current, allowing reliable operation of many low‑power network devices. With 10/100 Mbps data throughput it maintains standard Fast Ethernet connectivity while isolating power and data for the attached device. The compact, passive design requires minimal space and can be mounted near the powered device, reducing cable clutter and enabling centralised power management for multiple field installations.

Suitable for

• IP cameras that require 12 V DC and draw up to 2 A
• Wireless access points and small network devices without native PoE support
• Remote installations where AC mains power is unavailable or inconvenient
• Replacement of separate power adapters to simplify cabling and maintenance

Key specifications

• PoE input type: PoE+ (Power over Ethernet Plus)
• Ethernet speed: 10/100 Mbps (Fast Ethernet)
• DC output voltage: 12 V
• DC output current: 2 A
• Function: separates power and data from PoE+ to feed non‑PoE devices
• Form factor: compact inline splitter for mounting near the powered device

How to use

Connect the PoE+ powered Ethernet cable from a PoE+ switch or injector to the splitter's PoE input. Attach the splitter's Ethernet output to the data port of the non‑PoE device to maintain 10/100 Mbps network connectivity. Use the 12 V DC output to power the device, ensuring the device's power input accepts 12 V and requires no more than 2 A. Verify connections and power source before powering the system, and route cables to avoid strain on connectors.

Recommendations

Use with a PoE+ capable switch or injector that can supply sufficient power budget. Confirm that the powered device is compatible with a 12 V DC supply and does not exceed the 2 A current limit. For installations in exposed or outdoor locations, house the splitter and connections in a suitable weatherproof enclosure and follow local electrical and network installation standards.
