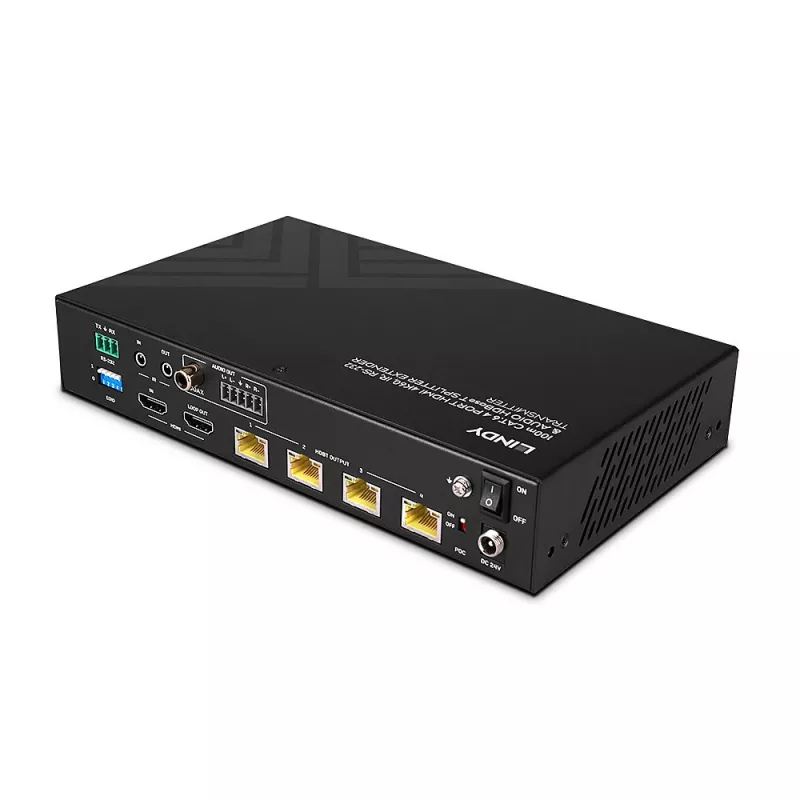

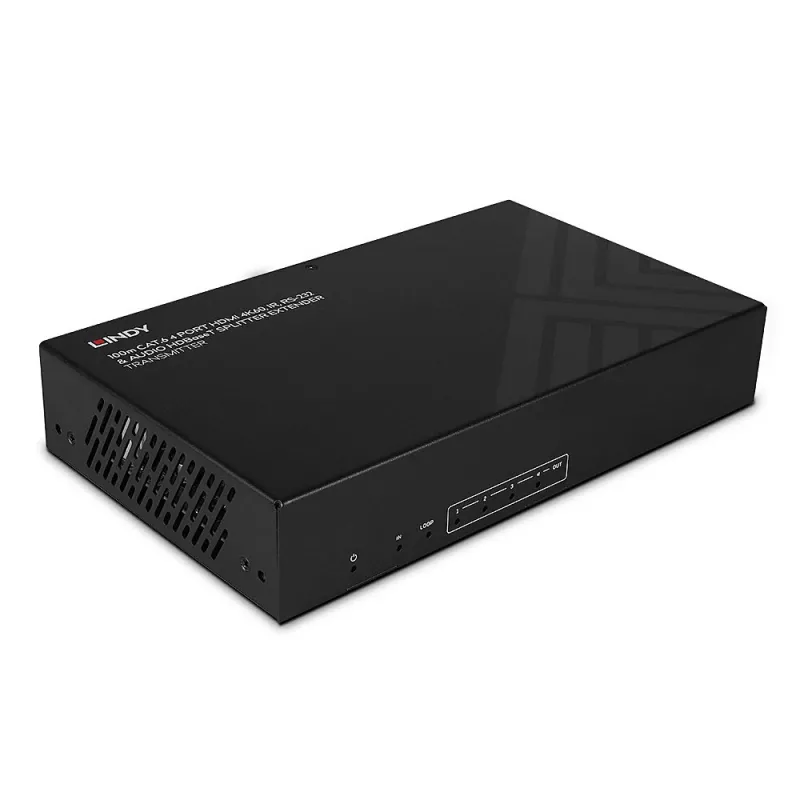

Splitter extender HDMI HDBT Lindy 100m Cat.6 4 porte 4K60

The Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender extends a single HDMI source to up to four HDBaseT receivers over Cat.6 (or better) cable runs up to 100 m. Designed for Pro AV and digital signage, it supports resolutions up to 4K60 (including HDR) and 1080p, offers an HDMI loop-out for local monitoring, and features metal housing for reliable installation. Receivers are not included; use compatible HDBaseT receivers that support the required features.

Advantages

This HDBaseT splitter extender delivers long-distance HDMI distribution without significant signal degradation, supports HDR and 4K60 content, and provides integrated features such as digital and analog de‑embedded audio, IR and RS‑232 control pass-through, and flexible EDID management. PoC (Power over Cable) can be enabled to power compatible receivers from the transmitter, reducing the number of power supplies required.

Suitable for

• Professional AV installations in conference rooms
• Digital signage and retail displays
• Educational facilities and lecture halls
• Event and exhibition immersive displays

Key specifications

• Maximum resolution: 3840 x 2160 (4K) at 60 Hz, HDR supported
• Transmission medium: Cat.6 or better up to 100 m
• Ports: HDMI loop-out plus 4 HDBaseT outputs (receivers not included)
• Audio: Digital and analog de-embedded audio supported
• Control: IR and RS-232 pass-through
• Power: PoC (Power over Cable) switchable
• Construction: Robust metal housing, colour: Black
• Weight: 1.395 kg

How to use

Connect the HDMI source to the transmitter unit input, connect Cat.6 (or better) cables from the transmitter HDBaseT outputs to each HDBaseT receiver up to 100 m away, and connect an HDMI display to the transmitter HDMI loop-out if local monitoring is required. Configure EDID mode as needed for source/display compatibility and enable PoC if your receivers support being powered from the transmitter. Ensure each receiver is compatible with the splitter extender features you intend to use.

Recommendations

Use high-quality Cat.6 or higher-rated cables and compatible HDBaseT receivers. Verify receiver support for features such as PoC, de-embedded audio, IR and RS-232 before installation. Place the unit in a ventilated location and follow local grounding and cabling best practices.
