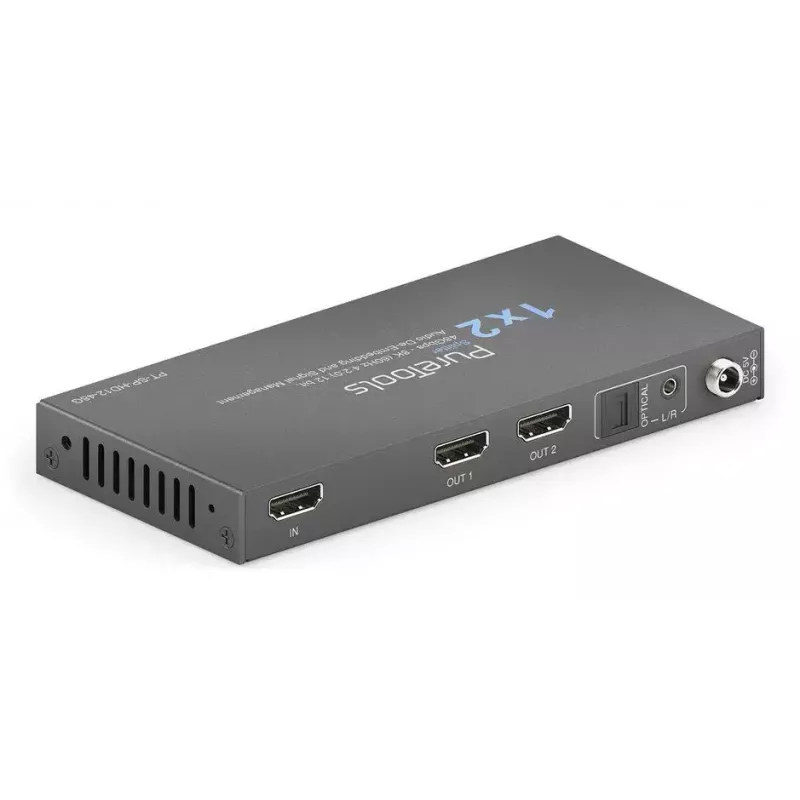

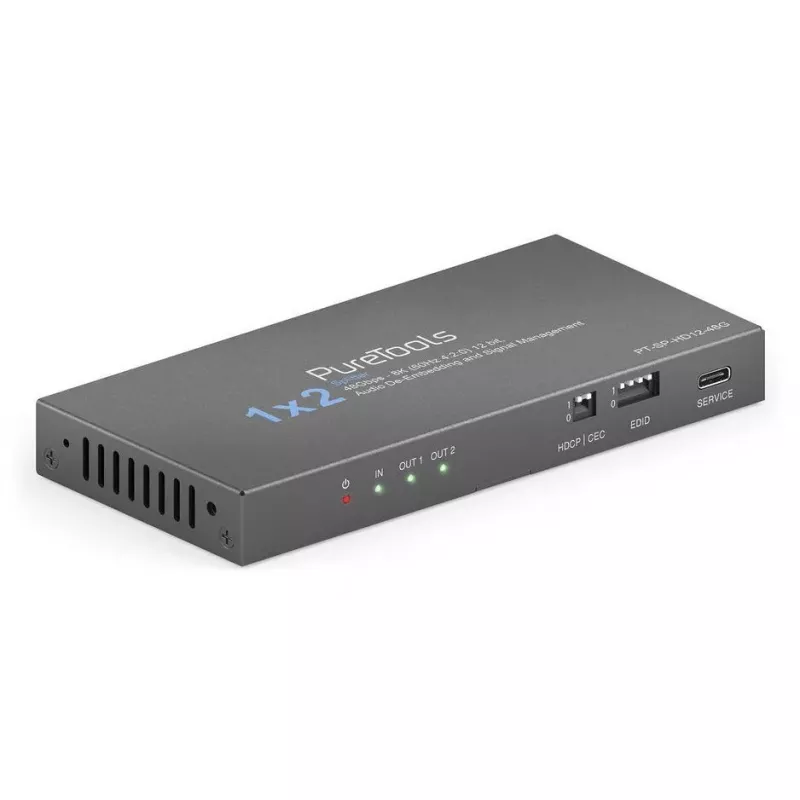

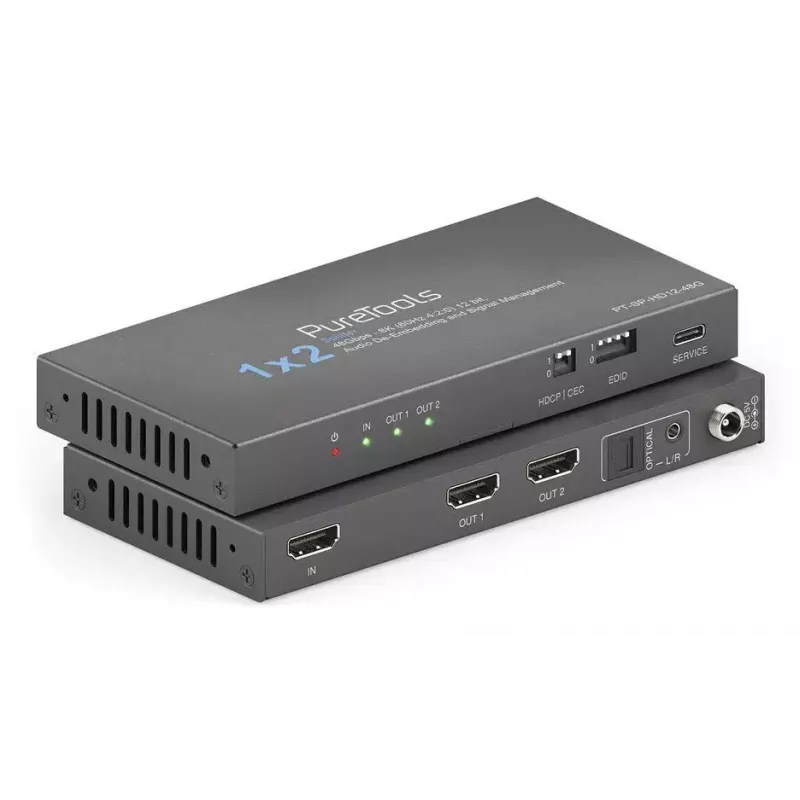

Splitter HDMI PureLink PT-SP-HD12-48G 2x HDMI 7680x4320

The PureLink PT-SP-HD12-48G is an HDMI 2.1 1x2 splitter that distributes one HDMI source to two displays while supporting up to 7680 x 4320 resolution. Built in a robust steel housing with a compact design and low 5 W power consumption, this splitter provides 48Gbps FRL bandwidth, HDCP 2.3 support, and extensive EDID and handshake management to ensure compatibility with a wide range of TVs, monitors and AV receivers.

Advantages

This HDMI splitter delivers ultra-high bandwidth (48Gbps FRL) for up to 8K@60Hz or 4K@120Hz and supports up to 10K using DSC. It supports HDR10+, Dolby Vision, 12-bit color depth and multiple color formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0). The unit includes digital SPDIF and analog 3.5 mm audio de-embedding, a CEC On/Off switch, HDCP 1.4/2.3 handshake management, EDID configuration, and 8K→4K/1080p downscaling for broader display compatibility. The compact steel enclosure and 5 W power consumption make it suitable for professional and residential installations.

Suitable for

• Home theatres and living-room TVs
• Gaming consoles and high-frame-rate displays
• Professional AV setups and digital signage
• Connecting multiple displays for presentations or events

Key specifications

• Model: PureLink PT-SP-HD12-48G

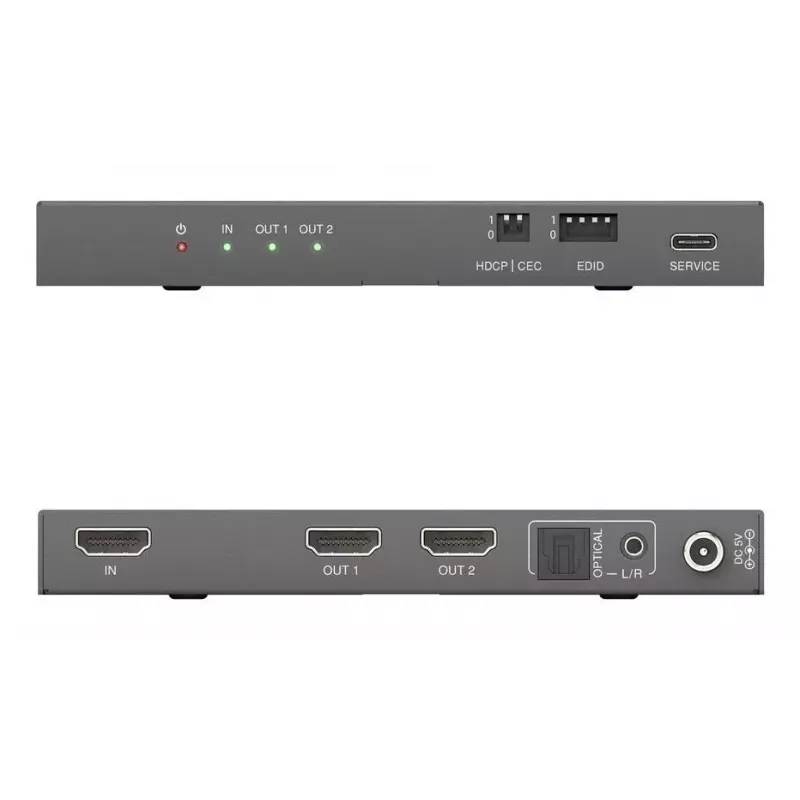

• Input/Output: 1× HDMI input, 2× HDMI outputs
• Maximum resolution: 7680 × 4320 (8K)
• Bandwidth: 48 Gbps (FRL)
• HDR & color: HDR10+, Dolby Vision, 12-bit color, RGB/YCbCr/YUV formats
• HDCP: HDCP 1.4 / 2.3 supported
• Audio: SPDIF digital output and 3.5 mm analog de-embedded audio
• Management: EDID and HDCP handshake management, CEC On/Off switch
• Downscaling: 8K to 4K and 1080p downscale capability
• Construction: Steel housing, colour: black
• Power consumption: 5 W
• Weight: 0.26 kg

How to use

Connect the HDMI source (for example a Blu-ray player, console or PC) to the splitter's HDMI input, then connect up to two displays to the HDMI outputs. Configure EDID and HDCP settings as needed via the device controls to match connected displays. Use the CEC On/Off switch to enable or disable device control over HDMI. For audio extraction, connect an SPDIF cable or a 3.5 mm analog cable to the respective outputs and route to your audio system.

Recommendations

Use high-quality HDMI 2.1 cables rated for 48 Gbps to ensure full performance at 8K/60Hz and 4K/120Hz. When mixing displays with different capabilities, set EDID and downscaling options to the lowest common supported resolution to avoid handshake or compatibility issues.
