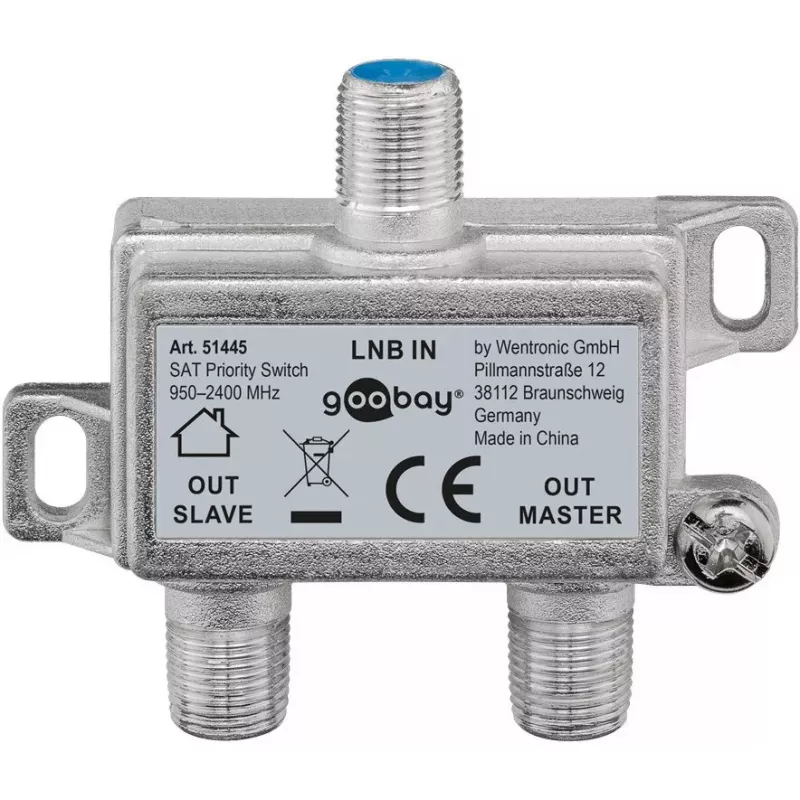

Splitter per cavi Goobay SAT Priority Splitter

The Goobay SAT Priority Splitter distributes one LNB signal to two SAT receivers, allowing two satellite tuners to receive the same feed. It is designed for satellite systems and supports the satellite frequency range to maintain signal integrity between the LNB and connected receivers.

Advantages

This compact cable splitter supports frequencies from 950 to 2400 MHz, fits into tight installations with dimensions of 49.8 × 60.5 × 15.5 mm, and is manufactured to CE and RoHS standards. Its metal housing in silver finish provides durability and reliable signal handling for typical home satellite setups.

Suitable for

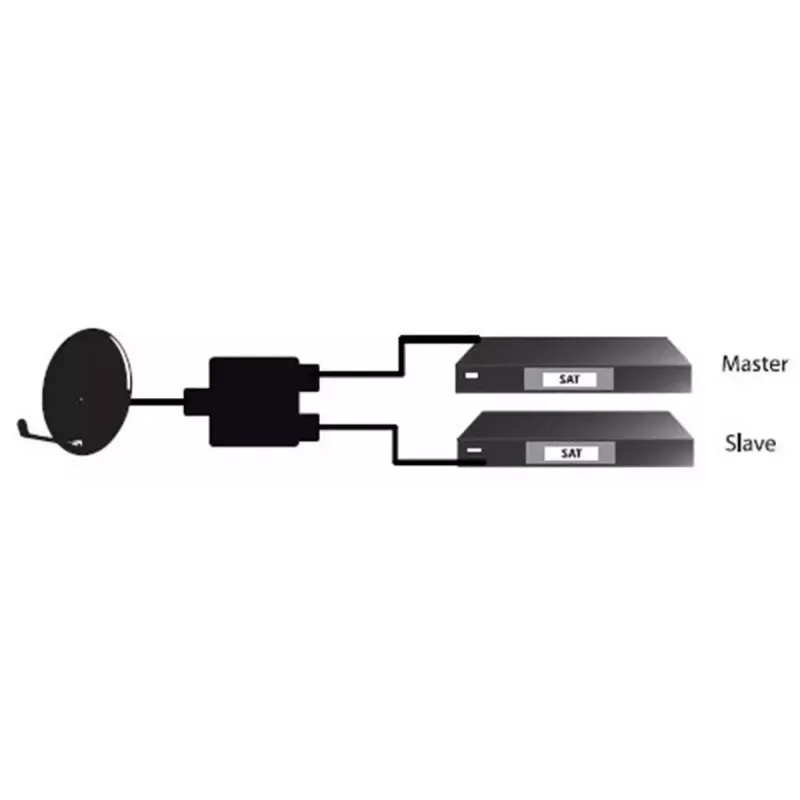

• Connecting one LNB to two satellite receivers
• Home satellite TV installations
• Small multiswitch or distribution setups requiring a simple 1-to-2 split

Key specifications

• Frequency range: 950 - 2400 MHz

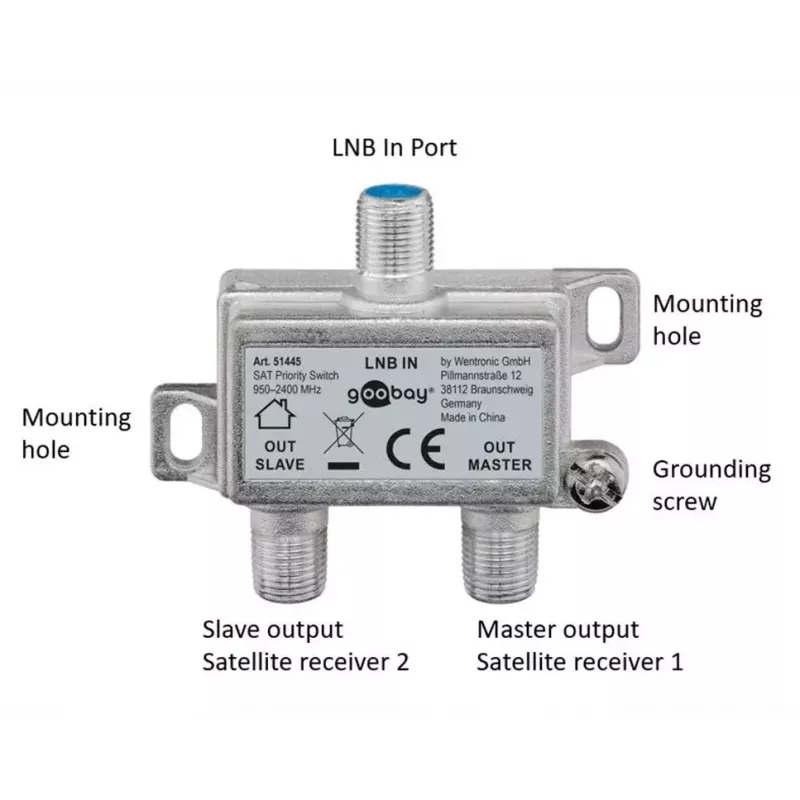

• Inputs/Outputs: 1 LNB input to 2 SAT receiver outputs
• Dimensions: 49.8 × 60.5 × 15.5 mm (W × D × H)
• Color: Silver
• Standards: CE, RoHS
• Brand: WENTRONIC (Goobay)
• MPN: 51445
• EAN: 4040849514456

How to use

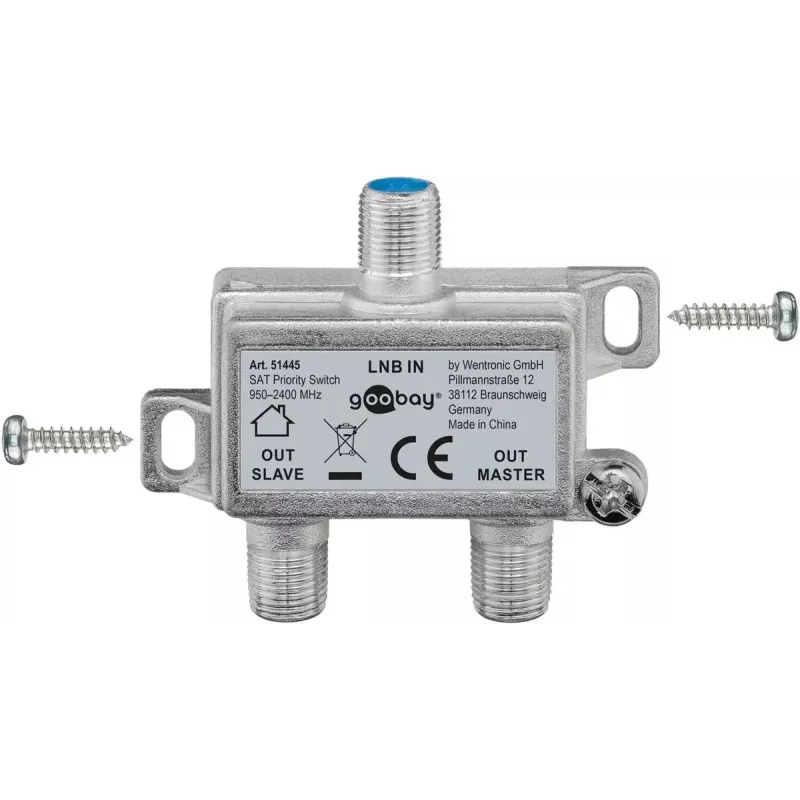

Mount the splitter in a dry, ventilated location and connect the LNB feed to the splitter input using a quality coaxial cable with appropriate F-type connectors. Connect each of the two SAT outputs to the satellite receivers. Ensure connectors are tightened properly but do not overtighten. Power the LNB as required through one of the receivers or an external power injector according to your system configuration.

Recommendations

For optimal performance use low-loss coaxial cables and maintain secure, corrosion-free F-type connections. If both receivers need independent control of the LNB power or DiSEqC commands, verify compatibility with your satellite equipment before installation.
