Splitter per cavi InLine HDMI 2 porte, 4K/60Hz, con cavo di alimentazione USB, 0,5 m

Reliable signal distribution to two displays:Ideal for simultaneously displaying image and audio content on two monitors or projectors.
High compatibility with 4K/60Hz and HDCP 2.2:Supports common resolutions up to 4K@60Hz as well as HDCP 1.4 and 2.2 – for broad device support.
Space-saving thanks to integrated HDMI cable:Input is via a permanently integrated HDMI cable (0.5 m), which reduces the need for additional cables.
Simple plug-and-play setup:No drivers, no configuration – ready for immediate use via a simple HDMI connection.
Versatile:Ideal for presentation and display scenarios in various environments.

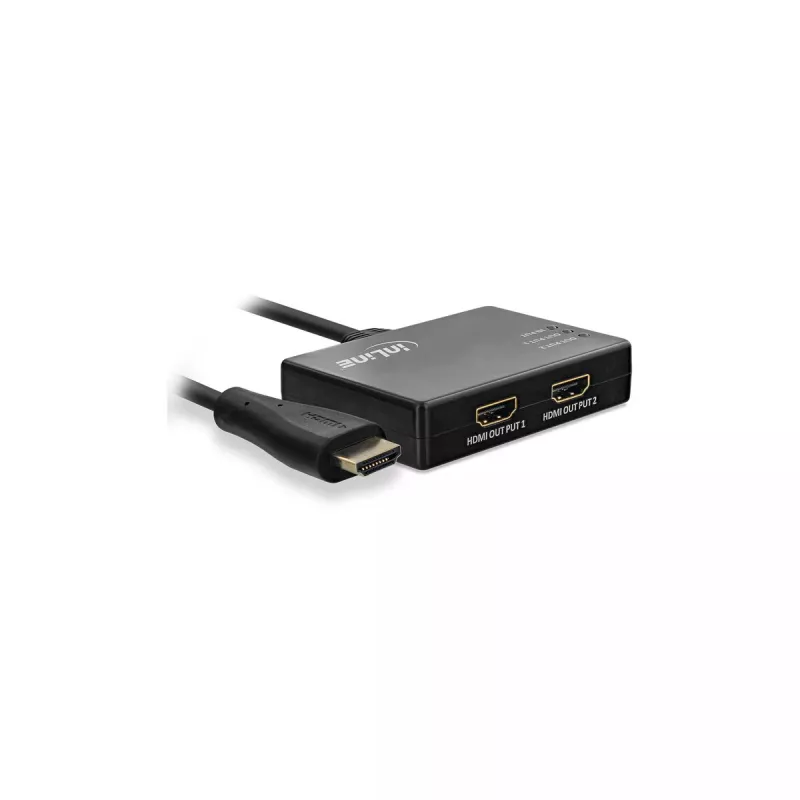

The InLine® HDMI Splitter 2-way is the reliable solution for applications where an HDMI signal needs to be transmitted to two output devices simultaneously. Both image and sound signals are maintained in high quality – up to a resolution of 4K at 60 Hz. The integrated HDMI connector (0.5 m) saves additional cabling and enables particularly quick setup.
Thanks to support for HDCP 1.4 and 2.2 as well as 12-bit Deep Color, the splitter is compatible with a wide range of modern AV components. Whether for video sources such as set-top boxes, Blu-ray players, or professional display and presentation solutions, the device's compact format and robust plastic housing make it suitable for a wide range of applications, from meeting rooms and technical centers to public presentation areas.
Installation is plug-and-play – no configuration or software required. Multiple splitters can also be cascaded without any problems to cover greater distances or connect more devices.

HDCP compliant with HDCP Revision 1.4/2.2 specification
Supports HDTV resolutions up to 4K/60Hz
Supports Deep Color 12-bit
Supports LPCM 7.1CH and DTS-HD Master Audio
Supports Full 3D
Input: 1x HDMI (Type A plug on cable, 0.5m)
Outputs: 2x HDMI (Type A socket)
Output resolutions: 480i~1080p@50/60Hz, 1080p@24/50/60Hz, VGA~UXGA, 2K@60Hz, 4K@60Hz
Housing material: Plastic

InLine Cable Splitter HDMI 2-port, 4K/60Hz, with USB power cable, 0.5m. Video port type: HDMI, Video out: 2x HDMI. Product colour: Black, Maximum resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD. Width: 52 mm, Depth: 81 mm, Height: 20 mm. Package width: 110 mm, Package depth: 130 mm, Package height: 36 mm

How to use

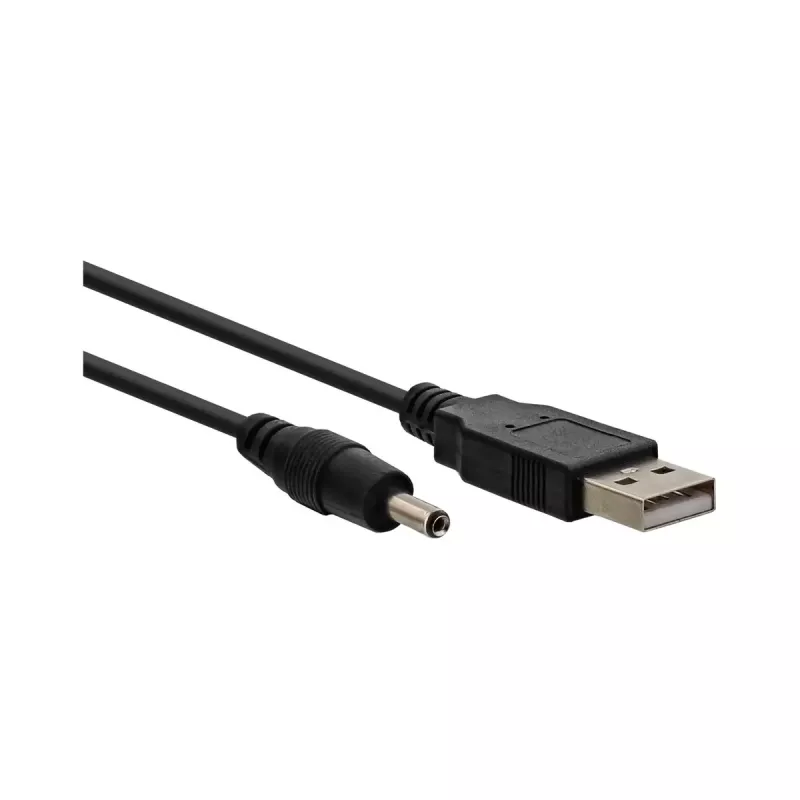

Connect the HDMI source (PC, set-top box, Blu-ray player, etc.) to the splitter's HDMI input. Connect up to two HDMI displays to the splitter's outputs. Attach the supplied USB cable to a USB power source (such as a USB port on a TV, USB power adapter, or powered USB hub) to provide power to the splitter. Turn on the source and displays; the video and audio signal from the source will be duplicated to both connected displays. If required, multiple splitters can be cascaded by routing an output into another splitter input to increase the number of outputs.

Recommendations

For best performance, use high-quality HDMI cables that support 4K/60Hz and ensure the USB power source provides adequate current. When cascading splitters, verify compatibility of resolutions across all connected displays and keep cable lengths within recommended HDMI limits to avoid signal degradation.
