Splitter PoE Fast Ethernet LevelOne, 802.3af PoE, uscita 5-12V DC

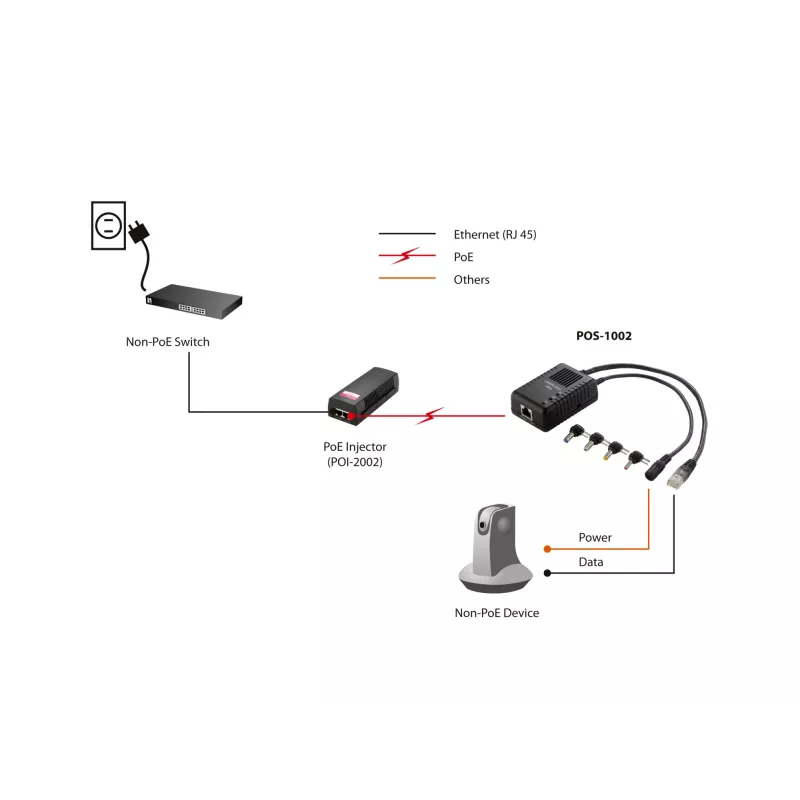

The LevelOne POS-1002 PoE Splitter separates a Power over Ethernet (PoE) signal into distinct power and Fast Ethernet data outputs, enabling non-PoE devices to be powered from a single PoE cable. Compliant with IEEE 802.3af, the splitter offers selectable DC outputs (5V, 9V or 12V) via a DIP switch and provides LED power indicators in a compact housing (55 mm x 80 mm x 31 mm). It is suitable for delivering power and Fast Ethernet connectivity where local power outlets are not available.

Advantages

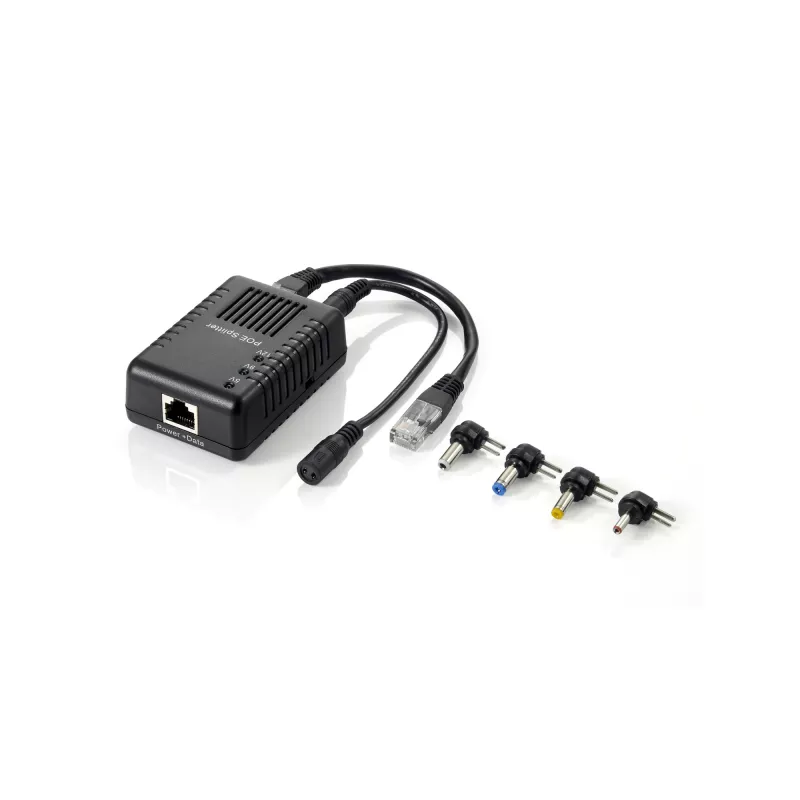

The LevelOne PoE Splitter reduces installation complexity and equipment costs by delivering both power and data over one Ethernet cable and then splitting them for non-PoE devices. It supports multiple output voltages (5V/9V/12V) for compatibility with various network devices, includes short-circuit protection, and has interchangeable power tips. Its lightweight, compact design and LED indicators make it convenient for use in confined or remote locations.

Suitable for

• Access points and wireless routers
• IP/network cameras
• Print servers and media converters
• Other non-PoE networking devices requiring 5V, 9V or 12V DC

Key specifications

• Standard: IEEE 802.3af compliant
• Output voltages: 5V, 9V, 12V (DIP switch selectable)
• Output current: up to 2A at 5V; up to 1.1A at 9V
• Data: Fast Ethernet (100 Mbps)
• Ports: 2 x RJ-45 Ethernet
• Dimensions: 55 mm x 80 mm x 31 mm
• Weight: 0.076 kg
• Colour: Black
• Manufacturer part number (MPN): 0552040
• EAN: 4015867160701

How to use

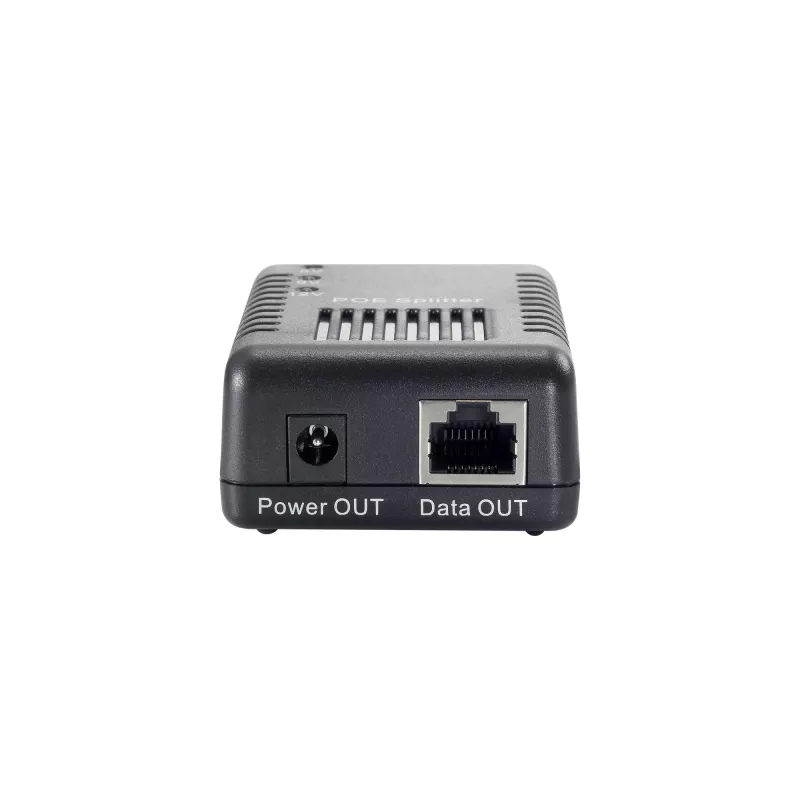

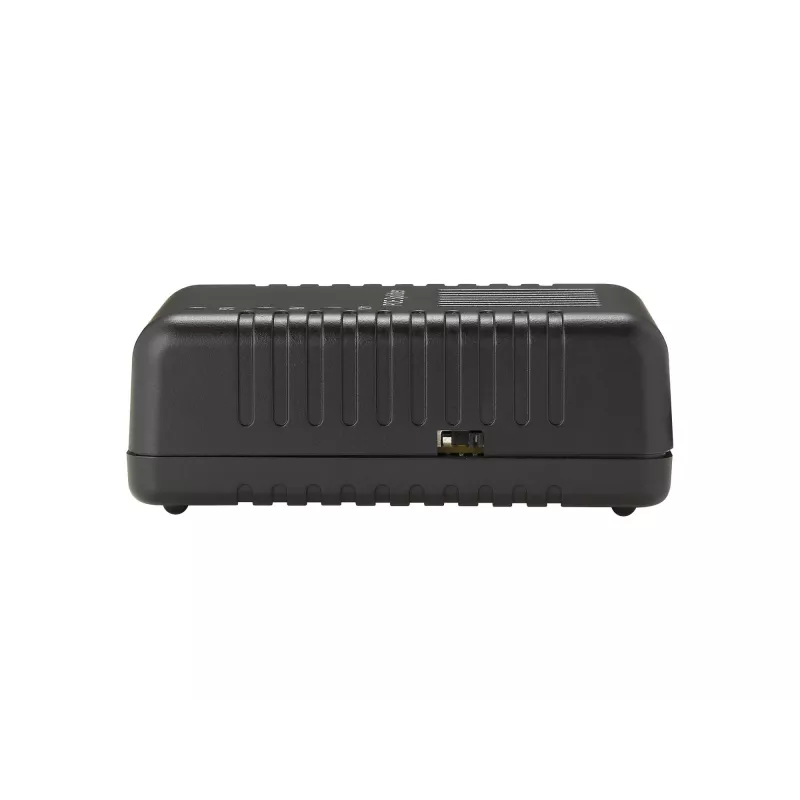

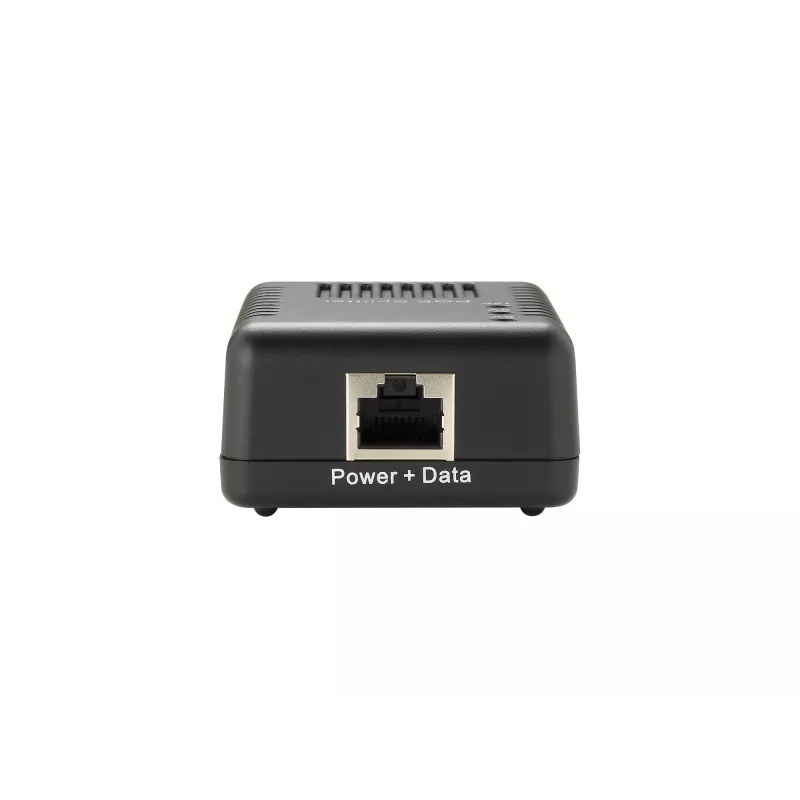

Connect the incoming PoE-enabled Ethernet cable to the splitter's PoE input port. Set the DIP switch to the required output voltage (5V, 9V or 12V) before connecting the provided interchangeable tip to match the target device's DC jack. Plug the splitter's data output into the device's Ethernet port and the DC tip into its power input. Verify the LED power indicator to confirm power delivery and ensure the source PoE injector or PoE switch supports IEEE 802.3af.

Recommendations

Use this PoE splitter with IEEE 802.3af-compliant PoE sources and verify the target device's voltage and current requirements before selecting the DIP switch position. Avoid exceeding the specified current limits and install the splitter in a dry, ventilated location away from direct heat sources.
