Splitter USB Type-C DeLOCK DP Alt Mode a 3 x HDMI MST 4K 60 Hz

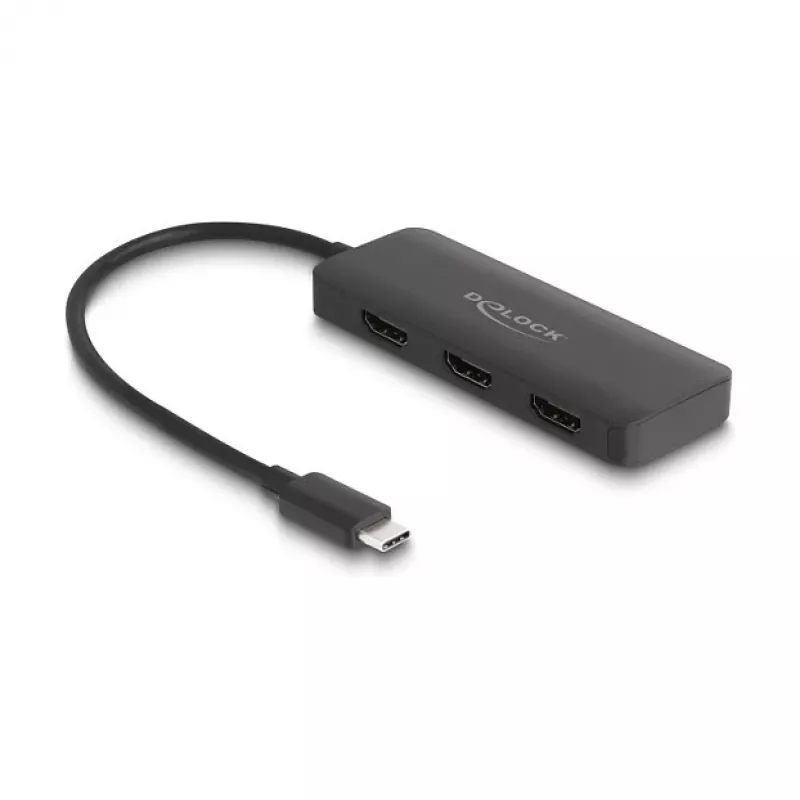

The DeLOCK USB Type-C Splitter DP Alt Mode to 3 x HDMI MST 4K 60 Hz enables connection of three HDMI displays to a computer with a USB-C port that supports DisplayPort alternate mode. It functions as a Multi-Stream Transport (MST) hub and allows all three monitors to be operated simultaneously in extended desktop configurations. The compact black housing measures 36 mm x 98 mm x 12 mm and supports 4K resolution at 60 Hz on each connected display.

Advantages

This splitter uses DisplayPort 1.4 bandwidth to deliver high-resolution output and supports HDCP 1.4/2.2 for protected content. As an MST device it lets Windows control each connected monitor individually or combine them into a single large display. The compact form factor and USB-C single-cable connection simplify multi-monitor setups.

Suitable for

• Office work requiring multiple screens (spreadsheets, documents, email)
• Software development and testing with multi-window layouts
• Creative workflows that benefit from extended desktop space (design, video editing)
• Presentations and control-room or monitoring applications

Key specifications

• Brand: DELOCK
• Model: 88040 (MPN)
• EAN: 4043619880409
• Interface: USB Type-C (DisplayPort Alt Mode)
• Outputs: 3 × HDMI (MST)
• Maximum resolution: 4K (3840 × 2160) at 60 Hz per display
• HDCP: 1.4 / 2.2
• Compatible OS: Windows 10, Windows 11 (MST support required)
• Colour: Black
• Dimensions: 36 mm × 98 mm × 12 mm

How to use

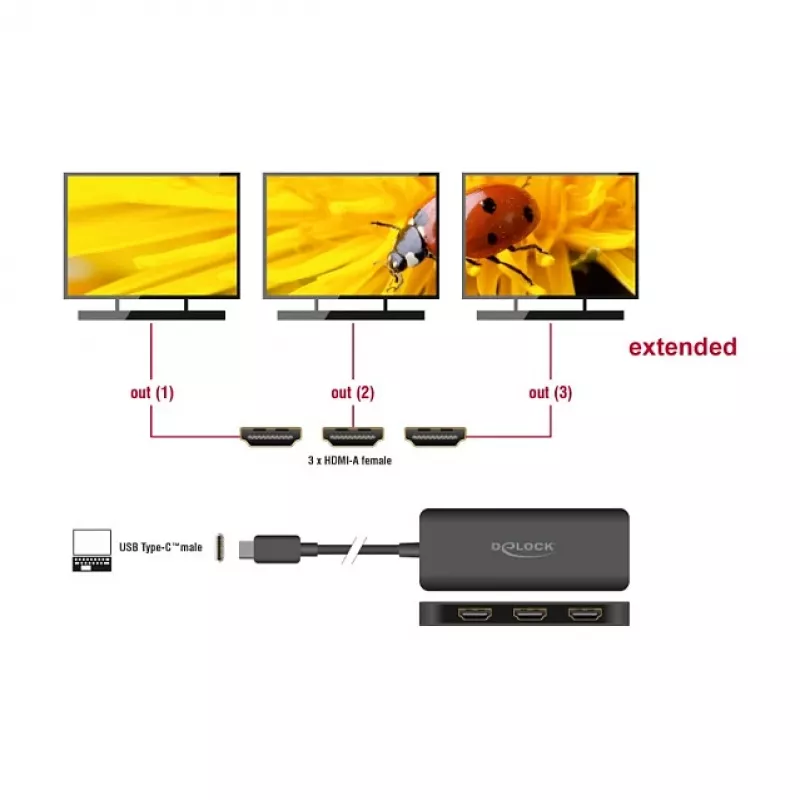

Connect the splitter to a computer USB-C port that supports DisplayPort alternate mode. Attach up to three HDMI cables from the splitter outputs to the monitors. Ensure the host system supports MST and configure display settings in the operating system (for example, in Windows Display Settings) to arrange screens in extended desktop mode or as individual displays. For protected content ensure HDCP is enabled on source and displays.

Recommendations

Use certified high-speed HDMI cables for reliable 4K@60Hz performance and verify that the laptop or PC USB-C port explicitly supports DisplayPort Alt Mode and MST. For optimal results, update graphics drivers and the operating system to the latest versions.
