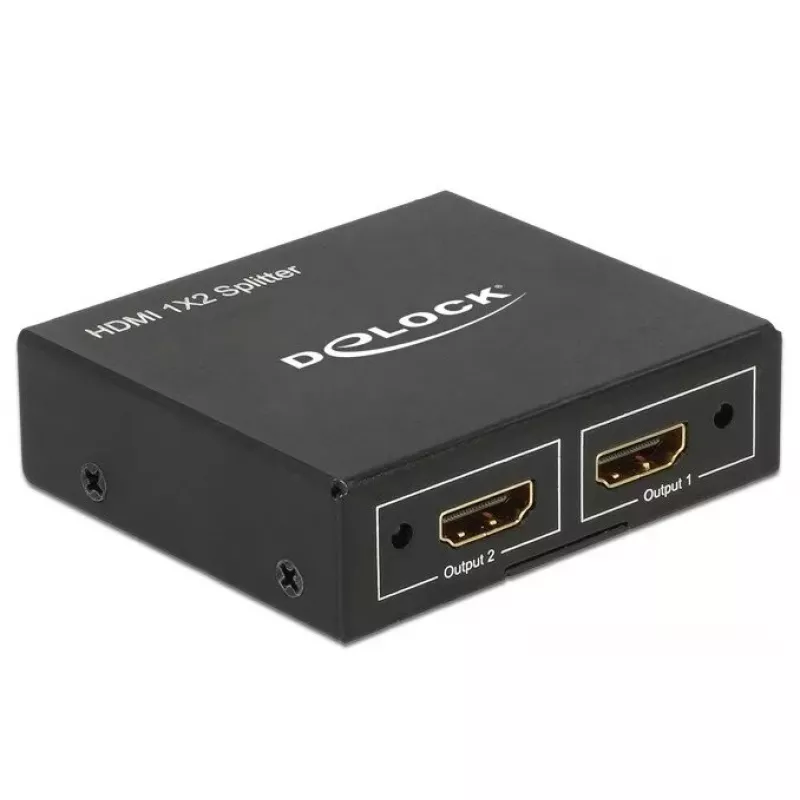

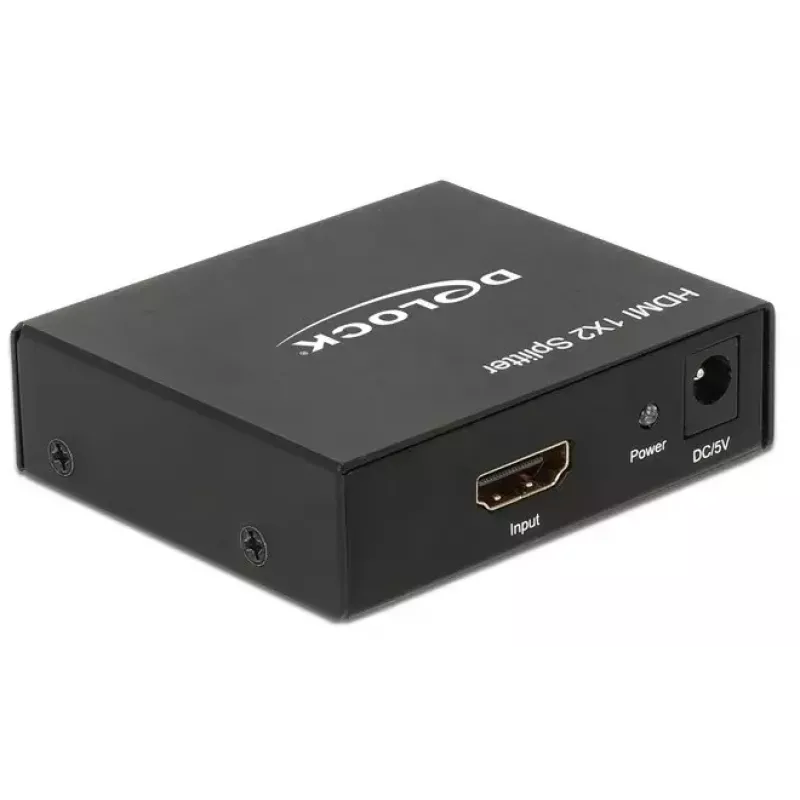

Splitter video HDMI DeLOCK 87701

The DeLOCK 87701 HDMI video splitter receives an HDMI signal from a PC, laptop or other HDMI source and duplicates it to two HDMI displays simultaneously. Housed in a compact metal case (54 x 63 x 18 mm) and finished in black, the splitter supports up to 340 MHz bandwidth and accepts AC input voltages from 100 to 240 V. The device provides three HDMI ports and is designed for simple installation and stable operation in presentation or home-entertainment setups.

Advantages

The DeLOCK 87701 offers a robust metal housing that improves durability while keeping the unit compact. With support for a 340 MHz bandwidth and worldwide AC voltage compatibility (100–240 V), it can be used in many environments. The splitter has three HDMI ports allowing one input and two mirrored outputs, enabling straightforward connection of two HDMI monitors from a single source.

Suitable for

• Business presentations with one computer and two displays
• Retail displays or digital signage showing identical content
• Home entertainment setups where the same video is needed on two TVs or monitors

Key specifications

• Brand: DELOCK
• Model: 87701
• Video port type: HDMI
• Video ports quantity: 3 (1 input, 2 outputs)
• Bandwidth: 340 MHz

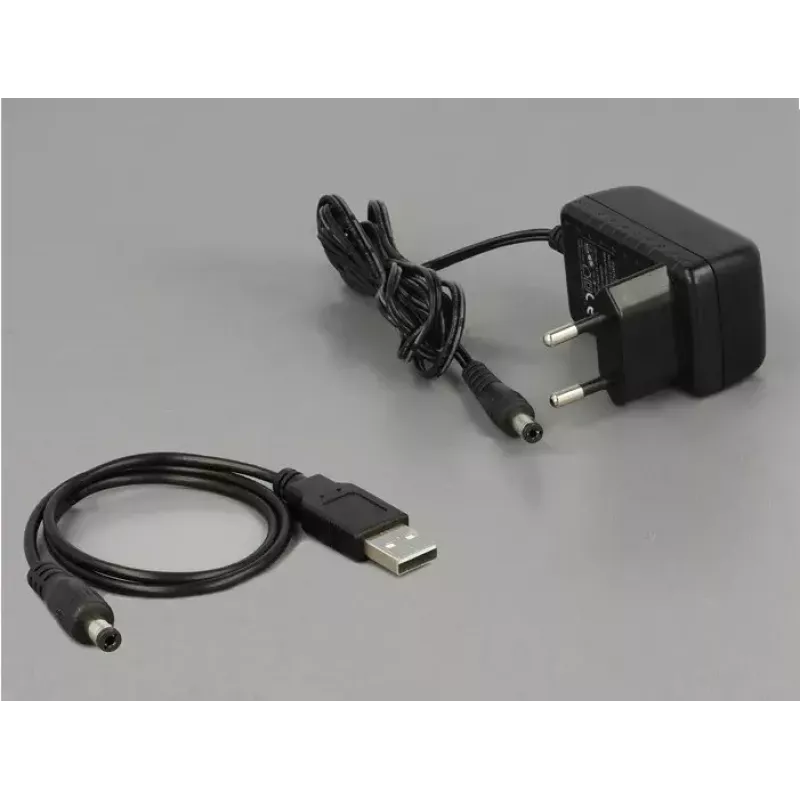

• Input voltage: 100–240 V AC
• Housing: metal, dimensions 54 x 63 x 18 mm
• Colour: Black

How to use

Connect an HDMI source (PC, laptop or other device) to the splitter’s input port, then connect two HDMI displays to the output ports. Apply mains power within the specified 100–240 V AC range and power on the splitter. The unit mirrors the input signal to both connected displays automatically; no additional software is required. If a display does not show a signal, check cable connections and the source device’s output settings.

Recommendations

Use HDMI cables of appropriate quality and length to maintain signal integrity. For reliable operation, connect directly to displays rather than through additional adapters or extenders; ensure your source device is set to an output resolution supported by both monitors.
